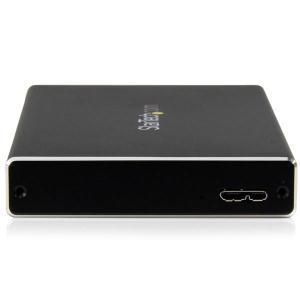

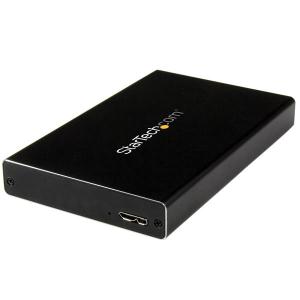

Startech USB 3.0 Universal 2.5in SATA III or IDE Hard Drive Enclosure with UASP - Portable External SSD / HDD UNI251BMU33

Features
uni251bmu33 drive sata bays number
Click to view full size
uni251bmu33 drive sata bays number image 2
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

Startech's MPN:

UNI251BMU33




Turn a 2.5” SATA III or IDE HDD / SSD into an external hard drive that connects to your computer through USB 3.0 with UASP


  • Broad drive compatibility with support for 2.5in IDE and SATA HDD / SSD


  • Optimal performance with SATA III & UASP support


  • Maximum portability with a small footprint and no external power adapter required


The UNI251BMU33 Universal 2.5in Drive Enclosure lets you turn a 2.5in SATA or IDE hard drive (HDD) or solid-state drive (SSD) into a portable USB 3.0 storage solution.


This versatile enclosure offers a simple solution for re-purposing 2.5in HDDs and SSDs that are no longer in use into convenient external storage. Since the enclosure supports either legacy IDE or SATA drives, you can rest assured that you’ll have the correct option on-hand when it’s time to swap another drive in, without having to worry about compatibility.


To get the most from your SATA III drives and ensure maximum performance and speed, the UNI251BMU33 is enhanced with UASP support. When paired with a UASP-enabled host controller, the enclosure delivers transfer speeds up to 70% faster than conventional USB 3.0. See our UASP testing results below for further details.


Perfect for carrying your external drive along with your laptop, the UNI251BMU33 is USB-powered, so you won’t need to carry around an external power adapter. Plus, the enclosure features a small-footprint design, making it a great solution for on-the-go laptop and desktop users who want to add storage to their computer without taking up much space.


The UNI251BMU33 is backed by a StarTech.com 2-year warranty, and free lifetime technical support.


Improved Performance with UASP


UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram


At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram


Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.


The StarTech.com Advantage
  • Broad drive compatibility with support for 2.5in form factor IDE and SATA hard drives (HDD) and solid-state drives (SSD)
  • Time-saving file transfer speeds up to 70% faster than traditional USB 3.0 when used with a UASP-supported host device
  • Maximum portability with a small footprint and USB power

Applications
  • Turn an unused IDE (PATA) or SATA hard drive into additional external storage
  • Access a variety of different drives
  • Re-purpose an unused SATA or IDE drive as an external hard drive
  • Externally expand the storage capacity of your portable laptop or Ultrabook™ computer

Warranty Information

Warranty
2 Years

Hardware

Bus Type
USB 3.0

Chipset ID
JMicron - JMS330, JMB565

Compatible Drive Types
SATA & IDE

Drive Installation
Fixed

Drive Size
2.5in

Interface
USB 3.0

Number of 2.5 inch bays
1

Number of Drives
1

Performance

Hot Swap Capability
No

Max Drive Capacity
Currently tested with up to 2TB 7200 RPM hard drives

Maximum Data Transfer Rate
5 Gbps

Port Multiplier
No

RAID
No

Type and Rate
USB 3.0 - 5 Gbit/s

SATA III (6 Gbps)

UASP Support
Yes

Connector(s)

Drive Connectors
1 - SATA Data & Power Combo (7+15 pin) Receptacle

1 - IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female

Host Connectors
1 - USB 3.0 Micro-B (10 pin, SuperSpeed) Female

Software

OS Compatibility
OS independent; No software or drivers required

Indicators

LED Indicators
1 - Drive Power / Activity

Power

Power Source
USB-Powered

Environmental

Humidity
0% ~ 90% RH

Operating Temperature
0°C to 60°C (32°F to 140°F)

Storage Temperature
-20°C to 70°C (-4°F to 158°F)

Physical Characteristics

Color
Black

Enclosure Type
Aluminum

Max Drive Height
0.4 in [9.5 mm]

Product Height
0.7 in [17 mm]

Product Length
4.9 in [125 mm]

Product Weight
4.5 oz [128 g]

Product Width
3.1 in [80 mm]

Packaging Information

Shipping (Package) Weight
8.2 oz [232 g]

What's in the Box

Included in Package
1 - USB 3.0 SATA/IDE 2.5” Hard Drive Enclosure

1 - USB 3.0 Y cable

4 - Installation screws

1 - Screw driver

1 - Instruction manual



USB 3.0 Universal 2.5in SATA 3 or IDE Hard Drive Enclosure with UASPPortable External 2.5IN SATA or IDE SSD HDD Enclosure w UASP and SATA 3for optimal perfomrance


Brand Name: StarTech.com
Colour: Black
Drive Interface: IDE
Form Factor: External
Host Interface: USB 3.0
Number of 1.8" Bays: No
Number of 2.5" Bays: 1
Number of 2.5"/3.5" Bays: No
Number of 3.5" Bays: No
Number of 5.25" Bays: No
Number of Total Expansion Bays: 1
Product Type: Drive Enclosure


Basic

Brand Name:
StarTech.com

Colour:
Black

Drive Interface:
IDE

Form Factor:
External

Host Interface:
USB 3.0

Number of 1.8" Bays:
No

Number of 2.5" Bays:
1

Number of 2.5"/3.5" Bays:
No

Number of 3.5" Bays:
No

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
1

Product Type:
Drive Enclosure
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
UNI251BMU33

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
USB 3.0 SATA/IDE 2.5" Hard Drive Enclosure

Product Type:
Drive Enclosure
I/O Expansions

Number of 1.8" Bays:
No

Number of 2.5" Bays:
1

Number of 2.5"/3.5" Bays:
No

Number of 3.5" Bays:
No

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
1
Interfaces/Ports

Drive Interface:
Serial ATA/600

Host Interface:
USB 3.0
Physical Characteristics

Colour:
Black

Depth:
124.5 mm

Form Factor:
External

Height:
78.7 mm

Material:
Aluminium


Weight (Approximate):

150.3 g

Width:
160 mm
