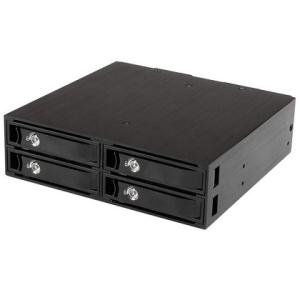

Startech 4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives SATSASBP425

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

SATSASBP425

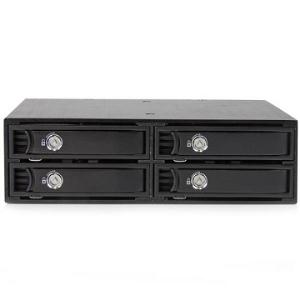

Hot swap with ease by installing four SSDs/HDDs into one 5.25in bay


  • Build your storage system by adding four 2.5in SAS or SATA drives into one 5.25in bay


  • Supports a wide range of SSDs and HDDs from 5-15mm


  • Easy, error free insertion of tray with vertically or horizontally mounted backplane


Now it’s easy to drive share and enhance the storage capabilities of your server or PC. This mobile rack backplane lets you install four 2.5in SATA or SAS solid-state or hard disk drives into a single 5.25in bay and quickly hot swap them between systems. It’s ideal for systems integrators and administrators who are looking for flexible management of their data storage.


Designed for durability and trouble-free use


The mobile rack backplane is engineered to protect your valuable data and provide reliable performance. The aluminum housing is designed for enhanced heat dissipation, while two 40mm fans improve air flow to minimize heat build-up and ensure optimum operating temperature.

The 4-bay backplane can be mounted vertically or horizontally in your server or desktop computer


The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers.You can lock the removable steel trays in place, providing an enhanced level of drive protection.  The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drives and the bay.


Convenient, interchangeable drive trays


Many fast-paced work environments require drives to be removed regularly. Hot swap between systems quickly, without shutting down, with the convenient backplane.

The drive trays are interchangeable with the 4-bay and one-bay backplane


The included drive trays are interchangeable, working with both the 4-bay backplane and the single-bay backplane (SATSASBP125) so you can hot swap between systems for easy file access.


Compatible with a wide range of drives


Designed for versatile use, the backplane supports an extensive range of both SATA or SAS based HDDs and SSDs, from 5 to 15mm in height.


To maximize the performance of your drives, the mobile rack supports SAS II and SATA III performance for transfer speeds up to 6 Gbps when paired with a compatible controller. The backplane also works with your preferred RAID controller or Hyper Duo™ controller to produce a high-performance or redundant storage solution.


The SATSASBP425 backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Supports a wide range of 2.5in SAS or SATA HDD/SSDs from 5-15 mm
  • High-quality metal housing maximizes heat dissipation

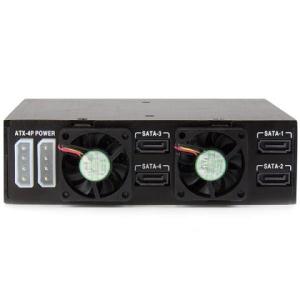

  • Two 40 mm fans help to ensure optimum operating temperature
  • Maximize performance through SAS II and SATA III, with file transfer speeds of up to 6Gbps

Applications
  • Systems integrators and administrators looking for flexible storage management
  • Build your incremental or off-site storage back-up plan by attaching hot-swappable drives to your server or computer
  • Fast-paced work environments where drives need to be replaced or removed regularly

Warranty Information

Warranty
2 Years

Hardware

Compatible Drive Types
SAS & SATA

Drive Installation
Removable

Drive Size
2.5in

Fan Bearing Type
Sleeve Bearing

Fan(s)
Yes

Fans
2 - 40 mm

Interface
SATA

SAS

Key Lock
Yes

Number of 2.5 inch bays
4

Number of Drives
4

Supported Drive Height(s)
5mm

9.5mm

12.5mm

15mm

Performance

Hot Swap Capability
Yes

Insertion Rating
50,000

Max Drive Capacity
Tested with hard drives up to 2TB at 7200 RPM

Maximum Data Transfer Rate
6 Gbps

MTBF
30,000

Noise Level
20 dBA

Port Multiplier
No

Type and Rate
SATA III (6 Gbps)

Connector(s)

Drive Connectors
4 - SATA Data & Power Combo (7+15 pin) Receptacle

Host Connectors
4 - SATA (7 pin, Data) Receptacle

Other Interface(s)
1 - LP4 (4 pin, Molex Large Drive Power) Female

Software

OS Compatibility
OS independent; No software or drivers required

Special Notes / Requirements

Note

Flammability Rating:
UL94 - V0

Indicators

LED Indicators
4 - Drive power and activity LED

1 - Fan activity

Environmental

Humidity
5%~65% RH

Operating Temperature
0°C to 55°C (23°F to 95°F)

Storage Temperature
-20°C to 55°C (-4°F to 131°F)

Physical Characteristics

Color
Black

Enclosure Type
Aluminum and Steel

Max Drive Height
0.6 in [15 mm]

Product Height
1.7 in [42 mm]

Product Length
6 in [151.5 mm]

Product Weight
26.8 oz [760 g]

Product Width
5.7 in [146 mm]

Packaging Information

Shipping (Package) Weight
36.8 oz [1042 g]

What's in the Box

Included in Package
1 - 4-bay SATA/SAS hard drive backplane

2 - drive tray keys

4 - 2.5" drive trays

4 - 18" SATA data cables

2 - SATA to Molex power adapters

16 - drive mounting screws

8 - backplane mounting screws

1 - quick start guide



4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives - Hot Swap SSDs/HDDs from 5-15mm - Supports SAS II & SATA III (6 Gbps) - Lockable Removable trays - 50 000+ Insertion Rating


Brand Name: StarTech.com
Colour: Black
Drive Interface: 6Gb/s SAS
Form Factor: Internal
Host Interface: Serial ATA
Number of 1.8" Bays: No
Number of 2.5" Bays: 4
Number of 2.5"/3.5" Bays: No
Number of 3.5" Bays: No
Number of 5.25" Bays: No
Number of Total Expansion Bays: 4
Product Type: Drive Enclosure


Basic

Brand Name:
StarTech.com

Colour:
Black

Drive Interface:
6Gb/s SAS

Form Factor:
Internal

Host Interface:
Serial ATA

Number of 1.8" Bays:
No

Number of 2.5" Bays:
4

Number of 2.5"/3.5" Bays:
No

Number of 3.5" Bays:
No

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
4

Product Type:
Drive Enclosure
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
SATSASBP425

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives

Product Type:
Drive Enclosure
I/O Expansions

Number of 1.8" Bays:
No

Number of 2.5" Bays:
4

Number of 2.5"/3.5" Bays:
No

Number of 3.5" Bays:
No

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
4
Interfaces/Ports

Drive Interface:
6Gb/s SAS

Host Interface:
Serial ATA
Miscellaneous

Certifications & Standards:
  • CE
  • FCC

Environmentally Friendly:
Yes
Physical Characteristics

Colour:
Black

Cooling Fan:
Yes

Depth:
144.8 mm

Form Factor:
Internal

Height:
43.2 mm

Material:
Aluminium

Steel


Weight (Approximate):

739.9 g

Width:
152.4 mm
