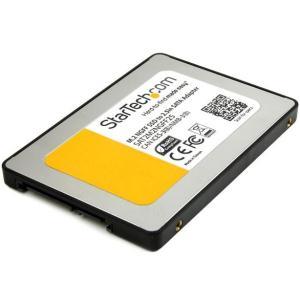

Startech M.2 SSD to 2.5in SATA III Adapter – NGFF Solid State Drive Converter with Protective Housing SAT2M2NGFF25

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

SAT2M2NGFF25




Convert an m.2 NGFF solid state drive into a standard 2.5in form factor 6Gbps SSD


  • Protect your M.2 (NGFF) SSD in any 2.5in application with enclosed housing


  • Add M.2 SSD performance to any computer system by converting M.2 to SATA


  • Broad compatibility with support for the most common SATA M.2 SSDs (2242, 2260, 2280)


Vastly increase system performance by replacing your 2.5” SATA hard drive with an M.2 solid state drive, using the SAT2M2NGFF25 M.2 SSD to SATA adapter.


The M.2 to SATA adapter features an enclosed housing that adds protection to your NGFF (Next Generation Form Factor) SSD. The added protection gives you the peace of mind to confidently use your M.2 drive in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.


Using an M.2 SSD in place of a platter drive better utilizes the full potential of your SATA III controller, by reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps -- an ideal solution for further increasing the performance of a HyperDuo array.


For wide compatibility with all of the common M.2 solid state drives, the SAT2M2NGFF25 supports multiple drive heights including: 2242, 2260, 2280.


The SAT2M2NGFF25 is backed by a StarTech.com 2-year warranty, and lifetime technical support.


The StarTech.com Advantage
  • Added protection for your SSD with enclosed housing
  • Maximize system performance by replacing you 2.5in SATA platter drive with an M.2 SSD
  • Broad compatibility with support for the most common M.2 NGFF SSD heights (2242, 2260, 2280)

Applications
  • Access M.2 drives from an external source, such as a SATA drive enclosure or docking station
  • Retrieve/backup data from an M.2 (NGFF) drive with a standard SATA computer
  • Turn an unused M.2 drive into a regular 2.5in SATA solid state drive
  • Use an M.2 in any 2.5in SATA application

Warranty Information

Warranty

2 Years

Hardware

Compatible Drive Types

M.2 (NGFF, B-Key)

Drive Installation

Fixed

Interface

SATA

Number of Drives

1

Supported Drive Height(s)

2242

2260

2280

Performance

Hot Swap Capability

No

Maximum Data Transfer Rate

6 Gbps

Type and Rate

SATA III (6 Gbps)

Connector(s)

Drive Connectors

1 - M.2 (NGFF, B-Key) Receptacle

Host Connectors

1 - SATA Data & Power Combo (7+15 pin) Receptacle

Software

OS Compatibility

OS independent; No software or drivers required

Environmental

Humidity

5% to 95% RH

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 85°C (14°F to 185°F)

Physical Characteristics

Color

Black

Enclosure Type

Aluminum and Plastic

Product Height

0.3 in [8 mm]

Product Length

3.9 in [98 mm]

Product Weight

1.8 oz [50 g]

Product Width

2.7 in [68 mm]

Packaging Information

Shipping (Package) Weight

0.2 lb [0.1 kg]

What's in the Box

Included in Package

1 - M.2 NGFF SSD to 2.5" SATA Adapter

1 - SSD mounting kit

1 - Housing mounting kit

1 - Mini screw driver

1 - Instruction manual



M.2 SSD to 2.5in SATA III Adapter with Protective Housing - NGFF Solid State Drive to 2.5in SATA Converter w 9.5mm Drive Height for any 2.5in SATA Application - M2 to SATA Adapter


Brand Name: StarTech.com
Product Type: M.2 to SATA Adapter


Basic

Brand Name:

StarTech.com

Product Type:

M.2 to SATA Adapter
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

SAT2M2NGFF25

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

M.2 NGFF SSD to 2.5" SATA Adapter

Product Type:

M.2 to SATA Adapter
Miscellaneous

Additional Information:
  • Interface: SATA
  • Number of Drives: 1
  • Drive Installation: Fixed
  • Drive Connectors: 1 - M.2 (NGFF) Receptacle
  • Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle
  • Maximum Data Transfer Rate: 6 Gbps
  • Type and Rate: SATA III (6 Gbps)

Compatibility:
M.2 Solid State Drives
  • 2242
  • 2260
  • 2280

Environmentally Friendly:

Yes
Physical Characteristics

Colour:

Black

Height:

9.8 mm

Length:

98 mm

Material:

Aluminium

Plastic

Shipping Weight (Approximate):

100 g


Weight (Approximate):

50 g

Width:

68 mm
