Startech Dual 2.5" to 3.5" HDD Bracket for SATA Hard Drives - 2 Drive 2.5" to 3.5" Bracket for Mounting Bay BRACKET25X2

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

BRACKET25X2

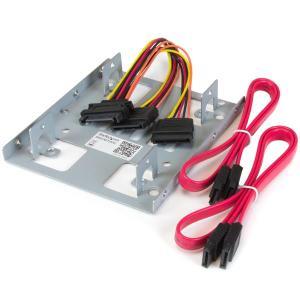

Mount two 2.5in SATA SSDs/HDDs into a single 3.5in drive bay

Mount up to two 2.5in drives into a single 3.5in bay
SATA data and power cabling included
Solid steel construction
Vertical and horizontal drive mounting holes

The BRACKET25X2 Dual hard drive mounting bracket kit lets you install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD.

Maximize the internal mounting space of your computer, by installing two 2.5in hard drives in the same 3.5in bay. The bracket can be used with SATA hard drives and solid states

For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044).

The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support.

SSD drive installation

The StarTech.com Advantage

Maximize internal mounting space, by installing two 2.5in drives into a single 3.5in mounting bay
Improve the performance speed of your desktop computer by adding 2.5in solid state drives into a 3.5in mounting bay
Guaranteed reliability with solid aluminum construction and lifetime StarTech.com warranty

Applications

Add the performance of 2.5in solid state drives to your desktop computer
Install up to two 2.5" SATA hard drives into an unused 3.5" bay in a desktop chassis
Repurpose unused laptop hard drives to work with your desktop computer
Migrate data from a 2.5in laptop drive to your desktop computer

Warranty Information
Warranty	Lifetime
Hardware
Interface	SATA
Physical Characteristics
Enclosure Type	Steel
Product Height	0.9 in [22 mm]
Product Length	4.6 in [116 mm]
Product Weight	5.3 oz [150 g]
Product Width	4 in [102 mm]
Packaging Information
Shipping (Package) Weight	7.4 oz [210 g]
What's in the Box
Included in Package	1 - Dual 2.5" mounting bracket
	1 - Drive mounting screw kit
	4 - Flat screws and washers (bottom drive)
	4 - M3x5mm screws (top drive)
	4 - 6-32 Screws (case mount)
	2 - SATA data cables
	1 - SATA Power Y cable
	1 - quick-start guide

Dual 2.5 SATA Hard Drive to 3.5 Bay Mounting Bracket - 2.5 to 3.5 Hard Drive Mounting Bracket with SATA Power and Data Cabling - HDD/SSD Mounting Bracket for 2.5in/3.5in Drives

Brand Name: StarTech.com

Compatible Drive Bay Width: 3.5"

Drive Interface: Serial ATA

Form Factor: Internal

Number of 1.8" Bays: No

Number of 2.5" Bays: 2

Number of 2.5"/3.5" Bays: No

Number of 3.5" Bays: No

Number of 5.25" Bays: No

Number of Total Expansion Bays: 2

Product Type: Drive Bay Adapter

Wireless LAN: No

Basic
Brand Name:	StarTech.com
Compatible Drive Bay Width:	3.5"
Drive Interface:	Serial ATA
Form Factor:	Internal
Number of 1.8" Bays:	No
Number of 2.5" Bays:	2
Number of 2.5"/3.5" Bays:	No
Number of 3.5" Bays:	No
Number of 5.25" Bays:	No
Number of Total Expansion Bays:	2
Product Type:	Drive Bay Adapter
Wireless LAN:	No

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	BRACKET25X2
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
Product Type:	Drive Bay Adapter

I/O Expansions
Number of 1.8" Bays:	No
Number of 2.5" Bays:	2
Number of 2.5"/3.5" Bays:	No
Number of 3.5" Bays:	No
Number of 5.25" Bays:	No
Number of Total Expansion Bays:	2

Interfaces/Ports
Drive Interface:	Serial ATA

Miscellaneous
Environmentally Friendly:	Yes

Network & Communication
Wireless LAN:	No

Physical Characteristics
Compatible Drive Bay Width:	3.5"
Depth:	116 mm
Form Factor:	Internal
Height:	22 mm
Material:	Steel
Weight (Approximate):	150 g
Width:	102 mm

Information

SKU/Item No 559484

Vendor Part No BRACKET25X2

UPC/EAN Number 065030852593
