Startech 2.5in Aluminum USB 3.0 External SATA III SSD Hard Drive Enclosure with UASP for SATA 6 Gbps – Portable External HDD S2510BMU33

Features

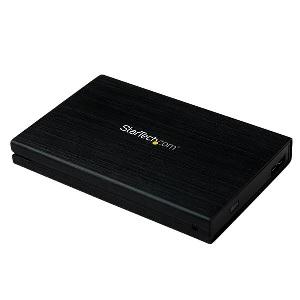

s2510bmu33 number bays drive enclosure
Click to view full size

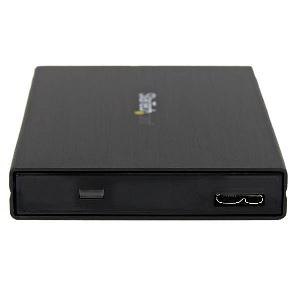

s2510bmu33 drive bays enclosure sata image 2
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

S2510BMU33




Turn a 2.5” SATA Hard Drive or Solid State Drive into a UASP supported USB 3.0 External Hard Drive


  • Compliant with USB Attached SCSI Protocol (UASP) Transport Specifications


  • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives


  • Light weight and durable aluminum enclosure


The S2510BMU33 USB 3.0 Hard Drive Enclosure with UASP lets you connect a 2.5in SATA III hard drive (HDD) or solid state drive (SSD) through an available USB port. The enclosure delivers optimal performance with a USB 3.0 connection, but is backward compatible with USB 2.0/1.1 host connections as well.


Enhanced with UASP (USB Attached SCSI Protocol), this 2.5" SATA III enclosure performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP reduces latency, significantly increasing transfer speeds and reducing processor usage to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.


With support for SATA I/II/III, and large capacity drives (tested up to 1TB) this HDD enclosure is compatible with virtually any 2.5in SATA hard drive, and greatly increase the storage/backup capabilities of your computer.


The USB 3.0/SATA III enclosure requires no external power adapter and features high quality aluminum construction, ensuring both portability and durability when carried as a laptop accessory.


To ensure compatibility with your computer system, the S2510BMU33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Improved Performance with UASP


UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram


At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram


Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com enclosure, and a SATA III solid state drive.


The StarTech.com Advantage
  • 70% Faster than traditional USB 3.0, with UASP Transfer Protocol
  • Maximum portability, with USB powered enclosure and durable aluminum housing

Applications
  • Take advantage of new laptops and desktops with USB 3.0 (UASP) connectivity
  • Create a fast, portable external storage solution for desktops, laptops or netbooks
  • Upgrade from a USB 2.0 drive enclosure to faster USB 3.0
  • Add extra storage to almost any USB enabled computer system
  • Back up important data to an external storage device
  • Share large files between computers quickly and securely without a network
  • Retrieve data from old SATA drive, or turn the unused drive into additional external storage space

Warranty Information

Warranty
2 Years

Hardware

Chipset ID
ASMedia - ASM1053 - 6G

Compatible Drive Types
SATA

Drive Installation
Fixed

Drive Size
2.5in

Fan(s)
No

Interface
USB 3.0

Number of Drives
1

Performance

Max Drive Capacity
Currently tested with up to 1TB 5400 RPM hard drives

RAID
No

Type and Rate
USB 3.0 - 5 Gbit/s

SATA III (6 Gbps)

UASP Support
Yes

Connector(s)

Drive Connectors
1 - SATA Data & Power Combo (7+15 pin) Female

Host Connectors
1 - USB 3.0 Micro-B (10 pin, SuperSpeed) Female

Software

OS Compatibility
OS independent; No software or drivers required

Special Notes / Requirements

System and Cable Requirements
Available USB port

Indicators

LED Indicators
1 - Power & Activity

Power

Power Source
USB-Powered

Environmental

Humidity

Operation Humidity:
10% ~ 90% RH


Storage Humidity:
5% ~ 95% RH

Operating Temperature
0°C to 40°C (32°F to 104°F)

Storage Temperature
-10°C to 65°C (14°F to 149°F)

Physical Characteristics

Color
Black

Enclosure Type
Aluminum and Plastic

Max Drive Height
0.4 in [9.5 mm]

Product Height
0.6 in [15.5 mm]

Product Length
4.7 in [120 mm]

Product Weight
4.6 oz [130 g]

Product Width
3 in [77 mm]

Packaging Information

Shipping (Package) Weight
0.5 lb [0.2 kg]

What's in the Box

Included in Package
1 - 2.5” USB 3.0 SATA III HDD Enclosure

1 - Screw Kit

1 - 18" USB 3.0 Cable

1 - Product Manual



2.5in Aluminum USB 3.0 External SATA III SSD/HDD Enclosure with UASP Portable USB 3.0 2.5 SATA Hard Drive Enclosure -2.5 HDD Enclosure - USB 3.0 Hard Drive Enclosure - Black


Brand Name: StarTech.com
Colour: Black
Drive Interface: Serial ATA/150
Drive Interface: Serial ATA/300
Form Factor: External
Host Interface: USB 3.0
Number of 1.8" Bays: No
Number of 2.5" Bays: 1
Number of 2.5"/3.5" Bays: No
Number of 3.5" Bays: No
Number of 5.25" Bays: No
Number of Total Expansion Bays: 1
Product Type: Drive Enclosure


Basic

Brand Name:
StarTech.com

Colour:
Black

Drive Interface:
Serial ATA/150

Serial ATA/300

Form Factor:
External

Host Interface:
USB 3.0

Number of 1.8" Bays:
No

Number of 2.5" Bays:
1

Number of 2.5"/3.5" Bays:
No

Number of 3.5" Bays:
No

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
1

Product Type:
Drive Enclosure
Bays

Number of Total Expansion Bays:
1
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
S2510BMU33

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
2.5" USB 3.0 SATA III HDD Enclosure

Product Type:
Drive Enclosure
I/O Expansions

Number of 1.8" Bays:
No

Number of 2.5" Bays:
1

Number of 2.5"/3.5" Bays:
No

Number of 3.5" Bays:
No

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
1
Interfaces/Ports

Drive Interface:
Serial ATA/150

Serial ATA/600

Host Interface:
USB 3.0
Miscellaneous

Certifications & Standards:
  • CE
  • FCC

Compatibility:

Max Drive Height:
0.4 in [9.5 mm]

Form Factor:
External

Green Compliant:
Yes

Platform Supported:
PC
Physical Characteristics

Colour:
Black

Cooling Fan:
No

Depth:
120 mm

Form Factor:
External

Height:
15.5 mm

Material:
Aluminium

Platform Supported:
PC


Weight (Approximate):

96.4 g

Width:
77 mm
Product Information

Compatibility:

Max Drive Height:
0.4 in [9.5 mm]

Form Factor:
External

Packaged Quantity:
1

Platform Supported:
PC

Width:
77 mm
Technical Information

Cooling Fan:
No

Host Interface:
USB 3.0

Platform Supported:
PC
