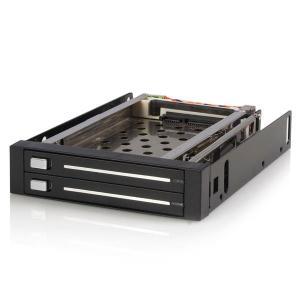

Startech 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane HSB220SAT25B

Features

Click to view full size

hard product controller startech bays image 2

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

HSB220SAT25B

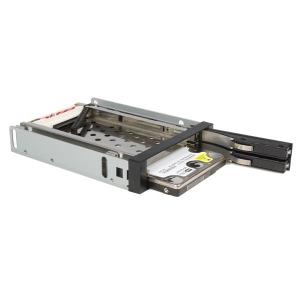

Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bay

Holds up to two SATA drives in a single 3.5" bay
Trayless Design:
drives are not mounted into separate trays/enclosures
Includes a plastic protective film for the bottom side of hard drive

This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.

Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

The StarTech.com Advantage

Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design
Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay

Applications

IT environments where you just need to quickly insert/replace removable hard drives/solid state drives
Imaging - For System Builders or configuring new systems - Use Hot Swap Bay in master system to copy Windows OS quickly to blank hard drive as part of system building process
Ideal for RAID applications (with RAID supported SATA controller)

Warranty Information
Warranty	2 Years
Hardware
Compatible Drive Types	SATA
Drive Size	2.5in
Key Lock	No
Number of Drives	2
Performance
Hot Swap Capability	Yes
Max Drive Capacity	Tested up to 500GB per drive
Type and Rate	SATA III (6 Gbps)

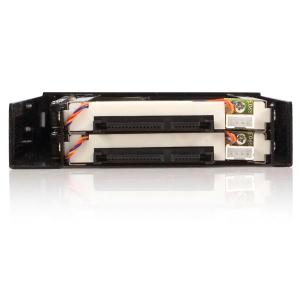

Connector(s)
Connector Type(s)	2 - SATA (7 pin, Data) Receptacle
	2 - SATA Power (15 pin) Receptacle
	2 - SP4 (4 pin, Small Drive Power) Male
Drive Connectors	2 - SATA (7 pin, Data) Receptacle
	2 - SATA Power (15 pin) Receptacle
Host Connectors	2 - SATA (7 pin, Data) Plug
	2 - SATA Power (15 pin) Plug
Software
OS Compatibility	OS independent; No software or drivers required
Indicators
LED Indicators	1 - Power/Drive Activity
Physical Characteristics
Color	Black
Enclosure Type	Aluminum
Max Drive Height	0.4 in [9.5 mm]
Product Height	0.9 in [24 mm]
Product Length	5.3 in [134 mm]
Product Weight	10 oz [282.5 g]
Product Width	4 in [102 mm]
Packaging Information
Shipping (Package) Weight	1.1 lb [0.5 kg]
What's in the Box
Included in Package	1 - dual SATA hot-swap bay
	2 - LP4 to SATA and LED adapter cable
	1 - 15-pin SATA power and LED Y cable
	2 - 7-pin SATA data cable
	2 - hard drive protector film
	1 - screw kit
	1 - instruction manual

2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane - Dual Drive SATA Mobile Rack Enclosure for 3.5 HDD

Brand Name: StarTech.com

Colour: Black

Compatible Drive Bay Width: 3.5"

Controller Type: Serial ATA

Drive Interface: Serial ATA/600

Form Factor: Internal

Number of 2.5" Bays: 2

Number of Total Expansion Bays: 2

Product Type: Drive Enclosure

Basic
Brand Name:	StarTech.com
Colour:	Black
Compatible Drive Bay Width:	3.5"
Controller Type:	Serial ATA
Drive Interface:	Serial ATA/600
Form Factor:	Internal
Number of 2.5" Bays:	2
Number of Total Expansion Bays:	2
Product Type:	Drive Enclosure

Bays
Number of Total Expansion Bays:	2

Controllers
Controller Type:	Serial ATA

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	HSB220SAT25B
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Model:	HSB220SAT25B
Product Name:	2 Drive 2.5in Trayless SATA Mobile Rack
Product Type:	Drive Enclosure

I/O Controller
Controller Type:	Serial ATA

I/O Expansions
Number of 2.5" Bays:	2
Number of Total Expansion Bays:	2

Interfaces/Ports
Drive Interface:	Serial ATA/600

Miscellaneous
Additional Information:	Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay Backed by a StarTech.com 2-year warranty and free lifetime technical support
Form Factor:	Internal
Green Compliance Certificate/Authority:	RoHS
Green Compliant:	Yes

Physical Characteristics
Colour:	Black
Compatible Drive Bay Width:	3.5"
Depth:	134.1 mm
Form Factor:	Internal
Height:	23.9 mm
Material:	Aluminium
Width:	102.1 mm

Product Information
Form Factor:	Internal
Width:	102.1 mm

Technical Information
Controller Type:	Serial ATA

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 559473

Vendor Part No HSB220SAT25B

UPC/EAN Number 065030827980
