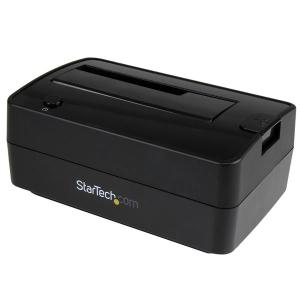

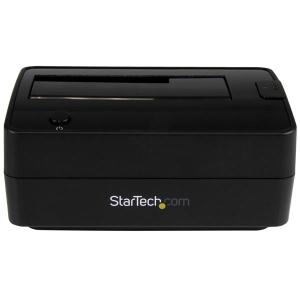

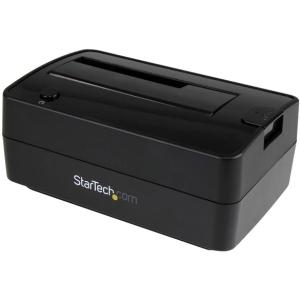

Startech Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA SDOCKU313E

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

SDOCKU313E




Dock and access your SATA SSD/HDD through high-performance USB 3.1 (10Gbps) or eSATA


  • Connect and access a 2.5" or 3.5" SATA SSD/HDD over USB 3.1 Gen 2 or eSATA


  • Access drives at full speed with support for SATA I, II and III (up to 6Gbps)


  • Top-loading design with built-in ejection button for easy drive access


Connect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.


Supports USB 3.1 Gen 2 and eSATA for flexible use


Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.


You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.

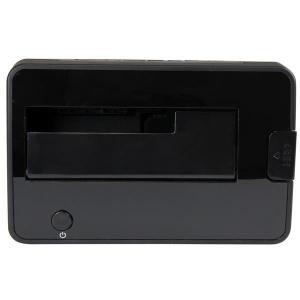

Top-loading design for easy drive access


The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.


Convenient compatibility


The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.


The docking station is also UASP compatible, for enhanced performance.


The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Get quick access to drives, ideal for system builders and IT professionals
  • Back up data quickly to an archive drive
  • Easily take backup data to an offsite location for safekeeping

Warranty Information

Warranty
2 Years

Hardware

Bus Type
USB 3.1 Gen 2 & eSATA

Chipset ID
ASMedia - ASM1351

Compatible Drive Types
SATA

Drive Installation
Removable

Drive Size
2.5in & 3.5in

Fan(s)
No

Interface
USB 3.1 Gen 2

eSATA

Number of Drives
1

Performance

Hot Swap Capability
Yes

Max Drive Capacity
Currently tested with hard drives up to 6TB at 7200 RPM

Trim Supported
Yes

Type and Rate
USB 3.1 Gen 2 - 10 Gbit/s

SATA III (6 Gbps)

UASP Support
Yes

Connector(s)

Drive Connectors
1 - SATA Data & Power Combo (7+15 pin) Receptacle

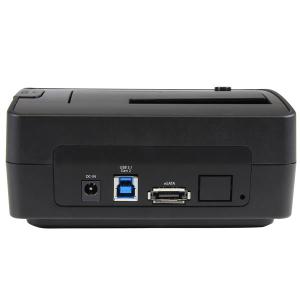

Host Connectors
1 - USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) Female

1 - eSATA (7 pin, Data) Female

Software

OS Compatibility
OS independent; No software or drivers required

Indicators

LED Indicators
1 - Power & Activity

Power

Center Tip Polarity
Positive

Input Current
0.6 A

Input Voltage
110V-240V AC

Output Current
2.0 A

Output Voltage
12 DC

Plug Type
M

Power Consumption (In Watts)
24

Power Source
AC Adapter Included

Environmental

Humidity
20% ~ 80% RH

Operating Temperature
5°C to 35°C (41°F to 95°F)

Storage Temperature
-20°C to 50°C (-4°F to 122°F)

Physical Characteristics

Color
Black

Enclosure Type
Plastic

Product Height
2.6 in [65.2 mm]

Product Length
5.7 in [145 mm]

Product Weight
17.6 oz [500 g]

Product Width
3.7 in [93 mm]

Packaging Information

Shipping (Package) Weight
30 oz [850 g]

What's in the Box

Included in Package
1 - USB 3.1 & eSATA HDD/SSD docking station

1 - universal power adapter (NA/JP, EU, UK, ANZ)

1 - 3.3 ft. [1 m] USB-A to USB-B cable

1 - 3.3 ft. [1 m] USB-C to USB-B cable

1 - 3.3 ft. [1 m] eSATA cable

1 - quick-start guide



DRIVE DOCKING STATION FOR 2.5 / 3.5IN SATA DRIVES - USB 3.1 (USB-A USB-C) OR ESATA


Brand Name: StarTech.com
Colour: Black
Drive Interface: Serial ATA/600
Form Factor: External
Host Interface: USB 3.1 Type B
Number of 1.8" Bays: No
Number of 2.5"/3.5" Bays: 1
Number of 5.25" Bays: No
Number of Total Expansion Bays: 1
Product Type: Drive Dock
Wireless LAN: No


Basic

Brand Name:
StarTech.com

Colour:
Black

Drive Interface:
Serial ATA/600

Form Factor:
External

Host Interface:
USB 3.1 Type B

Number of 1.8" Bays:
No

Number of 2.5"/3.5" Bays:
1

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
1

Product Type:
Drive Dock

Wireless LAN:
No
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
SDOCKU313E

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
USB 3.1 & eSATA HDD/SSD Docking Station

Product Type:
Drive Dock
I/O Expansions

Number of 1.8" Bays:
No

Number of 2.5"/3.5" Bays:
1

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
1
Interfaces/Ports

Drive Interface:
Serial ATA/600

Host Interface:
USB 3.1 Type B

eSATA
Network & Communication

UASP Support:
Yes

Wireless LAN:
No
Physical Characteristics

Colour:
Black

Cooling Fan:
No

Depth:
144.8 mm

Form Factor:
External

Height:
66 mm

Material:
Plastic


Weight (Approximate):

499 g

Width:
94 mm
