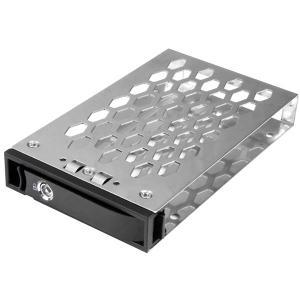

Startech 2.5" Hot Swap Hard Drive Tray SATSASTRX25

Features

(Pictures are For Illustration Purposes Only)

Startech's MPN:

SATSASTRX25

Exchange drives with ease with this extra drive tray for SATSASBP425 and SATSASBP125 series backplanes

Swap drives quickly with this drive tray for 2.5” SSD/HDDs
Interchangeable with the single-bay (SATSASBP125) and quad-bay (SATSASBP425) backplanes
Compatible with 2.5" SAS or SATA SSDs and HDDs 5-15mm

This 2.5" hard drive tray lets you add even more flexibility to how you manage your data storage with the SATSASBP425 and SATSASBP125 series backplanes.

This interchangeable 2.5

Convenient, interchangeable drive tray

This spare drive tray can help you save time in a fast-paced work environment. It’s interchangeable with trays from the StarTech.com single-bay backplane (SATSASBP125) and the four-bay backplane (SATSASBP425), giving you an extra tray in addition to the trays you're already using, to create expandable storage or as part of a rotating back-up solution.

Easy compatibility

The drive tray supports both SAS and SATA 2.5” drives, ranging from 5 to 15mm in height. To maximize the performance of your hard drives, the single and quad-bay backplanes support SAS II and SATA III enabling file transfer speeds up to 6 Gbps when paired with a compatible controller.

Vented metal design for durability

The durable aluminum drive tray is designed for long-lasting performance. The venting helps to ensure proper air flow and maximize heat dissipation, to help keep your drives running at optimal temperatures.

The SATSASTRX25 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Be ready with multiple replacement drives for the SATSASBP125 and SATSASBP425 mobile rack backplanes
Keep spare or replacement hard drives on hand for expandable storage
Use the tray for extra hard drives for rotating backup solutions

Warranty Information
Warranty	2 Years
Hardware
Compatible Drive Types	SAS & SATA
Drive Size	2.5in
Fan(s)	No
Number of Drives	1
Supported Drive Height(s)	5mm
	7mm
	9.5mm
	12.5mm
	15mm
Software
OS Compatibility	OS independent; No software or drivers required
Environmental
Humidity	5%~65% RH
Operating Temperature	0°C to 55°C (23°F to 95°F)
Storage Temperature	-20°C to 55°C (-4°F to 131°F)
Physical Characteristics
Color	Black & Silver
Enclosure Type	Steel and Plastic
Max Drive Height	0.6 in [15 mm]
Product Height	0.7 in [16.9 mm]
Product Length	4.7 in [118.7 mm]
Product Weight	3.2 oz [90 g]
Product Width	2.8 in [70 mm]
Packaging Information
Shipping (Package) Weight	4.2 oz [118 g]
What's in the Box
Included in Package	1 - 2.5" hot swap hard drive tray
	4 - screws
	2 - keys

2.5in Hot Swap Hard Drive Tray - Extra SSD/HDD Drive Tray for One-Bay & Four-Bay Backplanes (SATSASBP125 / SATSASBP425) - Aluminum Drive Tray for 2.5in SSD/HDDs 5-15mm

Brand Name: StarTech.com

Colour: Black

Drive Interface: SAS

Drive Interface: Serial ATA

Form Factor: Internal

Number of 1.8" Bays: No

Number of 2.5" Bays: 1

Number of 2.5"/3.5" Bays: No

Number of 3.5" Bays: No

Number of 5.25" Bays: No

Number of Total Expansion Bays: 1

Product Type: Drive Bay Adapter

Basic
Brand Name:	StarTech.com
Colour:	Black
Drive Interface:	SAS
	Serial ATA
Form Factor:	Internal
Number of 1.8" Bays:	No
Number of 2.5" Bays:	1
Number of 2.5"/3.5" Bays:	No
Number of 3.5" Bays:	No
Number of 5.25" Bays:	No
Number of Total Expansion Bays:	1
Product Type:	Drive Bay Adapter

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	SATSASTRX25
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	2.5" Hot Swap Hard Drive Tray for SATSASBP125 and SATSASBP425 Series Backplanes
Product Type:	Drive Bay Adapter

I/O Expansions
Number of 1.8" Bays:	No
Number of 2.5" Bays:	1
Number of 2.5"/3.5" Bays:	No
Number of 3.5" Bays:	No
Number of 5.25" Bays:	No
Number of Total Expansion Bays:	1

Interfaces/Ports
Drive Interface:	SAS
	Serial ATA

Physical Characteristics
Colour:	Black
	Silver
Cooling Fan:	No
Depth:	116.8 mm
Form Factor:	Internal
Height:	17.8 mm
Material:	Steel
Weight (Approximate):	82.2 g
Width:	71.1 mm

Information

SKU/Item No 559460

Vendor Part No SATSASTRX25

UPC/EAN Number 065030862318
