Startech USB 3.1 (10Gbps) Single-Bay Dock for 2.5"/3.5" SATA SSD/HDD SDOCKU313

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

SDOCKU313




Dock your 2.5" or 3.5" SATA drive over high performance USB 3.1 with UASP


  • Access data from one 2.5 or 3.5” SATA SDD/HDD over ultra-fast USB 3.1 Gen 2


  • Access drives at full speed with support of SATA I, II and III (up to 6 Gbps)


  • Top-loading design with built-in ejection button for easy drive access


Unleash the power of USB 3.1 Gen 2 (10 Gbps) with this single-drive docking station. It supports both 2.5” and 3.5” form factors for solid-state and hard drives, with a high drive capacity of 6TB.


Harness the speed of USB 3.1 Gen 2

USB File Transfer Rates diagram shows USB 3.1 Gen 2 at 10 Gbps is twice the speed of USB 3.0 at5 Gbps


USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Top-loading design for easy drive access

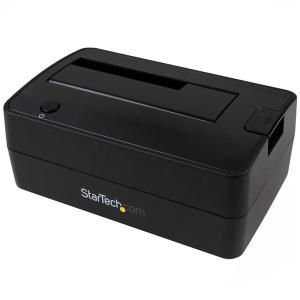

Top-loading design allows easy access to your drive


It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.

Convenient compatibility


The docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.  It also supports UASP for enhanced performance.


The SDOCKU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Perfect for system builders and IT professionals who need quick access to drives for imaging
  • Back up data quickly to an external drive for archiving
  • Transfer data from one hard drive to another
  • Easily take backup data to an offsite location for safekeeping

Warranty Information

Warranty
2 Years

Hardware

Bus Type
USB 3.1 Gen 2

Chipset ID
ASMedia - ASM1351

Compatible Drive Types
SATA

Drive Installation
Removable

Drive Size
2.5in & 3.5in

Fan(s)
No

Interface
USB 3.1 Gen 2

Number of 2.5 inch bays
2

Number of Drives
1

Performance

Max Drive Capacity
Currently tested with hard drives up to 6TB at 7200 RPM

Maximum Data Transfer Rate
10 Gbps

Trim Supported
Yes

Type and Rate
USB 3.1 Gen 2 - 10 Gbit/s

SATA III (6 Gbps)

UASP Support
Yes

Connector(s)

Drive Connectors
1 - SATA Data & Power Combo (7+15 pin) Receptacle

Host Connectors
1 - USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) Female

Software

OS Compatibility
OS independent; No software or drivers required

Indicators

LED Indicators
1 - Power & Activity

Power

Center Tip Polarity
Positive

Input Current
0.8

Input Voltage
100 ~ 240 AC

Output Current
2A

Output Voltage
12 DC

Plug Type
M

Power Consumption (In Watts)
24

Power Source
AC Adapter Included

Environmental

Humidity
20% ~ 80% RH

Operating Temperature
5°C to 35°C (35°F to 95°F)

Storage Temperature
-20°C to 50°C (-4°F to 122°F)

Physical Characteristics

Color
Black

Enclosure Type
Plastic

Product Height
2.5 in [63.6 mm]

Product Length
5.7 in [144.8 mm]

Product Weight
14 oz [398 g]

Product Width
3.6 in [92.7 mm]

Packaging Information

Shipping (Package) Weight
28.4 oz [804 g]

What's in the Box

Included in Package
1 - USB 3.1 HDD Dock

1 - USB Cable

1 - Universal Power Adapter

4 - Power Adapter Plugs (NA,EU,UK,ANZ)

1 - Quick Install Guide



Dock your 2.5in or 3.5in SATA drive over high performance USB 3.1 Gen 2 with UASP - 1-drive dock supports SATA I II III (up to 6 Gbps) - Top-loading design - Up to 6TB capacity


Brand Name: StarTech.com
Colour: Black
Drive Interface: Serial ATA/600
Form Factor: External
Host Interface: USB 3.1
Number of 1.8" Bays: No
Number of 2.5"/3.5" Bays: 1
Number of 5.25" Bays: No
Number of Total Expansion Bays: 1
Product Type: Drive Dock
Wireless LAN: No


Basic

Brand Name:
StarTech.com

Colour:
Black

Drive Interface:
Serial ATA/600

Form Factor:
External

Host Interface:
USB 3.1

Number of 1.8" Bays:
No

Number of 2.5"/3.5" Bays:
1

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
1

Product Type:
Drive Dock

Wireless LAN:
No
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
SDOCKU313

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
USB 3.1 Gen 2 (10Gbps) Single-Bay Dock for 2.5"/3.5" SATA SSD/HDDs with UASP

Product Type:
Drive Dock
I/O Expansions

Number of 1.8" Bays:
No

Number of 2.5"/3.5" Bays:
1

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
1
Interfaces/Ports

Drive Interface:
Serial ATA/600

Host Interface:
USB 3.1
Miscellaneous

Environmentally Friendly:
Yes
Network & Communication

UASP Support:
Yes

Wireless LAN:
No
Physical Characteristics

Colour:
Black

Cooling Fan:
No

Depth:
145 mm

Form Factor:
External

Height:
65.2 mm

Material:
Plastic


Weight (Approximate):

400 g

Width:
93 mm
