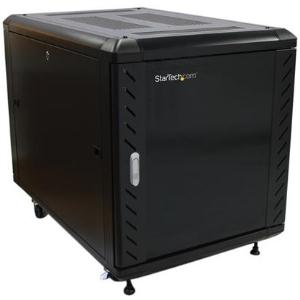

Startech 12U 36in Knock-Down Server Rack Cabinet with Casters RK1236BKF

Features

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Startech's MPN:

RK1236BKF

Store your servers, network and telecommunications equipment securely in this 12U solid steel rack

Increase visibility and security with a glass door
Easy equipment installation
Keep your equipment at an optimal temperature with passive cooling

This server rack provides 12U of storage space in a sleek secure cabinet for storing EIA-310 compliant 19” rackmount devices such as Dell, HP and IBM servers along with telecommunication and A/V equipment. The rack creates a robust storage solution supporting a total load capacity of 800 kg. (1763.7 lbs.).

Hassle-free equipment installation

Adjustable mounting rails

This rack has been engineered with different features that enable you to easily incorporate plenty of equipment.

With adjustable mounting rails you can easily change the rail depth to up to 39.4 in. (1000mm). These rails ensure the cabinet is widely compatible with your standard rackmountable equipment. The added depth also provides support for additional cable and power management behind your equipment.

The rack features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.

Securely protect your equipment while still being able to see it

Glass door

To ensure you have full visibility of your equipment while securely locking it up, this rack has a stylish glass window on the front door. The glass door looks great in any server room, and gives you the freedom to clearly monitor equipment without the hassle of opening your rack.

The rack also has removable side panels with independent locks quick-release mechanisms that enable you to easily access your equipment while still keeping it secure.

Save money, with a cost effective, compact shipping container

The cabinet comes in a flat packed box to reduce shipping volume, which significantly reduces your costs in shipping. Plus, because the rack is packaged efficiently, you can easily store the cabinet, for deployment at a later date.

Maximum Maneuverability, with casters included

Casters

The cabinet features casters ensuring hassle-free access to the rear mounted equipment, while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fits through standard doorways, giving you the freedom to wheel your server rack into different rooms.

Ensure your equipment is running at an optimal temperature

Vented ceiling panel

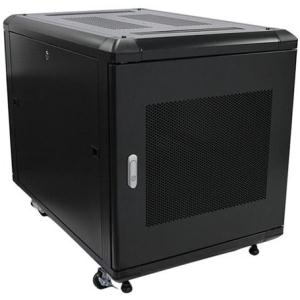

The rear door on the rack is mesh, and the front glass door is vented, working together to increase airflow to provide passive cooling that’s cost effective and ensures your equipment runs at an optimal temperature.

The top ceiling panel features square venting holes that are cage nut compatible, which provide mounting points that enable you to add additional equipment at the top of your rack.

The RK1236BKF is backed by a lifetime StarTech.com warranty with free technical support.

Applications

Perfect solution for Technology shops and repair centers with limited space and mountable equipment where security is required
Ideal for rack mount servers, KVM switches, networking equipment and cabinet consoles
Audio/Video editing room, radio or television studio broadcast rackmount equipment
A great solution for the college/university classroom, where only limited rackmount equipment is needed, but security is still important

Warranty Information
Warranty	Lifetime
Hardware
Back Door Type	Steel Mesh
Casters	Included
Fan(s)	No
Frame Type	Enclosed Cabinet
Front Door Type	Steel w/ Window
Industry Standards	DIN41491 Part I
	EIA RS310-D
	IEC297-2
Key Lock	Yes
Rack Type	4-Post
Side Panel Type	Solid Steel
U Height	12U
Wallmountable	No
Performance
Weight Capacity	1768 lb [800 kg]
Physical Characteristics
Color	Black
Enclosure Type	Aluminum and Steel
External Depth	35.4 in [900 mm]
External Height	26.1 in [663 mm]
External Width	23.6 in [600 mm]
Height with Casters	28.9 in [735 mm]
Internal Width	18.3 in [465 mm]
Maximum Mounting Depth	28.7 in [730 mm]
Minimum Mounting Depth	5.9 in [150 mm]
Product Weight	64.8 lb [29.3 kg]
Packaging Information
Flat Pack	Yes
Shipping (Package) Weight	110.5 lb [50 kg]
What's in the Box
Included in Package	3 - Bottom Panel
	2 - Side Panel and Frame
	1 - Top Panel
	4 - Cross Brace
	8 - Plastic Corner Caps
	4 - Casters
	2 - Sets of Keys
	4 - Adjustable Feet
	1 - Assembly Screw Kit
	1 - Bag M6 Cab Screws and Nuts
	2 - Allen Wrench

12U 36in Knock-Down Server Rack Cabinet with Casters

Application/Usage: A/V Equipment

Application/Usage: KVM Switch

Application/Usage: Server

Assembly Required: Yes

Brand Name: StarTech.com

Colour: Black

Depth: 900 mm

Form Factor: External

Height: 663 mm

Material: Steel Rear Door

Material: Steel Side Panel

Product Type: Rack Cabinet

Rack Depth: 728.98 mm

Rack Height: 12U

Rack Width: 464.82 mm

Weight (Approximate): 29.30 kg

Width: 600 mm

Basic
Application/Usage:	A/V Equipment
	KVM Switch
	Server
Assembly Required:	Yes
Brand Name:	StarTech.com
Colour:	Black
Depth:	900 mm
Form Factor:	External
Height:	663 mm
Material:	Steel Rear Door
	Steel Side Panel
Product Type:	Rack Cabinet
Rack Depth:	728.98 mm
Rack Height:	12U
Rack Width:	464.82 mm
Weight (Approximate):	29.30 kg
Width:	600 mm

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	RK1236BKF
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Name:	12U 36in Knock-Down Server Rack Cabinet with Casters
Product Type:	Rack Cabinet

Miscellaneous
Additional Information:	Flat Pack: Yes Flat packed into a single carton for easy shipping Vented doors and side panels Adjustable mounting rails Quick and easy to assemble Comes with heavy duty casters for easy installation and mobility when needed Heavy duty steel construction and high weight capacity allows any type of equipment to be installed without worry Flat-pack "knockdown" design for lower shipping costs and ease of installation into any style of facility Ideal for rack mount servers, KVM switches, networking equipment and cabinet consoles Audio/Video editing room, radio or television studio broadcast rackmount equipment A great solution for the college/university classroom, where only limited rackmount equipment is needed, but security is still important
Assembly Required:	Yes
Environmental Certification:	RoHS
	WEEE
Environmentally Friendly:	Yes
Package Contents:	1 x Top Panel 3 x Bottom Panel 4 x Cross Brace 2 x Side Panel and Frame 8 x Plastic Corner Caps 4 x Adjustable Feet 4 x Casters 2 x Allen Wrench (Small,Large) 1 x Assembly ScrewKit (M4, M5, M6, M8) 1 x Bag of M6 Cabinet Screws and Nuts 2 x Sets of Keys Stabilizer Feet

Physical Characteristics
Colour:	Black
Depth:	900 mm
Form Factor:	External
Height:	663 mm
Material:	Steel Rear Door
Maximum Weight Capacity:	800 kg
Rack Depth:	728.98 mm
Rack Height:	12U
Rack Width:	464.82 mm
Weight (Approximate):	29.30 kg
Width:	600 mm

Technical Information
Application/Usage:	A/V Equipment
	KVM Switch
	LAN Switch
	Server
Features:	Casters
Front Rail:	Yes
Rail Depth:	1000.76 mm
Rear Rail:	Yes

Warranty
Limited Warranty:	Lifetime

Information

SKU/Item No 559411

Vendor Part No RK1236BKF

UPC/EAN Number 065030845595
