Startech Wall-Mount Bracket for Shallow Rack-Mount Equipment - Solid Steel - 8U WALLMOUNT8

Features

Startech

Startech's MPN:

WALLMOUNT8




Mount equipment that is up to 12 inches deep, such as patch panels or network switches, to your wall


  • Improve efficiency in your office or server room by mounting shallow equipment to the wall


  • Sturdy installation of mission-critical equipment, with a solid steel design


  • Hassle-free setup with wall mounting holes spaced 16 in. apart, matching standard dry-wall framework


This wall-mount bracket provides 8U of space for mounting shallow rack-mount equipment that's 12 in. deep or less to the wall, such as patch panels or network switches.


Improve efficiency and accessibility in your workspace


The 8U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It’s the perfect solution for your space-limited SoHo (small office, home office) environment  or server room because it doesn’t take up any floor space.


Ensure a secure and hassle-free installation


The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment.  Also, because the wall rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring.

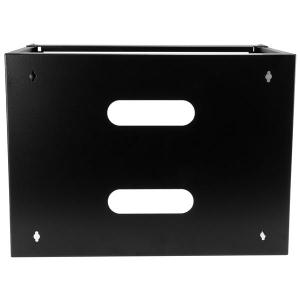

The rack also features a rear access panel that can be used to easily run cabling into the rack.


Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.


If you're looking for a shallow mounting solution with fewer or more rack units, StarTech.com also offers a 6U wall-mount bracket, and a 12U wall-mount bracket.


The WALLMOUNT8 is backed by a StarTech.com lifetime warranty and free lifetime technical support.


Applications
  • Mount equipment that is up to 12 inches deep on your wall
  • Organize cabling or equipment in your network closet, wiring closet, back office or IDF
  • Save space in your SoHo (small office, home office) or server room, by mounting equipment to the wall instead of taking up floor space

Warranty Information

Warranty

Lifetime

Hardware

Fan(s)

No

Frame Type

Open Frame

Front Door Type

Open

Rack Type

2-Post

U Height

8U

Wallmountable

Yes

Performance

Weight Capacity

80.2 lb [36.3 kg]

Physical Characteristics

Color

Black

External Depth

12 in [304.8 mm]

External Height

14.3 in [362.5 mm]

External Width

20.5 in [520.7 mm]

Internal Height

13.5 in [342.9 mm]

Internal Width

17.7 in [449.7 mm]

Product Height

14.3 in [362.5 mm]

Product Length

13.7 in [349.3 mm]

Product Weight

17.8 lb [8.1 kg]

Product Width

20.5 in [520.7 mm]

Packaging Information

Shipping (Package) Weight

17.8 lb [8.1 kg]

What's in the Box

Included in Package

1 - wall-mount bracket

24 - M5 cage nuts

24 - M5 screws with washers

1 - M6 K-nut

6 - wood screws

1 - instruction manual



WALL-MOUNT BRACKET FOR SHALLOW RACK-MOUNT EQUIPMENT - SOLID STEEL - 8U


Application/Usage: LAN Switch
Brand Name: StarTech.com
Colour: Black
Depth: 304.8 mm
Form Factor: Wall Mountable
Height: 363.2 mm
Material: Steel
Product Type: Rack Frame
Rack Height: 8U
Rack Width: 449.58 mm
Weight (Approximate): 8.10 kg
Width: 520.7 mm


Basic

Application/Usage:

LAN Switch

Brand Name:

StarTech.com

Colour:

Black

Depth:

304.8 mm

Form Factor:

Wall Mountable

Height:

363.2 mm

Material:

Steel

Product Type:

Rack Frame

Rack Height:

8U

Rack Width:

449.58 mm


Weight (Approximate):

8.10 kg

Width:

520.7 mm
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

WALLMOUNT8

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Product Name:

8U 12in Deep Wall Mounting Bracket for Patch Panel - Wall Mount Bracket

Product Type:

Rack Frame
Miscellaneous

Environmentally Friendly:

Yes
Physical Characteristics

Colour:

Black

Depth:

304.8 mm

Form Factor:

Wall Mountable

Height:

363.2 mm

Material:

Steel

Maximum Weight Capacity:

36.38 kg

Rack Height:

8U

Rack Width:

449.58 mm


Weight (Approximate):

8.10 kg

Width:

520.7 mm
Technical Information

Application/Usage:

LAN Switch
