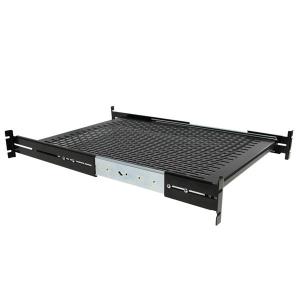

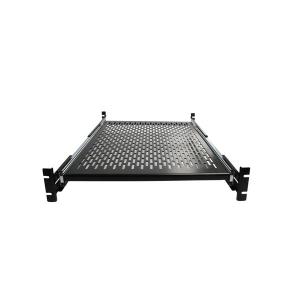

Startech 2U Adjustable Mounting Depth Vented Sliding Rack Mount Shelf – 50lbs / 22.7kg UNISLDSHF19

Features

(Pictures are For Illustration Purposes Only)

Startech

Startech's MPN:

UNISLDSHF19




Increase peripheral and equipment accessibility with this vented sliding cabinet shelf


  • Constructed from 16 gauge cold rolled steel


  • Highly ventilated to reduce airflow impedance


  • TAA compliant for GSA Schedule purchases


The UNISLDSHF19 19in Vented Adjustable Mounting Depth Sliding Server Rack Cabinet Shelf offers a simple way to install non rack mountable equipment into a server cabinet or open server rack. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.


Offering a weight capacity of up to 50 lbs (22.7 kg), the sliding rack shelf features a ventilated, cold-rolled steel shelf on two locking adjustable rails which allow the shelf to be installed into cabinets or racks with mounting depths from 20in (510mm) to 30in (744mm). The locking feature locks the shelf 3/4 of the way out, preventing the shelf from accidentally falling out of the rack or sliding back in before maintenance is complete.


Backed by a StarTech.com lifetime warranty.


The StarTech.com Advantage
  • Ventilated shelf design improves air flow and helps lower temperatures in the rack
  • Simple sliding and locking mechanism makes it easy to access anything even deep on the shelf
  • Adjustable rails offer compatibility with almost any server rack or cabinet

Applications
  • For use with all 19" wide Server Racks and Cabinets
  • Add a sliding rack mounting option for non rack mountable equipment

Warranty Information

Warranty

Lifetime

Hardware

Frame Type

Steel

Industry Standards

EIA RS310-C

U Height

2U

Performance

Weight Capacity

50.1 lb [22.7 kg]

Physical Characteristics

Color

Black

External Depth

24 in [610 mm]

External Height

3.5 in [88.6 mm]

External Width

18.9 in [480 mm]

Maximum Mounting Depth

29.3 in [744 mm]

Minimum Mounting Depth

20.1 in [510 mm]

Product Weight

9.1 lb [4.1 kg]

Packaging Information

Shipping (Package) Weight

296.5 oz [8400 g]

What's in the Box

Included in Package

1 - Sliding Shelf

8 - M6 Screws

8 - M6 Cage Nuts



2U Adjustable Mounting Depth Vented Sliding Rack Mount Shelf # 50lbs / 22.7kg


Brand Name: StarTech.com
Depth: 610.1 mm
Height: 88.6 mm
Material: Cold-rolled Steel (CRS) Frame
Product Type: Rack Shelf
Rack Height: 1U
Rack Width: 482.60 mm
Weight (Approximate): 4.11 kg
Width: 480.1 mm


Basic

Brand Name:

StarTech.com

Depth:

610.1 mm

Height:

88.6 mm

Material:

Cold-rolled Steel (CRS) Frame

Product Type:

Rack Shelf

Rack Height:

1U

Rack Width:

482.60 mm


Weight (Approximate):

4.11 kg

Width:

480.1 mm
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

UNISLDSHF19

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Product Model:

UNISLDSHF19

Product Name:

19" Adjustable Sliding Server Rack Cabinet Shelf

Product Type:

Rack Shelf
Physical Characteristics

Depth:

610.1 mm

Height:

88.6 mm

Material:

Cold-rolled Steel (CRS) Frame

Maximum Weight Capacity:

22.68 kg

Rack Height:

1U

Rack Width:

482.60 mm


Weight (Approximate):

4.11 kg

Width:

480.1 mm
Warranty

Limited Warranty:

2 Year
