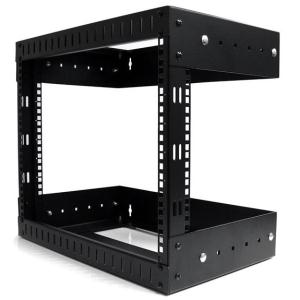

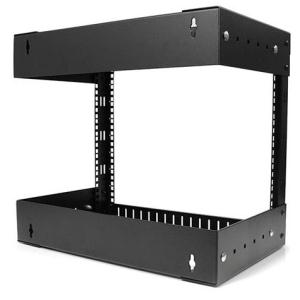

Startech 8U Open Frame Wall Mount Equipment Rack - Adjustable Depth RK812WALLOA

Features
rk812walloa rack wall depth frame
Click to view full size
mount equipment adjustable startech open
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

Startech's MPN:

RK812WALLOA




Mount your network and telecommunications equipment with the convenience of adjustable depth


  • Adjustable rails 12-20" depth options


  • Wall mount holes are 16" from center to center for mounting to any standard wooden studs (easily mounts to concrete or steel as well)


  • TAA compliant for GSA Schedule purchases


The RK812WALLOA 8U Open Frame Wall Mount Equipment Rack with Adjustable Depth is a high-quality, sturdy relay rack solution that is easy to assemble and install into any environment. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.


The open rack features an adjustable depth ranging from 12-20 inches, in order to accommodate larger data, network and telecommunications devices. The greater than average depth of the rack also allows for mounting of shelves and other accessories. The wall mounts are positioned 16in apart (center to center), making it suitable for mounting on virtually any wall surface, based on North American wall frame stud spacing standards.


This 8U rack can be mounted to the wall in a server room, office, or above a doorway, expanding your workspace and keeping your equipment easily accessible.


Backed by a StarTech.com lifetime warranty.


The StarTech.com Advantage
  • The adjustable design provides a flexible solution for wall mounting equipment varying in size
  • 20" maximum mounting depth is deeper than most wallmount racks for additional equipment handling
  • Hassle-free setup, with the rack arriving fully assembled

Applications
  • Perfect for installing network switches out of the way and high up on a wall in a branch office, warehouse, or superstore location
  • Mount Audio/Video broadcast or distribution components
  • Ideal for small and medium businesses requiring small rack solutions dispersed throughout the organization

Warranty Information

Warranty
Lifetime

Hardware

Fan(s)
No

Frame Type
Open Frame

Front Door Type
Open

Industry Standards
EIA RS310-C

Rack Type
2-Post

U Height
8U

Wallmountable
Yes

Performance

Weight Capacity
135.3 lb [61.2 kg]

Special Notes / Requirements

Note
Hardware to mount the rack to the wall is not provided

Physical Characteristics

Color
Black

External Depth
13.2 in [335 mm]

External Height
19.5 in [495 mm]

External Width
21.1 in [535 mm]

Maximum Mounting Depth
20.1 in [510 mm]

Product Weight
23.9 lb [10.8 kg]

Packaging Information

Flat Pack
Yes

Shipping (Package) Weight
26.8 lb [12.1 kg]

What's in the Box

Included in Package
1 - wall mount rack

16 - assembly screws

32 - M5 screws

32 - M5 cage nuts

8 - truss head screws

1 - installation guide



8U Open Frame Wall Mount Equipment Rack - Adjustable Depth


Application/Usage: LAN Switch
Application/Usage: Patch Panel
Brand Name: StarTech.com
Colour: Black
Depth: 335 mm
Form Factor: Wall Mountable
Height: 495 mm
Material: Steel Frame
Product Type: Rack Frame
Rack Height: 8U
Weight (Approximate): 10.82 kg
Width: 534.9 mm


Basic

Application/Usage:
LAN Switch

Patch Panel

Brand Name:
StarTech.com

Colour:
Black

Depth:
335 mm

Form Factor:
Wall Mountable

Height:
495 mm

Material:
Steel Frame

Product Type:
Rack Frame

Rack Height:
8U


Weight (Approximate):

10.82 kg

Width:
534.9 mm
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
RK812WALLOA

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Product Name:
8U Open Frame Wall Mount Equipment Rack - Adjustable Depth

Product Type:
Rack Frame
Miscellaneous

Additional Information:
  • Adjustable rails 12-20" depth options
  • Wall mount holes are 16" from center to center for mounting to any standard wooden studs (easily mounts to concrete or steel as well)
  • Package includes necessary hardware for mounting the components
  • Flat packaging for easy low cost transportation, yet quick assembly
  • Low cost rugged design for simple implementation

Environmental Certification:
RoHS

Environmentally Friendly:
Yes

Package Contents:
  • 8U Open Frame Wall Mount Equipment Rack - Adjustable Depth
  • 16 x M5 Cage Nuts
  • 16 x M5 Cabinet Screws
Physical Characteristics

Colour:
Black

Depth:
335 mm

Form Factor:
Wall Mountable

Height:
495 mm

Material:
Steel Frame

Maximum Weight Capacity:
80 kg

Rack Height:
8U


Weight (Approximate):

10.82 kg

Width:
534.9 mm
Technical Information

Application/Usage:
LAN Switch

Patch Panel
Warranty

Limited Warranty:
2 Year
