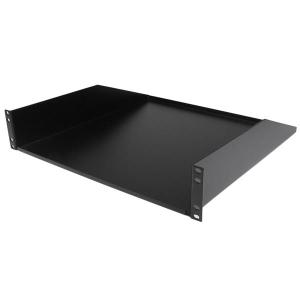

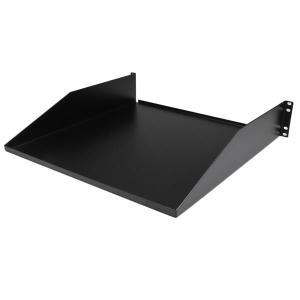

Startech 2U Rack Mount Cantilever Shelf - Heavy Duty Fixed Server Rack Cabinet Shelf - 125lbs / 56kg CABSHELFHD
Features
(Pictures are For Illustration Purposes Only)
Startech's MPN:
CABSHELFHD
Add a high-capacity fixed shelf into almost any server rack or cabinet
2U Heavy Duty Fixed Rackmount Shelf
Fits all standard 19" server racks
TAA compliant for GSA Schedule purchases
The CABSHELFHD 2U 18in Depth Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity 2U shelf to virtually any standard 19-inch server rack or cabinet with front mount options. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
This high-capacity server rack shelf is constructed using 2.3mm SPCC commercial grade cold-rolled steel, providing the additional strength required to hold up to 56kg (125lbs) of equipment - a perfect solution for storing larger, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.
Backed by a StarTech.com Lifetime warranty.
The StarTech.com Advantage
Heavy duty server rack shelf provides the ability to hold up to 56kg (125lbs) of equipment
Universal 19" rack design makes it simple to add a storage shelf to almost any rack or cabinet
Durable steel construction holds up to even the harshest industrial environments
Applications
Supply additional storage space for heavy, mission critical hardware and non-rack mount equipment
For use with all 19" wide Server Racks and Cabinets
Warranty Information
Warranty
Lifetime
Hardware
Frame Type
Steel
Mounting Options
Front Mount (Front Only)
U Height
2U
Performance
Weight Capacity
125 lb [56.6 kg]
Physical Characteristics
Color
Black
Enclosure Thickness
0.1 in [2.3 mm]
Enclosure Type
Steel
External Depth
18 in [457.2 mm]
External Height
3.5 in [88 mm]
External Width
19 in [482.7 mm]
Product Weight
10.7 lb [4.9 kg]
Packaging Information
Shipping (Package) Weight
13 lb [5.9 kg]
What's in the Box
Included in Package
1 - 2U High Cap Rack Shelf
8 - M6 Screws
8 - M6 Cage Nuts
1 - Instruction Manual
1U Rack Mount Cantilever Shelf Heavy Duty Fixed Server Rack Cabinet Shelf 125lbs 56kg
Brand Name : StarTech.com
Colour : Black
Depth : 457.2 mm
Height : 88.9 mm
Material : Cold-rolled Steel (CRS)
Product Type : Rack Shelf
Rack Height : 2U
Rack Width : 482.60 mm
Weight (Approximate) : 4.85 kg
Width : 482.6 mm
Basic
Brand Name:
StarTech.com
Colour:
Black
Depth:
457.2 mm
Height:
88.9 mm
Material:
Cold-rolled Steel (CRS)
Product Type:
Rack Shelf
Rack Height:
2U
Rack Width:
482.60 mm
Weight (Approximate) :
4.85 kg
Width:
482.6 mm
General Information
Brand Name:
StarTech.com
Manufacturer Part Number:
CABSHELFHD
Manufacturer Website Address:
http://www.startech.com/au
Manufacturer:
StarTech.com
Product Name:
Rack Shelf
Product Type:
Rack Shelf
Miscellaneous
Additional Information:
Front mount (front only)
Supply additional storage space for heavy, mission critical hardware and non-rack mount equipment
Physical Characteristics
Colour:
Black
Depth:
457.2 mm
Height:
88.9 mm
Material:
Cold-rolled Steel (CRS)
Maximum Weight Capacity:
56.70 kg
Rack Height:
2U
Rack Width:
482.60 mm
Weight (Approximate) :
4.85 kg
Width:
482.6 mm
Product Information
Maximum Weight Capacity:
56.70 kg
Width:
482.6 mm
Technical Information
Maximum Weight Capacity:
56.70 kg
