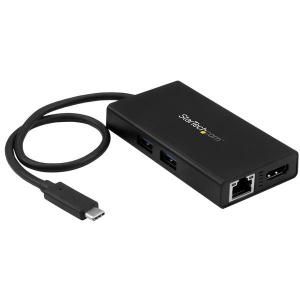

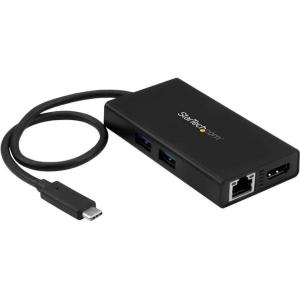

Startech USB-C Multiport Adapter for Laptops - Power Delivery - 4K HDMI - GbE - USB 3.0 DKT30CHPD

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

DKT30CHPD




Power and charge your laptop through USB Type-C (5Gbps), and create a workstation virtually anywhere you go, adding 4K video, GbE, and two USB 3.0 ports


  • Expands the connectivity of your port-limited laptop, using the convenient built-in USB-C cable


  • Power both the multiport adapter and your laptop simultaneously, using your laptop’s USB-C based power adapter (supports USB Power Delivery 2.0)


  • Provides 4K Ultra HD (3840 x 2160p) HDMI video output with 30Hz refresh rate, two USB 3.0 ports, and a Gigabit Ethernet port


Here’s a vital accessory for your USB-C™ equipped laptop. This USB-C multiport adapter lets you create a workstation while you're in the office, or when you travel. And, because it supports USB Power Delivery, you can power and charge your laptop through your USB Type-C ™ port, while simultaneously powering the adapter. It fits nicely in smaller, constrained workspaces, plus you can travel lighter and more conveniently using just a single power adapter instead of multiple.


Now, you can create a permanent or temporary workstation, virtually anywhere. Plus, it’s one of the first USB-C adapters to integrate power delivery, making it a must-have accessory if you have a USB-C charged laptop, Chromebook™, or MacBook.


Easy-to-use USB-C cable


This multiport USB-C adapter converts the video, data, and power input capabilities of your laptop’s USB-C port into five individual ports. With additional connectivity, you can save money and use the adapter with your existing peripherals, instead of having to purchase new devices. Plus, it offers a built-in, easy-to-use USB Type-C cable, so you will be able to connect to your laptop without having to carry around a separate host cable.


The next-generation USB-C cable is small and reversible, which makes it easier to insert into your laptop. You can connect the plug with either side facing up, so there’s less risk of damaging your laptop port. Plus, because it uses USB-C, the adapter is Thunderbolt™ 3 port compatible, so you can connect it to your Thunderbolt 3 equipped laptop.


Now, you can spend more time working, and less time setting up your workstation.


More convenience with power and port design


If you’re tired of connecting or carrying multiple power adapters with you when you travel, then this multiport adapter can help. It features a USB-C port that supports USB Power Delivery 2.0 (USB PD 2.0), so you can use your laptop’s USB-C power adapter to power both your laptop, and the multiport adapter.


The versatile multiport adapter is compact and lightweight, making travel easier and more convenient, so you can set up a workstation virtually anywhere you work or visit. Because it consolidates multiple ports into a single adapter, you eliminate the need to connect or travel with multiple single-function adapters.


The adapter’s extended-length cable provides you with more desk placement options, which makes it easier to create a comfortable, space-efficient work area. The 34 cm (13 in.) cable lets you place the adapter exactly where you need it. The cable is long enough to reach your laptop or tablet’s USB Type-C port, regardless of where the port is located. Now, you can eliminate the frustration of having a host cable that's too short to reach your laptop’s port location.

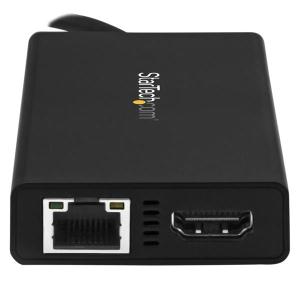

Easily connect a 4K Ultra HD display, and two USB 3.0 devices


When coupled with your laptop display, this versatile USB-C multiport adapter makes it easy to create a dual-monitor workstation when you need it. It offers a 4K HDMI® (with audio) port, so you can easily connect a high-resolution monitor and gain access to more screen space. With higher resolutions, you can view more windows at once and increase your overall productivity.

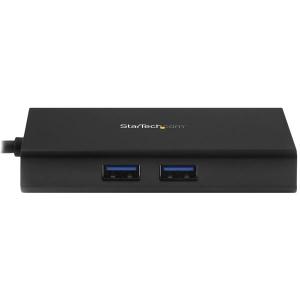

With two additional USB 3.0 ports, as well as Gigabit Ethernet, the adapter gives you the vital connectivity you need when you're in the office or when you travel. And because it features USB-A ports, you can connect your current peripherals and avoid the added cost of purchasing a newer USB-C device.


The DKT30CHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP alt mode.


Applications
  • Power the adapter and your laptop through USB-C, using your laptop’s power adapter
  • Integrate the adapter into small workspaces in offices and home offices
  • Connect your laptop to a projector and enjoy multimedia content at home, or display engaging presentations in boardrooms and classrooms
  • Use an HDMI port-equipped television in a hotel room as an external display when traveling
  • Connect your MacBook, Ultrabook™, or Chromebook™ to wired Gigabit internet, in locations where Wi-Fi® isn't available

Warranty Information

Warranty

3 Years

Hardware

4K Support

Yes

Bus Type

USB-C

Chipset ID

VLI - VL813 (USB 3.0 Hub)

VLI - VL100 (USB Power Delivery)

Chrontel - CH7525A (HDMI)

ASIX - AX88179 (LAN)

Displays Supported

1

Fast-Charge Port(s)

No

Industry Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

USB 3.0 - Backward compatible with USB 2.0 and 1.1

Performance

Auto MDIX

Yes

Compatible Networks

10/100/1000 Mbps

Full Duplex Support

Yes

Maximum Data Transfer Rate

5 Gbps (USB 3.0)

2 Gbps (Ethernet; Full-Duplex)

Maximum Digital Resolutions

4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz

Maximum Power Delivery Support

60 W

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

Connector(s)

Connector Type(s)

1 - USB Type-C (24 pin) USB 3.0 Male

1 - HDMI (19 pin) Female

1 - RJ-45 Female

2 - USB Type-A (9 pin) USB 3.0 Female

1 - USB Type-C (24 pin) USB 3.0 Female

Software

OS Compatibility

Windows® 7, 8, 8.1, 10

Mac OS® 10.9 to 10.12

Chrome OS™

Special Notes / Requirements

Note

Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.

The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.

A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)

USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.

System and Cable Requirements

A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)


Optional:
USB-C power adapter (for example, your laptop’s USB-C based power adapter)

Power

Power Source

USB-Powered

Environmental

Humidity

0~85% RH (Non-condensing)

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 65°C (14°F to 149°F)

Physical Characteristics

Cable Length

13.7 in [348 mm]

Color

Black

Enclosure Type

Plastic

Product Height

0.7 in [18 mm]

Product Length

3.8 in [96 mm]

Product Weight

2.3 oz [66 g]

Product Width

2 in [51 mm]

Packaging Information

Shipping (Package) Weight

6.9 oz [195 g]

What's in the Box

Included in Package

1 - USB-C multiport adapter

1 - quick-start guide



USB-C Multifunction Adapter for Laptops - Power Delivery - 4K HDMI - GbE - USB 3.0 - USB Type-C Laptop Adapter - USB C Adapter with USB Power Delivery 2.0


Brand Name: StarTech.com
Cable Type: HDMI/RJ-45/USB
Colour: Black
Connector on First End: 1 x Type C Male USB
Connector on Second End: 1 x HDMI Female Digital Audio/
Connector on Second End: 1 x Type C Female USB
Packaged Quantity: 1
Product Type: Data/Video/Network Cable


Basic

Brand Name:

StarTech.com

Cable Type:

HDMI/RJ-45/USB

Colour:

Black

Connector on First End:

1 x Type C Male USB

Connector on Second End:

1 x HDMI Female Digital Audio/

1 x Type C Female USB

Packaged Quantity:

1

Product Type:

Data/Video/Network Cable
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

DKT30CHPD

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

USB-C Multifunction Adapter for Laptops - Power Delivery - 4K HDMI - USB 3.0

Product Type:

Data/Video/Network Cable
Physical Characteristics

Colour:

Black


Weight (Approximate):

65.2 g
Technical Information

Cable Type:

HDMI/RJ-45/USB

Connector on First End:

1 x Type C Male USB

Connector on Second End:

1 x HDMI Female Digital Audio/Video

1 x Type C Female USB

Data Transfer Rate:

640 MB/s

Device Supported:

Chromebook

MacBook

Monitor

Features:

Lightweight

Supported Resolution:

3840 x 2160
Warranty

Limited Warranty:

2 Year
