Startech USB 3.0 to HDMI External Video Card Multi Monitor Adapter with 1-Port USB Hub – 1920x1200 / 1080p USB32HDEH

Features
usb32hdeh hdmi adapter chipset video

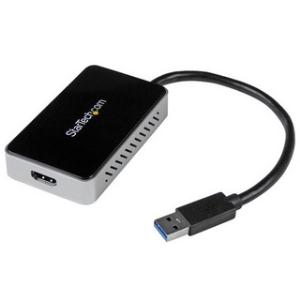

Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

USB32HDEH




Connect an HDMI-equipped display through USB 3.0, while keeping the USB 3.0 port available


  • High-Definition resolution support (up to 1920x1200/1080p)


  • Built in 1-Port USB 3.0 Hub


  • SuperSpeed USB 3.0 (5 Gbps) Interface, backward compatible with USB 2.0


The USB32HDEH USB 3.0 to HDMI® Adapter turns a USB 3.0 port into an HDMI output port with 1920x1200/1080p video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the HDMI adapter – an ideal workaround for Ultrabook™ or laptop users, where only a limited number of USB ports are available.


Functioning as an external graphics card, this USB to HDMI adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).


Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your HDMI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity. The included HDMI to DVI adapter also allows you to use this device with a DVI display.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Recommended System Requirements:


Cpu:
Quad Core 2.4GHz or Higher (i5 recommended)


Ram:
4GB or higher


The StarTech.com Advantage
  • Keep a USB 3.0 port available on your Ultrabook or slim laptop, using the built-in USB 3.0 hub
  • Enjoy smooth, high-definition video content, using a high bandwidth USB 3.0 connection

Applications
  • Add a secondary HDMI display with full HD capability
  • Add multi-monitor capability to a single computer, to create engaging multimedia presentations
  • View large or multiple spreadsheets across several displays
  • Use the adapter to connect your PC to your HDMI-equipped projector or display for viewing family pictures and movies
  • Great for researchers and writers offering the ability to have reference material on one display and a working document copy on the other
  • Run multiple applications on different screens - check your email on one display and search the web on the other

Warranty Information

Warranty
2 Years

Hardware

Audio
Yes

Chipset ID
MCT Trigger T6-688SL

Industry Standards
SuperSpeed USB 3.0, USB 2.0

Memory
16MB DDR II

Output Signal
HDMI

USB Pass-Through
Yes

Performance

Audio Specifications
2-Channel Stereo (48Khz)

General Specifications
This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.

Maximum Digital Resolutions
1920x1200

Supported Resolutions

Widescreen(16/32 Bit):


1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720



Standard(16/32 Bit):


1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600

Wide Screen Supported
Yes

Connector(s)

Connector A
1 - USB Type-A (9 pin) USB 3.0 Male

Connector B
1 - HDMI (19 pin) Female

1 - USB Type-A (9 pin) USB 3.0 Female

Software

Microsoft WHQL Certified
Yes

OS Compatibility
Windows® 10 (32/64)

Windows 8 / 8.1 (32/64)

Windows 7(32/64)

Windows Vista (32/64)

Windows XP (32/64)

Special Notes / Requirements

Note
Connect a maximum of five USB32HDEH adapters on a single PC - See manual for system requirements

System and Cable Requirements

Cpu:
i3 Dual core 2.8GHz


Ram:
2GB or higher



Full Hd Video:



Cpu:
Quad Core 2.4GHz or Higher (i5 recommended)


Ram:
4GB or higher

Power

Power Source
USB-Powered

Environmental

Humidity

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-10°C to 75°C (14°F to 167°F)

Physical Characteristics

Cable Length
6.3 in [160 mm]

Color
Black

Enclosure Type
Plastic

Product Height
0.7 in [17 mm]

Product Length
3.3 in [85 mm]

Product Weight
2.6 oz [75 g]

Product Width
1.9 in [49 mm]

Packaging Information

Shipping (Package) Weight
0.5 lb [0.2 kg]

What's in the Box

Included in Package
1 - USB 3.0 to HDMI Adapter

1 - HDMI to DVI adapter

1 - Software CD

1 - Manual



USB 3.0 to HDMI External Video Card Multi-Monitor Graphics Adapter With 1-Port USB Hub - 1920x1200 / 1080p - USB 3 Video Card Adapter


Brand Name: StarTech.com
Chipset Line: Trigger
Chipset Manufacturer: MCT
Chipset Model: T5-302
Chipset Series: 5
Form Factor: External
HDMI: Yes
Host Interface: USB 3.0
Maximum Resolution: 1920 x 1200
Memory Technology: DDR2 SDRAM
Product Type: Graphic Adapter
Standard Memory: 16 MB


Basic

Brand Name:
StarTech.com

Chipset Line:
Trigger

Chipset Manufacturer:
MCT

Chipset Model:
T5-302

Chipset Series:
5

Form Factor:
External

HDMI:
Yes

Host Interface:
USB 3.0

Maximum Resolution:
1920 x 1200

Memory Technology:
DDR2 SDRAM

Product Type:
Graphic Adapter

Standard Memory:
16 MB
Display & Graphics

Maximum Resolution:
1920 x 1200
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
USB32HDEH

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
USB 3.0 to HDMI Adapter

Product Type:
Graphic Adapter

Maximum Resolution:
1920 x 1200
Interfaces/Ports

HDMI:
Yes

Host Interface:
USB 3.0

Number of HDMI Outputs:
1
Memory

Memory Technology:
DDR2 SDRAM

Standard Memory:
16 MB
Miscellaneous

Form Factor:
External

Platform Supported:
PC

System Requirements:

System and Cable Requirements:



Cpu:
i3 Dual core 2.8GHz


Ram:
2GB or higher



Full Hd Video:



Cpu:
Quad Core 2.4GHz or Higher (i5 recommended)


Ram:
4GB or higher

Operating System(s):

  • Windows XP (32/64 bit)
  • Windows Vista (32/64 bit)
  • Windows 7 (32/64 bit)
  • Windows 8 (32/64 bit)
Physical Characteristics

Form Factor:
External

Height:
17.8 mm

Length:
83.8 mm

Platform Supported:
PC

Thickness:
48.3 mm


Weight (Approximate):

73.7 g
Processor & Chipset

Chipset Line:
Trigger

Chipset Manufacturer:
MCT

Chipset Model:
T5-302

Chipset Series:
5
Product Information

Form Factor:
External

Length:
83.8 mm

Packaged Quantity:
1

Platform Supported:
PC

Thickness:
48.3 mm
Technical Information

Digital Signal:
Yes

Host Interface:
USB 3.0

Length:
83.8 mm

Maximum Resolution:
1920 x 1200

Memory Technology:
DDR2 SDRAM

Platform Supported:
PC
Video

Maximum Resolution:
1920 x 1200
