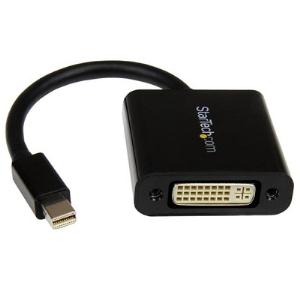

Startech Mini DisplayPort to DVI Video Adapter Converter - Black Mini DP to DVI - 1920x1200 MDP2DVI3

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

MDP2DVI3

Connect a DVI Display to a Mini DisplayPort Video Source

Easy to use cable-style adapter, with no software required
Supports resolutions up to 1920x1200 (WUXGA) and HDTV resolutions up to 1080p
Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal

The MDP2DVI3 Mini DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source (desktop PC, laptop, etc.) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports display or projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP standards.

MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI® signals can also be passed through the port.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Simple to use converter makes Mini DisplayPort output backward compatible with your existing DVI display or projector
Save time with a simple plug-and-play solution; no software or driver installation required

Applications

Connect your existing DVI monitor to Mini DisplayPort output device
Ideal for using your DVI monitor as a secondary display

Warranty Information
Warranty	2 Years
Hardware
Adapter Style	Adapter
Audio	No
Converter Type	Passive
Output Signal	DVI-D (DVI Digital)
Performance
Maximum Digital Resolutions	1920x1200 / 1080p
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - Mini-DisplayPort (20 pin) Male
Connector B	1 - DVI-I (29 pin) Female
Special Notes / Requirements
System and Cable Requirements	DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through
Environmental
Humidity	40%-85%RH
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	0°C to 70°C (32°F to 158°F)
Physical Characteristics
Color	Black
Product Height	0.6 in [15 mm]
Product Length	6.7 in [170 mm]
Product Weight	1.2 oz [34.8 g]
Product Width	1.6 in [40 mm]
Packaging Information
Shipping (Package) Weight	0.1 lb [0.1 kg]
What's in the Box
Included in Package	1 - 6ft Mini DisplayPort® to DVI Adapter

Mini DisplayPort to DVI Adapter - Black Mini DP to DVI Video Converter - 1920x1200 - Mini-DisplayPort (M) to DVI-I (F)

Brand Name: StarTech.com

Cable Type: DVI/Mini DisplayPort

Colour: Black

Connector on First End: 1 x Mini DisplayPort Male Digi

Connector on Second End: 1 x DVI-I Female Video

Packaged Quantity: 1

Product Type: Video Cable

Basic
Brand Name:	StarTech.com
Cable Type:	DVI/Mini DisplayPort
Colour:	Black
Connector on First End:	1 x Mini DisplayPort Male Digi
Connector on Second End:	1 x DVI-I Female Video
Packaged Quantity:	1
Product Type:	Video Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	MDP2DVI3
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Marketing Content:	The Mini DisplayPort to DVI Adapter lets you connect your Mini DisplayPort video source (desktop PC, laptop, etc.) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
Packaged Quantity:	1
Product Name:	6ft Mini DisplayPort to DVI Adapter
Product Type:	Video Cable

Miscellaneous
Certifications & Standards:	FCC CE
Device Supported:	Projector
	Video Device
Green Compliance Certificate/Authority:	RoHS
Green Compliant:	Yes

Physical Characteristics
Colour:	Black
Weight (Approximate):	34.8 g

Product Information
Device Supported:	Projector
	Video Device
Packaged Quantity:	1

Technical Information
Cable Type:	DVI/Mini DisplayPort
Conductor:	Copper
Connector on First End:	1 x Mini DisplayPort Male Digital Audio/Video
Connector on Second End:	1 x DVI-I Female Video
Device Supported:	Projector
	Video Device

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 557767

Vendor Part No MDP2DVI3

UPC/EAN Number 065030848695
