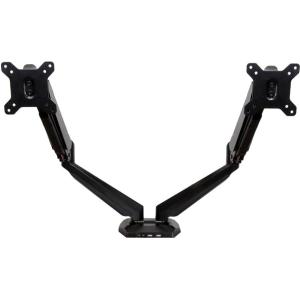

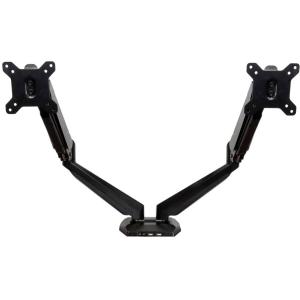

Startech Desk-Mount Dual Monitor Arm - Full Motion Articulating ARMSLIMDUO

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

ARMSLIMDUO




Increase productivity by mounting two monitors up to 30”, with full-motion articulation


  • Dual monitor mount supports two 12” to 30” monitors, side-by-side


  • Two independent arms with full-motion articulation and spring-assisted height adjustment


  • Two USB pass-through ports and two 3.5 mm audio ports


Enhance productivity and free up valuable space with the ARMSLIMDUO Dual-Monitor Arm. Two independent arms make it easy to adjust your dual-monitor setup, plus two USB pass-through ports and headset plugs provide easy accessibility to ports.


Create a more ergonomic dual-monitor setup

Free up valuable space by mounting two monitors over your desktop, side by side.


When you mount your displays on a dual-monitor arm above your desk or table surface, you can adjust your display height, position and viewing angles easily to create a more comfortable and ergonomic work environment. You also get the added benefit of reclaiming valuable workspace by clearing monitor stands off your desk, plus the cable management system keeps cables neatly tucked away.


The dual-arm monitor mount holds two 12” to 30” monitors, side-by-side, with ease. Each arm supports up to 8.0 kg (17.6 lb.) of weight.


Built-in USB pass-through ports and audio ports


The ARMSLIMDUO gives you easy access to two USB pass-through ports and two audio ports located at the front of the base. The ports let you conveniently extend the ports on your PC or laptop, using the integrated cables. This lets you plug in your microphone, headset or USB devices, without having to reach around to access the ports on your computer. It also gives you a cleaner cable setup, which adds to a more productive, less cluttered work space.


Full-motion arms with articulation and spring-assisted height adjustment


The desk-mount monitor arms offer a full range of motion on several axes, letting you tilt, pan and rotate your monitors to adjust your viewing angle any time to suit your changing needs. To view longer pages or blocks of code without scrolling, the arms also support landscape-to-portrait display rotation for each monitor.


The spring-assisted height adjustment makes raising or lowering your monitors effortless. You can also adjust the tension to your own preference.


Durable construction and easy setup


With its durable aluminum construction, the ARMSLIMDUO securely holds two monitors using a standard VESA mount. The C-clamp makes it easy to install the dual-monitor arm mount to your desk or table. The fast insert function makes it easy to attach your monitor.


The ARMSLIMDUO is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Applications
  • Mount dual displays to the side of your desk or table, with a wide range of adjustment capability
  • Ideal for busy work environments such as health care centers, financial and commercial environments
  • Spread displays apart or position them back-to-back for multi-user workstations
  • Rotate displays to portrait orientation for web design and coding

Warranty Information

Warranty

2 Years

Hardware

# of displays supported

2

Articulating

Yes

Height Adjustment

One-touch (spring assisted)

Mounting Options

Desk Clamp

VESA Hole Pattern(s)

75x75 mm

100x100 mm

Performance

Display Rotation

360°

Height Adjustment

Yes

Maximum Arm Extension

22.3 in [567.5 mm]

Maximum Arm Span

44.7 in [1135 mm]

Maximum Display Size

30in

Mounting Surface Thickness

90 mm (3.54 in.)

Pan

180°

Swivel / Pivot

135° around the support post

360° at the elbow

Tilt

+90° / -65°

Weight Capacity

17.7 lb [8 kg]

Physical Characteristics

Color

Black

Enclosure Type

Aluminum

Packaging Information

Shipping (Package) Weight

264 oz [7480 g]

What's in the Box

Included in Package

1 - mounting arm

2 - desk clamps (upper bracket)

2 - desk clamps (lower bracket)

2 - VESA monitor mounts

8 - M4x12 mm screws

8 - M4x30 mm screws

8 - plastic spacers

1 - M4 Allen key

1 - M5 Allen key

8 - M6x12mm screws

4 - M8x12 mm screws

2 - rubber pads

1 - instruction manual



Dual Monitor Mount with Built-in 2-port USB and Audio Pass-Through - Supports Two Monitors up to 30in Side-by-Side - Full-Motion Articulation - Spring-Assisted Height Adjustment


Brand Name: StarTech.com
Device Supported: Monitor
Maximum Load Capacity: 8.03 kg
Maximum Screen Size Supported: 76.2 cm (30")
Product Type: Clamp Mount
VESA Mount Standard: 100 x 100
VESA Mount Standard: 75 x 75


Basic

Brand Name:

StarTech.com

Device Supported:

Monitor

Maximum Load Capacity:

8.03 kg

Maximum Screen Size Supported:

76.2 cm (30")

Product Type:

Clamp Mount

VESA Mount Standard:

100 x 100

75 x 75
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

ARMSLIMDUO

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Product Name:

Dual Monitor Mount with Built-in 2-port USB and Audio Pass-Through

Product Type:

Clamp Mount
Miscellaneous

Environmentally Friendly:

Yes
Physical Characteristics

Colour:

Black

VESA Mount Standard:

100 x 100

75 x 75
Product Information

Device Supported:

Monitor

Maximum Load Capacity:

8.03 kg

Maximum Screen Size Supported:

76.2 cm (30")

Number of Displays Supported:

2
