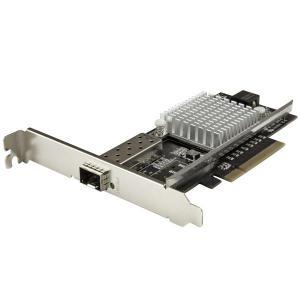

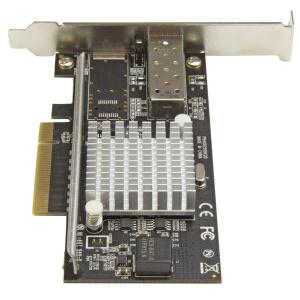

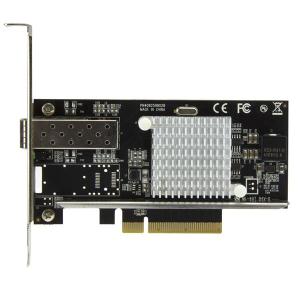

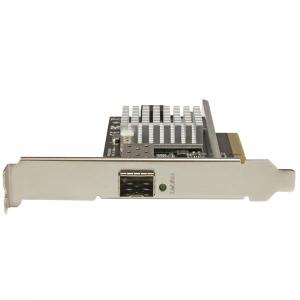

Startech 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM PEX10000SFPI

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

PEX10000SFPI




Get advanced connectivity over multimode or single-mode fiber, by adding a 10GBase-LR/SR open SFP+ port to your server or workstation


  • Add a 10GbE SFP+ slot to your server or workstation for fast, high bandwidth connectivity, compatible with SR or LR transceivers


  • Compatible with multimode or single-mode fiber


  • Intel 82599 chipset with Intel Virtualization Technology for Connectivity


This fiber network card delivers reliable, high-performance network connectivity, by adding an open SFP+ slot to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade your server or workstation to a 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multimode or single-mode fiber.


Increase your network speed


Several factors drive the need for more bandwidth in your network infrastructure. An increase in the number of network users and data-intensive applications, such as multimedia streaming and large file transfers all contribute to the need for more bandwidth in your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.

Add scalable network connections to your server or workstation


The fiber NIC is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options for connecting your computer directly to a fiber network, at greater distances.


The card features an open SFP+ slot with support for one interchangeable 10GBase SFP+ module. This gives you the option to use the fiber transceiver module that best suits your network needs based on distance and connector type. StarTech.com offers a variety of SFP+ transceiver modules including the SFP10GLRST single-mode SFP+ the SFP10GLRMST multi-mode SFP+, and SFP10GSRST multimode LC with DDM


In addition, StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities


The 10 Gigabit network card features the Intel® 82599 chipset, delivering the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 15K jumbo frame support.


The PEX10000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Add 10Gbps network connectivity to file or application servers and high-performance workstations
  • Transmit full 10 Gigabit network speeds to a remote terminal over longer distances than copper cabling
  • Supports secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
  • Upgrade your onboard network adapter to 10 Gigabit SFP+, for faster communication
  • Create a video / audio editing console with 10Gbps access to network storage
  • Ideal for remote embedded industrial monitoring systems, and high-speed video surveillance

Warranty Information

Warranty

2 Years

Hardware

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Chipset ID

Intel 82599

Industry Standards

IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM)

PCI Express Rev 2.0, using PCIe x8 (or higher) slot

Interface

Fiber (10 Gigabit Ethernet)

Ports

1

Performance

Compatible Networks

10 Gbps

Full Duplex Support

Yes

Jumbo Frame Support

15K max.

Maximum Data Transfer Rate

10 Gbps

Promiscuous Mode

Yes

Supported Protocols

IEEE 802.3ad (Link Aggregation)

IEEE 802.3x (Flow Control Support)

IEEE 802.1Q (VLAN tagging)

Connector(s)

Connector Type(s)

1 - PCI Express x8 Male

Internal Ports

1 - SFP+ Slot Female

Software

OS Compatibility

Windows® 7, 8, 8.1, 10

Windows Server® 2008 R2, 2012, 2012 R2, 2016

Linux 2.6.24 to 4.4.x LTS Versions only

Environmental

Humidity

20% ~ 80% RH

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color

Black

Product Height

4.7 in [120 mm]

Product Length

5.3 in [135 mm]

Product Weight

3.6 oz [102 g]

Product Width

0.7 in [18 mm]

Packaging Information

Shipping (Package) Weight

6.3 oz [178 g]

What's in the Box

Included in Package

1 - 10G open SFP+ fiber network card

1 - low-profile bracket

1 - quick-start guide



1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM - PCI Express 10G NIC with Open SFP+ - Compatible with SR or LR Transceivers - 10G Ethernet Network Adapter


Brand Name: StarTech.com
Device Supported: Server
Expansion Slot Type: SFP+
Form Factor: Plug-in Card
Host Interface: PCI Express x8
Network Technology: 10GBase-LR
Network Technology: 10GBase-SR
Product Type: 10Gigabit Ethernet Card
Total Number of Ports: 1


Basic

Brand Name:

StarTech.com

Device Supported:

Server

Expansion Slot Type:

SFP+

Form Factor:

Plug-in Card

Host Interface:

PCI Express x8

Network Technology:

10GBase-LR

10GBase-SR

Product Type:

10Gigabit Ethernet Card

Total Number of Ports:

1
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PEX10000SFPI

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM

Product Type:

10Gigabit Ethernet Card
I/O Expansions

Expansion Slot Type:

SFP+
Interfaces/Ports

Host Interface:

PCI Express x8

Total Number of Ports:

1
Media & Performance

Media Type Supported:

Optical Fiber
Miscellaneous

Device Supported:

Server
Network & Communication

Network Technology:

10GBase-SR
Physical Characteristics

Depth:

135 mm

Form Factor:

Plug-in Card

Height:

120 mm


Weight (Approximate):

102 g

Width:

18 mm
Warranty

Limited Warranty:

2 Year
