Startech 10-Port Industrial USB 3.0 Hub - ESD and Surge Protection ST1030USBM

Features

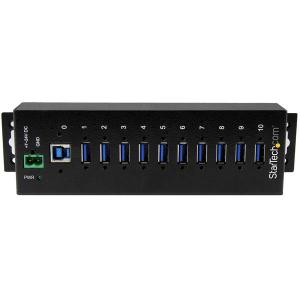

st1030usbm industrial devices ports power
Click to view full size

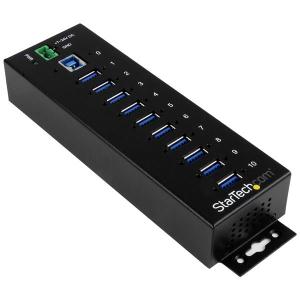

st1030usbm industrial devices ports power image 2
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

ST1030USBM




Add ten USB 3.0 (5Gbps) ports with this DIN rail or surface-mountable metal hub


  • Provides maximum USB scalability, with ten USB 3.0 Type-A ports


  • Protects your connected devices with 15kV ESD protection and 350-watt surge protection


  • Offers flexible, wide-range 7-24V DC terminal block power input (standard AC power adapter not supported or included)


This 10-port USB 3.0 hub gives you the scalability you need in harsh industrial environments. It’s designed to meet the advanced requirements of connecting a high number of devices in factory and industrial settings.


With a metal housing, you can depend on this industrial hub even in tough operating conditions. And because it offers more ports than most USB 3.0 hubs, you can access more devices at once, so you can work more efficiently and save time.

Photo of the hub installed on a DIN rail in a test bench environment


Connect more USB devices


Designed for a high volume of connections in industrial environments, this robust USB 3.0 hub offers ten connection ports, unlike most four or seven-port USB 3.0 (also known as USB 3.1 Gen 1) hubs.


With more ports you can connect more devices, such as USB-based control equipment, external storage, and more. Plus, you can avoid the aggravation of connecting and disconnecting devices when all ports are occupied.


The hub also supports USB Battery Charging Specification 1.2, delivering up to 1.5 amps power to each USB port, so you can charge your mobile devices faster than traditional USB ports allow.


Perfect for harsh industrial environments


This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. And because it supports wide-range 7-24V DC terminal block input, you have the flexibility to power the hub as required, based on your own power input capabilities.


Perfect for factory environments, the rugged hub also supports an extended operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.


Locate the hub where you need it most


With versatile installation options, you can install the hub where it’s best suited for your environment. You can securely mount the USB 3.0 hub to a surface, wall, or under a desk, and, it includes optional DIN rail mounts for use with equipment rack installations.


Works with your older USB devices


The industrial hub supports the full 5Gbps bandwidth of USB 3.0 and is also backward compatible with previous USB devices. You can connect your legacy USB 2.0 and 1.x peripherals alongside your newer USB 3.0 devices without any disruptions.


The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Install the hub in tough conditions that are subject to large temperature variances, or where there’s a risk of physical damage
  • Deploy on assembly lines where only terminal block power is available
  • Connect a variety of USB devices such as industrial printers or cameras, plus fast-charge your smartphone and tablet

Warranty Information

Warranty
2 Years

Hardware

Bus Type
USB 3.0

Chipset ID
Genesys Logic - GL3520

Fast-Charge Port(s)
Yes

Industry Standards
USB Battery Charging Specification Rev. 1.2

USB 3.0 - Backward compatible with USB 2.0/1.1

Interface
USB 3.0

Ports
10

USB-C Device Port(s)
No

USB-C Host Connection
No

Performance

Maximum Data Transfer Rate
5 Gbps

MTBF
119388 hours

Surge Protection
15kV ESD protection

350 W surge protection

Type and Rate
USB 3.0 - 5 Gbit/s

Connector(s)

Connector Type(s)
10 - USB Type-A (9 pin) USB 3.0 Female

1 - USB Type-B (9 pin) USB 3.0 Female

1 - Terminal Block (2 Wire)

Software

OS Compatibility
OS Independent; No additional drivers or software required

Special Notes / Requirements

Note
If connected to a USB 2.0 host port, performance may be limited

This product is intended for use with terminal block power only – Standard AC adapter not available

System and Cable Requirements
Host computer with an available USB 3.0 port

Indicators

LED Indicators
1 - Power (Green)

Power

Input Voltage
7 ~ 24 DC

Power Source
Terminal Block

Environmental

Humidity
5%~95% RH (Non-condensing)

Operating Temperature
0°C to 70°C (32°F to 158°F)

Storage Temperature
-20°C to 85°C (-4°F to 185°F)

Physical Characteristics

Cable Length
80 in [2032 mm]

Color
Black

Enclosure Type
Steel

Form Factor
Industrial

Product Height
1.2 in [31 mm]

Product Length
7.8 in [198 mm]

Product Weight
12.1 oz [343 g]

Product Width
2.2 in [56 mm]

Packaging Information

Shipping (Package) Weight
20 oz [567 g]

What's in the Box

Included in Package
1 - 10-port industrial USB 3.0 hub

1 - USB 3.0 host cable

1 - DIN rail mounting kit

1 - terminal block (2 wire)

1 - instruction manual



10 Port Industrial USB 3.0 Hub - ESD and Surge Protection - DIN Rail or Surface-Mountable Metal Housing - Rugged USB Hub w/ Terminal Block Power - Wide Operating Temperature Range


Brand Name: StarTech.com
Host Interface: USB
Product Type: USB Hub
Total Number of USB Ports: 10


Basic

Brand Name:
StarTech.com

Host Interface:
USB

Product Type:
USB Hub

Total Number of USB Ports:
10
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
ST1030USBM

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
10-Port Industrial USB 3.0 Hub - ESD and Surge Protection

Product Type:
USB Hub
Interfaces/Ports

Number of USB 3.0 Ports:
10

Total Number of USB Ports:
10
Miscellaneous

Environmentally Friendly:
Yes
Physical Characteristics

Colour:
Black

Height:
30.5 mm

Length:
198.1 mm


Weight (Approximate):

351.5 g

Width:
55.9 mm
Technical Information

Host Interface:
USB
