Startech 10 ft Mini DisplayPort to DisplayPort 1.2 Adapter Cable M/M - DisplayPort 4k MDP2DPMM10

Features

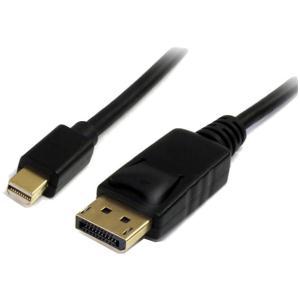

mdp2dpmm10 displayport cable mini type
Click to view full size
mdp2dpmm10 displayport cable mini connector image 2
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

MDP2DPMM10




Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor


  • High-resolution support of up to 4k x 2k


  • Support for High Bit Rate 2 (HBR2) bandwidth of up to 21.6 Gbps


  • Designed and manufactured to DisplayPort 1.2 standards


The MDP2DPMM10 10ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.


The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.


The MDP2DPMM10 is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.


The StarTech.com Advantage
  • Latching DisplayPort connector prevents accidental disconnection
  • Cost-effective solution for adding a standard DisplayPort connection to your Mini Displayport-equipped PC or Mac®
  • Guaranteed reliability

Applications
  • Connect a DisplayPort monitor or projector to devices equipped with a Mini DisplayPort connection port

Warranty Information

Warranty
Lifetime

Hardware

Cable Jacket Type
PVC - Polyvinyl Chloride

Cable Shield Type
Aluminum-Mylar Foil with Braid

Connector Plating
Nickel

Fire Rating
CMG Rated (General Purpose)

Number of Conductors
19

Connector(s)

Connector A
1 - Mini-DisplayPort (20 pin) Male

Connector B
1 - DisplayPort (20 pin) Male

Environmental

Humidity
20~80% RH

Operating Temperature

0&Amp;Deg:
C to 35°C (32°F to 95°F)

Storage Temperature

0&Amp;Deg:
C to 70°C (32°F to 158°F)

Physical Characteristics

Cable Length
10 ft [3 m]

Cable OD
0.2 in [4.8 mm]

Color
Black

Product Weight
3.7 oz [105 g]

Wire Gauge
32 AWG

Packaging Information

Shipping (Package) Weight
3.9 oz [110 g]

What's in the Box

Included in Package
1 - 10 ft Mini DisplayPort™ to DisplayPort 1.2 Adapter Cable - M/M



10 ft Mini DisplayPort to DisplayPort Adapter Cable - M/M


Brand Name: StarTech.com
Cable Length: 3.05 m
Cable Type: DisplayPort/Mini DisplayPort
Colour: Black
Connector on First End: 1 x DisplayPort Male Digital A
Connector on Second End: 1 x Mini DisplayPort Male Digi
Packaged Quantity: 1
Product Type: A/V Cable


Basic

Brand Name:
StarTech.com

Cable Length:
3.05 m

Cable Type:
DisplayPort/Mini DisplayPort

Colour:
Black

Connector on First End:
1 x DisplayPort Male Digital A

Connector on Second End:
1 x Mini DisplayPort Male Digi

Packaged Quantity:
1

Product Type:
A/V Cable
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
MDP2DPMM10

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
10 ft Mini DisplayPort to DisplayPort 1.2 Adapter Cable M/M - DisplayPort 4k

Product Type:
A/V Cable
Miscellaneous

Certifications & Standards:


CMG Rated


Environmentally Friendly:
Yes
Physical Characteristics

Colour:
Black

Material:
Aluminum Mylar - Shielding

Foil - Shielding

Polyvinyl Chloride (PVC) - Jacket


Weight (Approximate):

105 g
Technical Information

Cable Length:
3.05 m

Cable Type:
DisplayPort/Mini DisplayPort

Conductor:
Copper

Connector Plating:
Nickel Plated

Connector on First End:
1 x 20-pin DisplayPort Male DisplayPort 1.2 Digital Audio/Video

Connector on Second End:
1 x 20-pin Mini DisplayPort Male DisplayPort 1.2 Digital Audio/Video

Device Supported:
Audio/Video Device

Monitor

Notebook

Projector

TV

Jacket Type:
CMG

Shielding:
Yes
