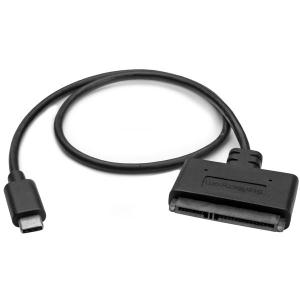

Startech USB 3.1 (10Gbps) Adapter Cable for 2.5” SATA Drives - USB-C USB31CSAT3CB

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

USB31CSAT3CB




Get ultra-fast access to data by connecting a 2.5" SATA SSD/HDD to your laptop’s USB-C port


  • Quick and easy external drive access through the USB-C port on your laptop


  • Connects directly to a 2.5” SATA SSD/HDD with no accessories required


  • Ultra-portable, powered directly from the USB port


Take advantage of the USB-C™ port on the latest MacBook, Chromebook Pixel™ or other laptop to get quick access to your external drive. This cable-style adapter lets you use the USB Type-C™ port to connect your laptop directly to a 2.5” solid-state drive or hard drive, and access it through ultra-fast USB 3.1 Gen. 2 (10Gbps). It’s fast and easy to connect to your SATA drives, with no additional accessories required.

USB powered for easy portability, the cable-style adapter connects to your laptop's USB-C port letting you access files on a 2.5 inch SSD or HDD.


Ultra-portable with no external power required


You can quickly access your valuable data, wherever you go, using this cable-style adapter. It’s USB powered, so there’s no external adapter required, and features a compact, lightweight design that you can easily tuck into your laptop bag or carrying case.


Convenient drive access


The adapter cable lets you quickly swap HDDs or SSDs without having to install your drives into an enclosure. You can copy or retrieve data from a 2.5" SSD or HDD quickly. It gives you easy access to your drive for data migration, drive cloning and data backup applications, with the fast performance of USB 3.1 Gen 2.


Connect easily, with USB-C


The integrated, easy-to-use USB Type-C connector is small and reversible, which makes for easier insertions. You can connect the plug with either side facing up, which means less risk of damaging your ports, and less frustration.


Harness the speed of USB 3.1 Gen 2

USB File Transfer Rates diagram shows USB 3.1 Gen 2 at 10 Gbps is twice the speed of USB 3.0 at 5 Gbps


USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.


The USB31CSAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Mobile technicians who need a quick and easy way to access the data on 2.5” hard drives or solid-state drives
  • Access any 2.5" hard drive or solid-state drive from your USB-C enabled computer, for data migration or drive cloning
  • Retrieve data from an old SATA drive

Warranty Information

Warranty

2 Years

Hardware

Bus Type

USB 3.1 Gen 2

Chipset ID

ASMedia - ASM1351

Compatible Drive Types

SATA

Drive Size

2.5in

Interface

USB 3.1 Gen 2

Number of 2.5 inch bays

1

Number of Drives

1

Performance

Hot Swap Capability

Yes

Max Drive Capacity

Currently tested with hard drives up to 2TB at 7200 RPM

Maximum Data Transfer Rate

10 Gbps

Trim Supported

Yes

Type and Rate

USB 3.1 Gen 2 - 10 Gbit/s

UASP Support

Yes

Connector(s)

Drive Connectors

1 - SATA Data & Power Combo (7+15 pin) Receptacle

Host Connectors

1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Male

Software

OS Compatibility

OS independent; No software or drivers required

Environmental

Humidity

40% ~ 50% RH

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-10°C to 55°C (14°F to 131°F)

Physical Characteristics

Color

Black

Enclosure Type

Plastic

Product Height

0.2 in [5 mm]

Product Length

1.8 in [45 mm]

Product Weight

1 oz [29 g]

Product Width

1.7 in [43 mm]

Packaging Information

Shipping (Package) Weight

1.4 oz [41 g]

What's in the Box

Included in Package

1 - USB 3.1 to SATA 2.5" HDD adapter cable with USB-C

1 - quick start guide



USB 3.1 Gen 2 (10 Gbps) Adapter Cable for 2.5in SATA Drives with USB-C - SATA I/II/III and UASP Support - Ultra-Portable External Drive Adapter Cable for 2.5in SSD/HDDs - USB Powered


Brand Name: StarTech.com
Cable Type: SATA/USB
Colour: Black
Connector on First End: 1 x SATA
Connector on Second End: 1 x Type C Male USB
Packaged Quantity: 1
Product Type: Data Transfer Cable


Basic

Brand Name:

StarTech.com

Cable Type:

SATA/USB

Colour:

Black

Connector on First End:

1 x SATA

Connector on Second End:

1 x Type C Male USB

Packaged Quantity:

1

Product Type:

Data Transfer Cable
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

USB31CSAT3CB

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

USB 3.1 (10Gbps) Adapter Cable for 2.5" SATA Drives - USB-C

Product Type:

Data Transfer Cable
Physical Characteristics

Colour:

Black


Weight (Approximate):

53.9 g
Technical Information

Cable Type:

SATA/USB

Connector on First End:

1 x 22-pin SATA 3.0 SATA

Connector on Second End:

1 x 24-pin Type C Male USB 3.1 USB

Data Transfer Rate:

1.25 GB/s

Device Supported:

Chromebook

Hard Drive

MacBook

Notebook

Solid State Drive

Features:

Lightweight
Warranty

Limited Warranty:

2 Year
