Startech 4-Port PCIe Gigabit Network Adapter Card ST1000SPEX43
Features

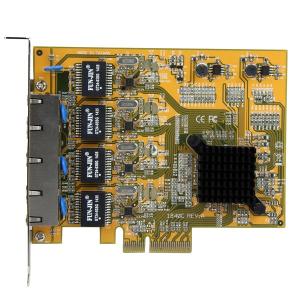

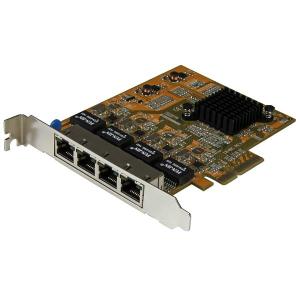

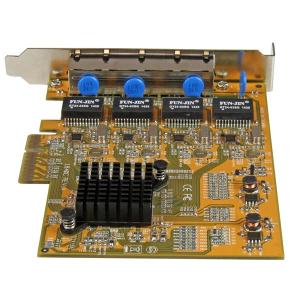

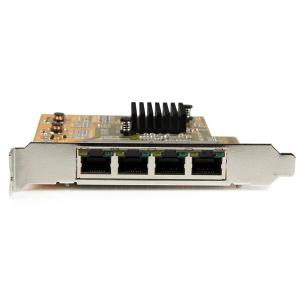

(Pictures are For Illustration Purposes Only)
Download Brochure
Startech's MPN:
ST1000SPEX43
Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot
Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers
Realtek RTL8111G chipset for reliable performance
Supports full-duplex flow control
Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.
Reliable connectivity to multiple networks
This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
A versatile and cost-effective solution
This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).
The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.
Applications
Provides simultaneous access to multiple networks for desktop PC clients, servers, and workstations that have a limited number of PCI Express slots available
Maximizes the number of RJ45 ports within a system or high-end workstations and servers
Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs
Provides redundant connectivity to ensure an uninterrupted network connection
Warranty Information
Warranty
2 Years
Hardware
Bus Type
PCI Express
Card Type
Standard Profile
Chipset ID
Realtek RTL8111G
Industry Standards
Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface
RJ45 (Gigabit Ethernet)
Ports
4
Performance
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Maximum Data Transfer Rate
2000Mbps (Full Duplex)
Promiscuous Mode
Yes
Connector(s)
Connector Type(s)
1 - PCI Express x4 Male
External Ports
4 - RJ-45 Female
Software
OS Compatibility
Windows® XP, 7, 8, 8.1, 10
Windows Server® 2003, 2012, 2016
Linux Kernel 2.4.x to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements
Available PCI Express x4 or higher (x8, x16) slot
Indicators
LED Indicators
4 - Link
4 - Activity
Environmental
Humidity
5% ~ 95% RH
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-40°C to 75°C (-40°F to 167°F)
Physical Characteristics
Color
Yellow
Product Height
0.7 in [18 mm]
Product Length
5.4 in [138 mm]
Product Weight
3.5 oz [100 g]
Product Width
4.7 in [120 mm]
Packaging Information
Shipping (Package) Weight
6.4 oz [180 g]
What's in the Box
Included in Package
1 - PCIe Gigabit network card - 4 port
4-Port PCI Express Gigabit Network Adapter Card - Quad-Port Gigabit NIC - Network Card with 4x 10/100/1000 RJ45 ports - Four Port PCIe Gigabit Ethernet Network Converter Card
Brand Name : StarTech.com
Device Supported : Server
Form Factor : Plug-in Card
Host Interface : PCI Express x4
Network Technology : 10/100/1000Base-T
Number of Network (RJ-45) Ports : 4
Product Type : Gigabit Ethernet Card
Total Number of Ports : 4
Basic
Brand Name:
StarTech.com
Device Supported:
Server
Form Factor:
Plug-in Card
Host Interface:
PCI Express x4
Network Technology:
10/100/1000Base-T
Number of Network (RJ-45) Ports:
4
Product Type:
Gigabit Ethernet Card
Total Number of Ports:
4
General Information
Brand Name:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Manufacturer:
StarTech.com
Packaged Quantity:
1
Product Name:
4-Port PCI Express Gigabit Network Adapter Card - Quad-Port PCIe Gigabit NIC
Product Type:
Gigabit Ethernet Card
Interfaces/Ports
Host Interface:
PCI Express x4
Number of Network (RJ-45) Ports:
4
Total Number of Ports:
4
Media & Performance
Media Type Supported:
Twisted Pair
Miscellaneous
Device Supported:
Server
Network & Communication
Network Technology:
10/100/1000Base-T
Physical Characteristics
Depth:
138 mm
Form Factor:
Plug-in Card
Height:
1.6 mm
Weight (Approximate) :
100 g
Width:
102 mm
