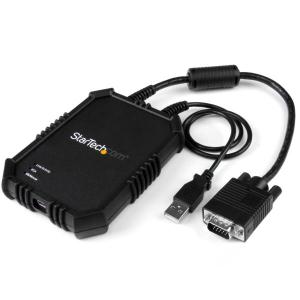

Startech Laptop-to-Server KVM Console with Rugged Housing NOTECONS02X

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

NOTECONS02X

Use this USB crash-cart adapter to turn your laptop into a portable KVM console for accessing servers, ATMs and kiosks with file transfer and video capture

Durable performance, with a rubberized housing
Maximum portability with a compact footprint, built-in KVM cables and USB power
Hassle-free setup with plug-and-play installation

This rugged and portable USB crash cart adapter lets you turn your laptop into a portable console for accessing servers, desktops and laptops, as well as ATMs, kiosks or any computing device that features both VGA and USB ports.

This adapter also supports local file transfer and video capturing built into the software.

Maximum durability

This crash cart adapter has been specifically designed for maximum durability. It features a rugged, rubberized housing that can handle drops by absorbing shock, to make sure that you’re equipped for unexpected challenges.

Hassle-free operation

Troubleshoot your devices quickly and easily. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server.

The crash cart adapter features a flexible software interface that offers robust performance. It enables you to transfer files from your laptop to the server, monitor and capture activity from the connected device as video for records or instructional purposes, and take screenshots and scale the display window to full-screen mode or smaller, without scroll bars.

Compact portability

This compact crash cart adapter lets you connect to a headless device using only a laptop, eliminating the need to lug around an awkward, traditional server room crash cart. With optimal portability in mind for your mobile administration or repairs, this pocket-sized adapter features a small footprint and lightweight design that easily fits inside your laptop bag.

The adapter is USB powered so you won't need to carry a power adapter. Plus, the KVM cables are attached to the crash cart adapter so you won't need additional accessories to connect it to your server. The built-in cables have been engineered with strain relief, preventing them from wearing or breaking.

Universal connectivity

With no server-side software installation required, the USB crash cart adapter provides BIOS-level control of any PC or device that has both a VGA port and a USB port.

The NOTECONS02X is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Travel to remote server rooms to perform on-site maintenance on a wide variety of servers and terminals
Keep your routine diagnostics and repairs portable, by replacing a bulky crash cart
Gain full console access to servers located in small spaces, or congested server racks where a fixed-installation console is not feasible
Perform maintenance on headless servers or other computers, such as ATMs and VLT terminals, that don’t support a monitor, keyboard or mouse

Warranty Information
Warranty	2 Years
Hardware
Audio	No
Cables Included	Yes
Daisy-Chain	No
KVM Ports	1
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	No
Performance
Hot-Key Selection	No
IP Control	No
Maximum Analog Resolutions	1920x1200 @ 60Hz
Maximum Number of Users	1
On-Screen Display	No
Connector(s)
Console Interface(s)	1 - USB Mini-B (5 pin) Female Input
Host Connectors	1 - USB Type-A (4 pin) USB 2.0 Male
	1 - VGA (15 pin, High Density D-Sub) Male
Software
OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.9 to 10.12 Linux 2.6 to 4.4 LTS versions only
Indicators
LED Indicators	1 - Host/Server Keyboard/Mouse USB Link
	1 - Host/Server Video (VGA) Link
	1 - User Console/USB Link
Power
Power Source	USB-Powered
Environmental
Humidity	80% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Physical Characteristics
Cable Length	16.4 in [416 mm]
	1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable
Color	Black
Enclosure Type	Plastic
Product Depth	4.5 in [115 mm]
Product Height	0.9 in [22 mm]
Product Length	4.9 in [125 mm]
Product Weight	8.6 oz [244 g]
Product Width	3.5 in [88 mm]
Packaging Information
Shipping (Package) Weight	1 lb [0.5 kg]
What's in the Box
Included in Package	1 - Rugged crash cart adapter
	1 - USB A to Mini-B cable
	1 - USB software key
	1 - Quick start guide

LAPTOP-TO-SERVER KVM CONSOLE WITH RUGGED HOUSING

Brand Name: StarTech.com

Connectivity Technology: Wired

Number of Local Users Supported: 1

Product Type: KVM Console

USB: Yes

VGA: Yes

Basic
Brand Name:	StarTech.com
Connectivity Technology:	Wired
Number of Local Users Supported:	1
Product Type:	KVM Console
USB:	Yes
VGA:	Yes

General Information
Brand Name:	StarTech.com
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	Laptop-to-Server KVM Console with Rugged Housing
Product Type:	KVM Console

Interfaces/Ports
Number of USB Ports:	1
USB:	Yes
VGA:	Yes

Miscellaneous
Environmentally Friendly:	Yes
Platform Supported:	Linux
	Mac
	PC

Physical Characteristics
Colour:	Black
Form Factor:	Portable
Receiver Depth:	114.30 mm
Receiver Height:	15.24 mm
Receiver Weight (Approximate):	170.1 g
Receiver Width:	73.66 mm

Technical Information
Connectivity Technology:	Wired
Number of Local Users Supported:	1

Video
Graphic Mode:	WUXGA
Maximum Video Resolution:	1920 x 1200

Information

SKU/Item No 546211

Vendor Part No NOTECONS02X

UPC/EAN Number 065030862240
