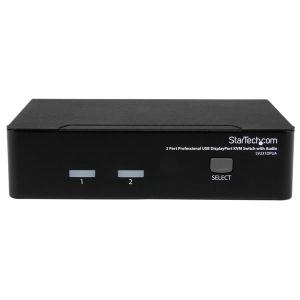

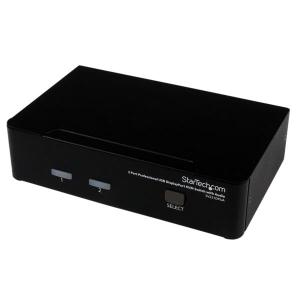

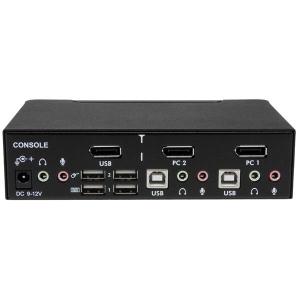

Startech 2 Port Professional USB DisplayPort KVM Switch with Audio SV231DPUA

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

SV231DPUA




Control two computers from a single console, with high-resolution DisplayPort® video, USB keyboard, mouse, and audio


  • Supports native DisplayPort computer connections - no adapter required



  • Native Resolution:
    2560 x 1600 @ 60Hz, beyond 1080p


  • Supports a maximum resolution of 3840 x 2400 at lower refresh rates


The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.


A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.


A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.


Backed by a StarTech.com 3-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook® connectivity
  • Support for both analog and digital audio sources provides the versatility to use either connection depending on preference/availability
  • USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)

Applications
  • Multimedia design, multimedia post-production and video editing using Mac or PC computers
  • High resolution medical imaging and Health care display, such as MRI and Xray display
  • Manufacturing line computer control
  • PC test/burn-in computer control
  • High-res Digital Signage server control
  • Satellite Topography
  • Dual system control for a single work terminal

Warranty Information

Warranty
3 Years

Hardware

Audio
Yes

Cables Included
No

Daisy-Chain
No

KVM Ports
2

Number of Monitors Supported
1

PC Interface
USB

PC Video Type
DisplayPort

Rack-Mountable
No

Performance

DVI Support
No

Hot-Key Selection
Yes

IP Control
No

Maximum Digital Resolutions
2560 x 1600 @ 60Hz

Maximum Number of Users
1

On-Screen Display
No

Port Selection Support
Push Button and Hotkeys

Wide Screen Supported
Yes

Connector(s)

Console Interface(s)
1 - DisplayPort (20 pin) Female

2 - 3.5 mm Mini-Jack (3 Position) Female

4 - USB Type-A (4 pin) USB 2.0 Female

Host Connectors
2 - DisplayPort (20 pin) Female

2 - USB B (4 pin) Female

4 - 3.5 mm Mini-Jack (3 Position) Female

Software

OS Compatibility
OS independent; No software or drivers required

Indicators

LED Indicators
2 - Green - Online indicator (One LED per port)

2 - Red - Select indicator (One LED per port)

Power

Center Tip Polarity
Positive

Input Current
0.8A

Input Voltage
110V-240V AC

Output Current
2A

Output Voltage
12 DC

Plug Type
M

Power Consumption (In Watts)
24

Power Source
AC Adapter Included

Environmental

Humidity
0~80% RH

Operating Temperature
0°C to 40°C (32°F to 104°F)

Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color
Black

Enclosure Type
Steel

Product Depth
5.1 in [130 mm]

Product Height
1.7 in [44 mm]

Product Weight
38.8 oz [1100 g]

Product Width
8.7 in [220 mm]

Packaging Information

Shipping (Package) Weight
45.9 oz [1300 g]

What's in the Box

Included in Package
1 - 2-port DisplayPort KVM switch

4 - foot pads

1 - universal power adapter (NA/UK/EU/AU)

1 - instruction manual



2 Port Professional USB DisplayPort KVM Switch with Audio


Brand Name: StarTech.com
Number of Computers Supported: 2
Product Type: KVM Switchbox
USB: Yes


Basic

Brand Name:
StarTech.com

Number of Computers Supported:
2

Product Type:
KVM Switchbox

USB:
Yes
General Information

Brand Name:
StarTech.com

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Product Model:
SV231DPUA

Product Name:
2-Port Professional USB DisplayPort KVM Switch with Audio

Product Type:
KVM Switchbox
Interfaces/Ports

DisplayPort:
Yes

Number of USB Ports:
6

USB:
Yes
Miscellaneous

Environmentally Friendly:
Yes
Physical Characteristics

Depth:
130 mm

Height:
44 mm


Weight (Approximate):

1.10 kg

Width:
220 mm
Power Description

Input Voltage:
5 V DC
Technical Information

Number of Computers Supported:
2
Video

Graphic Mode:
WQUXGA

Maximum Video Resolution:
3840 x 2400
