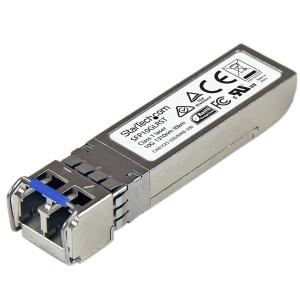

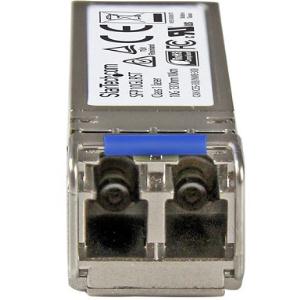

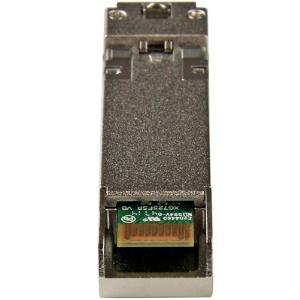

Startech 10 Gigabit Fiber SFP+ Transceiver Module - Cisco SFP-10G-LR Compatible - SM LC - 10 km SFP10GLRST

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

SFP10GLRST




Provide powerful, cost-efficient 10Gb Ethernet connections over single mode fiber with this Mini-GBIC module


  • Delivers reliable 10 Gigabit Ethernet connections for 10GBase-LR compliant networks


  • 100% Cisco compatible, equivalent to SFP-10G-LR


  • Backed by lifetime warranty and free lifetime technical support


This StarTech.com 10 Gigabit fiber SFP+ is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality fiber transceiver module can be installed into Cisco® switches and routers that support the SFP-10G-LR transceiver module, as well as other major brands of networking equipment.


It provides a dependable and cost-effective way to add, replace or upgrade the ports on your 10GBase-LR networking equipment, and it's backed by a lifetime warranty.


Built for reliable network performance


This 10 GbE SFP+ is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.


Fully compatible with Cisco and other major brands


This 10 Gigabit single-mode SFP+ is engineered to the highest quality standards and is 100% Cisco compatible, equivalent to the Cisco SFP-10G-LR SFP transceiver. The StarTech.com SFP+ transceiver module is configured and fully tested to ensure it works seamlessly with Cisco or other major brands of networking equipment.


You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.


Convenient and scalable


Delivering both convenience and scalability, this fiber SFP+ transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that’s compatible with a multitude of 10 Gigabit networking devices.


Ideal for use in switches, routers and other networking equipment, the SFP+ provides reliable performance, allowing you to expand your network to remote segments cost-effectively. The SM fiber transceiver module supports Digital Diagnostics Monitoring, a maximum distance of up to 10 km (6.2 mi.), and maximum data rates of up to 10Gbps.


You can count on SFP10GLRST for reliable performance, backed by a lifetime warranty and free lifetime technical support.


Applications
  • Replace defective or damaged SFPs in MSA compliant or Cisco equipment
  • Ideal for deployment in network devices with multiple SFP slots
  • Expand your network to remote segments

Warranty Information

Warranty

Lifetime

Hardware

Industry Standards

IEEE 802.3ae 10 Gbit/s

Performance

DDM

Yes

Fiber Operating Mode

Full-Duplex

Fiber Type

Single Mode

Max Transfer Distance

10 km (6.2 mi)

Maximum Data Transfer Rate

10 Gbps

Wavelength

1310nm

Special Notes / Requirements

Note

For use in 10 Gigabit fiber networking equipment and media converters

System and Cable Requirements

MSA or Cisco compliant SFP port

Environmental

Humidity

5~95% RH

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Physical Characteristics

Color

Silver

Enclosure Type

Zinc-Plated Casing

Product Height

0.5 in [12.5 mm]

Product Length

2.2 in [56.6 mm]

Product Weight

0.8 oz [22 g]

Product Width

0.5 in [13.7 mm]

Packaging Information

Shipping (Package) Weight

1.8 oz [52 g]

What's in the Box

Included in Package

1 - SFP+ transceiver



10 GIGABIT FIBER SFP+ TRANSCEIVER MODULE - CISCO SFP-10G-LR COMPATIBLE - SM LC - 10 KM


Brand Name: StarTech.com
Ethernet Technology: 10 Gigabit Ethernet
Interfaces/Ports Details: 1 x 10GBase-LR
Media Type Supported: Optical Fiber
Network Technology: 10GBase-LR
Product Type: SFP+


Basic

Brand Name:

StarTech.com

Ethernet Technology:

10 Gigabit Ethernet

Interfaces/Ports Details:

1 x 10GBase-LR

Media Type Supported:

Optical Fiber

Network Technology:

10GBase-LR

Product Type:

SFP+
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

SFP10GLRST

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

10 Gigabit Fiber SFP+ Transceiver Module

Product Type:

SFP+
Interfaces/Ports

Interfaces/Ports Details:

1 x 10GBase-LR
Media & Performance

Ethernet Technology:

10 Gigabit Ethernet

Fiber Mode Supported:

Single-mode

Media Type Supported:

Optical Fiber

Network Technology:

10GBase-LR
Miscellaneous

Compatibility:

MSA Compliant
Physical Characteristics

Depth:

55.9 mm

Form Factor:

Hot-pluggable

Height:

12.7 mm


Weight (Approximate):

22.7 g

Width:

12.7 mm
Technical Information

Application/Usage:

Optical Network
