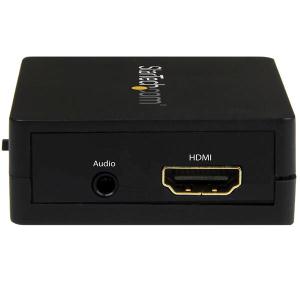

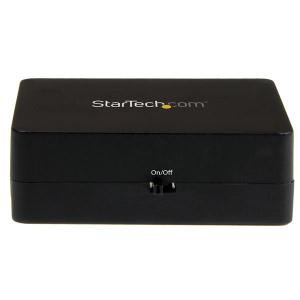

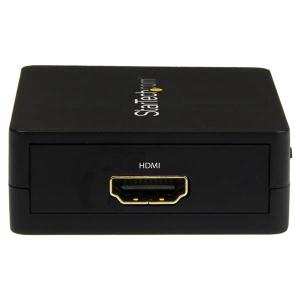

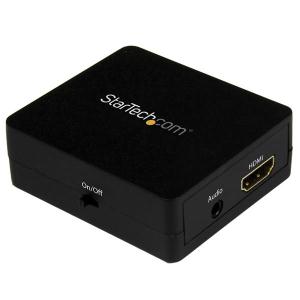

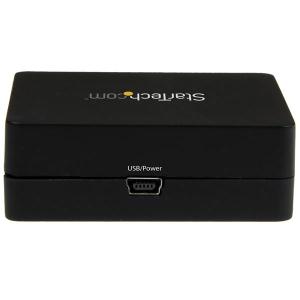

Startech HDMI Audio Extractor - 1080p HD2A

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

HD2A




Extract and convert the audio from your HDMI signal to 3.5mm audio in 2.1 stereo sound


  • Easily integrates the audio from your HDMI source with equipment that doesn't support HDMI


  • Extracts analog and digital audio with an included 3.5mm to SPDIF adapter


  • Expand the capabilities of the audio extractor by converting to RCA audio, using an inexpensive 3.5mm to RCA adapter (sold separately)


This HDMI® audio extractor lets you separate stereo audio from your HDMI video signal and connect it to a 3.5mm audio device, such as your stereo sound system or desktop speakers. You can also extract the audio from the HDMI signal and integrate it into an optical TOSLINK® application, using the included digital SPDIF adapter.


Hassle-free integration


Your latest consumer A/V equipment probably only offers an HDMI output. This can make it difficult to integrate devices, such as your new Blu-ray™ player or computer system, with your existing audio equipment or desktop speakers.


The HDMI audio extractor is USB powered using the included power cable, for easy integration with your computer systems. The adapter also features a small footprint that discreetly blends into your hardware setup, for a uniform look.


Versatile connection options


With a 3.5mm audio output and a TOSLINK adapter included, the HDMI audio extractor lets you output audio to virtually any non-HDMI equipment, whether it's digital or analog. This makes the audio extractor great for any application where you need to connect your HDMI source to speakers that don't have an HDMI input - such as desktop speakers, or a classroom or boardroom sound system.


Maximum compatibility


The audio extractor is HDCP enabled and HDMI 1.3b compliant, to ensure compatibility with your HDMI device. Plus, the HDMI output supports resolutions up to 1920x1080 (1080p) at 60Hz, to fit any HD application.


The HDMI audio extractor can also be used with an inexpensive dual-RCA composite adapter (sold separately) to integrate the audio from your HDMI source into 2-channel RCA audio applications.


The HD2A is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Applications
  • Connect the audio from your HDMI source device to the speakers in a boardroom or classroom
  • Use the audio extractor with an inexpensive adapter (sold separately) to output dual-RCA composite audio
  • Convert the HDMI audio to dual-RCA composite using additional adapters (sold separately)

Warranty Information

Warranty

2 Years

Hardware

Audio

Yes

Chipset ID

Explore-EP93Z3E

Output Signal

3.5 mm Audio

HDMI

Performance

Audio Specifications

2.1 stereo audio

Maximum Digital Resolutions

1080p (1920 x 1080)

Supported Resolutions

Up to 1080p (1920 x 1080)

Wide Screen Supported

Yes

Connector(s)

Connector A

1 - HDMI (19 pin) Female Input

Connector B

1 - 3.5 mm Mini-Jack (3 Position) Female Output

1 - HDMI (19 pin) Female Output

Connector Type(s)

1 - USB Mini-B (5 pin) Female

Power

Power Source

USB-Powered

Environmental

Humidity

5% to 95% non-condensing

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-10°C to 80°C (14°F to 176°F)

Physical Characteristics

Product Height

0.8 in [20 mm]

Product Length

2.4 in [60 mm]

Product Weight

1.3 oz [38 g]

Product Width

2.2 in [55 mm]

Packaging Information

Shipping (Package) Weight

0.3 lb [0.1 kg]

What's in the Box

Included in Package

1 - HDMI audio extractor

1 - USB power cable

1 - Toslink adapter



HDMI AUDIO EXTRACTOR - 1080P


Brand Name: StarTech.com
Number of Audio Line Out: 1
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Product Type: Signal Splitter


Basic

Brand Name:

StarTech.com

Number of Audio Line Out:

1

Number of HDMI Inputs:

1

Number of HDMI Outputs:

1

Product Type:

Signal Splitter
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

HD2A

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

HDMI Audio Extractor - HDMI to 3.5mm Audio Converter - 2.1 Stereo Audio - 1080p

Product Type:

Signal Splitter
Interfaces/Ports

Audio Line Out:

Yes

HDMI In:

Yes

HDMI Out:

Yes

Number of Audio Line Out:

1

Number of HDMI Inputs:

1

Number of HDMI Outputs:

1

USB:

Yes
Physical Characteristics

Height:

20.3 mm

Length:

61 mm


Weight (Approximate):

36.9 g

Width:

55.9 mm
Video

Maximum Video Resolution:

1920 x 1080
