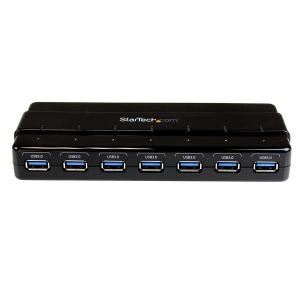

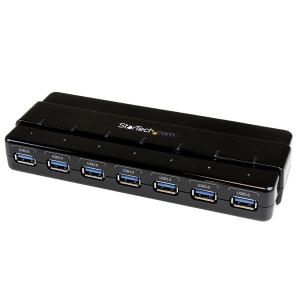

Startech 7-Port USB 3.0 Hub - Desktop ST7300USB3B

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

ST7300USB3B




Add 7 external, USB 3.0 ports to a computer from a single USB connection


  • Seven downstream USB 3.0 ports accessible from one side of the hub, with support for up to 5Gbps


  • Universal, multi-platform compatibility, with no additional drivers required


  • Plug-and-Play and Hot-Swap compatible


The ST7300USB3B USB 3.0 Hub lets you add seven external USB 3.0 ports to a computer from a single USB 3.0 host connection.


Offering data transfer rates up to 5 Gbps, the USB hub meets SuperSpeed USB 3.0 specifications and is backward compatible with USB 2.0 and 1.x devices.


Designed for easy port access when connecting or disconnecting devices, the hub features one-sided port orientation, with current overload detection and protection across all seven ports.The hub supports Plug-and-Play and Hot-Swap technologies, letting you switch and operate your connected devices without having to power down the host computer.


The USB hub is bus powered for use in environments where a power outlet may be unavailable, but is perfect for high-power USB devices when used with the included optional power adapter.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Easily connect and disconnect USB 3.0 devices with accessible one-sided port orientation
  • Connect up to seven USB 3.0/2.0/1.x devices simultaneously at their respective maximum speeds

Applications
  • Expand your system USB 3.0 capabilities with additional ports
  • Make USB ports more accessible by positioning the hub anywhere within cable reach
  • Extend the range of USB devices by having the hub act as a mid-point repeater
  • Separate tightly packed USB ports, to better accommodate larger USB plugs or prevent overcrowding

Warranty Information

Warranty
2 Years

Hardware

Bus Type
USB 3.0

Chipset ID
VLI - VL812

Fast-Charge Port(s)
No

Ports
7

USB-C Device Port(s)
No

USB-C Host Connection
No

Performance

Maximum Data Transfer Rate
5 Gbps

Type and Rate
USB 3.0 - 5 Gbit/s

Connector(s)

Connector Type(s)
1 - USB Type-B (9 pin) USB 3.0 Female

7 - USB Type-A (9 pin) USB 3.0 Female

Software

OS Compatibility
OS Independent; No additional drivers or software required

Special Notes / Requirements

Note
If connected to a USB 2.0 host port, performance may be limited

System and Cable Requirements
Available USB 3.0 port

Indicators

LED Indicators
7 - Hub Port Connection LEDs

Power

Center Tip Polarity
Positive

Input Current
1.3 A

Input Voltage
100 ~ 240 AC

Output Current
3 A

Output Voltage
12 DC

Plug Type
M

Power Consumption (In Watts)
36

Power Source
AC Adapter Included

Environmental

Humidity
5-95% RH

Operating Temperature
-2°C to 52°C (29°F to 125°F)

Storage Temperature
-20°C to 56°C (-4°F to 132°F)

Physical Characteristics

Color
Black

Enclosure Type
Plastic

Form Factor
Desktop

Product Height
0.9 in [23 mm]

Product Length
6.8 in [172 mm]

Product Weight
5.2 oz [148 g]

Product Width
2.8 in [70 mm]

Packaging Information

Shipping (Package) Weight
19.7 oz [558 g]

What's in the Box

Included in Package
1 - USB 3.0 Hub

1 - USB 3.0 Cable

1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)

1 - Instruction Manual



7 Port SuperSpeed USB 3.0 Hub - Desktop USB Hub with Power Adapter A Black USB Hub - 5 Gbps USB 3 Hub - Seven Port USB 3.0 Hub - USB 3.0Desktop Hub - 7 Port USB 3.0 Hub


Brand Name: StarTech.com
Form Factor: External
Host Interface: USB
Product Type: USB Hub
Total Number of USB Ports: 7


Basic

Brand Name:
StarTech.com

Form Factor:
External

Host Interface:
USB

Product Type:
USB Hub

Total Number of USB Ports:
7
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
ST7300USB3B

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
7 Port SuperSpeed USB 3.0 Hub - Desktop USB Hub with Power Adapter - Black

Product Type:
USB Hub
Interfaces/Ports

Number of USB 3.0 Ports:
7

Total Number of USB Ports:
7
Miscellaneous

Environmentally Friendly:
Yes

Platform Supported:
Mac

PC
Physical Characteristics

Colour:
Black

Form Factor:
External

Height:
22.9 mm

Length:
172.7 mm


Weight (Approximate):

148 g

Width:
71.1 mm
Technical Information

Host Interface:
USB
