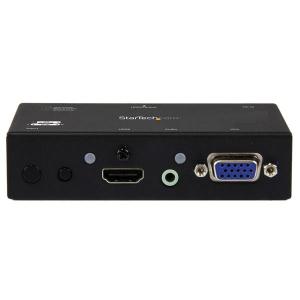

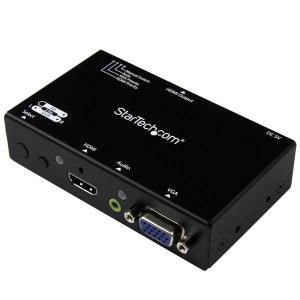

Startech 2x1 HDMI + VGA to HDMI Converter Switch w/ Automatic and Priority Switching – 1080p VS221VGA2HD

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

VS221VGA2HD




Share an HDMI display/projector between a VGA and HDMI audio/video source, with automatic and priority switching



  • Accommodates both VGA and HDMI input devices in a single switch with HDMI output, saving hassle and expense by reducing the need for adapters



  • Effortless control with automatic and priority port selection



  • Ideal for classroom and boardroom display applications, allowing presenters to connect a wide range of devices



The VS221VGA2HD HDMI & VGA Auto Switch lets you connect an HDMI and a VGA audio/video source to the same HDMI display or projector, and automatically or manually switch between which video source is displayed. The multi-input A/V switch supports video resolution up to 1920x1200 (1080p) and includes mounting hardware for a tidy professional installation.



One Switch for VGA and HDMI



The A/V switch features built-in VGA conversion, enabling you to connect an HDMI and a VGA video source to the same HDMI display without the use of additional adapters or scalers.



Effortless Control



The VS221VGA2HD ensures hassle-free operation with two different auto switching modes: automatic switching that detects and selects a newly connected device, as well as priority selection which lets you choose which port should be activated by default for automatic switching.



Focus on the Presentation, Not Boardroom Connections



This A/V switch has been designed with the boardroom and classroom in mind: the VS221VGA2HD features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to the room’s display without the use of additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it easy to share your projector between multiple source devices.



Application Diagram



If you are looking for a similar device with VGA output, please see our VS221HD2VGA.



The VS221VGA2HD is backed by a StarTech.com 2-year warranty, and free lifetime technical support.



The StarTech.com Advantage
  • Effortless switching with automatic and priority switching
  • Allow your presenters / guest to focus on the presentation or lesson without the worry of connecting to an available display or projector


Applications
  • Automatically switch between your set top box or computer in a home theatre environment
  • Share a classroom or conference room projector with VGA and HDMI video sources
  • Connect and switch between VGA and HDMI video sources on a test bench, for troubleshooting computers
  • Switch between VGA and HDMI video sources on your digital signage display in hospitals, shopping centers, or schools

Warranty Information

Warranty

2 Years

Hardware

Audio

Yes

Ports

2

Performance

Audio Specifications

2-channel 3.5mm stereo audio (VGA)


7.1 surround sound (HDMI)

Maximum Analog Resolutions

1920x1200

Maximum Digital Resolutions

1920x1200

Supported Resolutions

Supports resolutions up to 1920x1200 / 1080p

Wide Screen Supported

Yes

Connector(s)

Connector A

1 - HDMI (19 pin) Female

1 - VGA (15 pin, High Density D-Sub) Female

Connector B

1 - HDMI (19 pin) Female

Indicators

LED Indicators

1 - VGA Port Selected

1 - HDMI Port Selected

Power

Input Current

0.4 A

Input Voltage

100 ~ 240 AC

Output Current

1 A

Output Voltage

5 DC

Power Consumption (In Watts)

5

Power Source

AC Adapter Included

Environmental

Humidity

0%~80%

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Product Height

1.1 in [29 mm]

Product Length

4 in [102 mm]

Product Weight

7.9 oz [225 g]

Product Width

2.1 in [54 mm]

Packaging Information

Shipping (Package) Weight

23 oz [651 g]

What's in the Box

Included in Package

1 - VGA+HDMI to HDMI converter switch

1 - mounting kit

1 - universal power adapter (NA, EU, UK, ANZ)

1 - instruction manual





2x1 HDMI + VGA to HDMI Converter Switch w/ Automatic and Priority Switching - Multi-format HDMI & VGA to HDMI Converter Switch w/ Automatic and Priority Port Selector - 1080p




Brand Name: StarTech.com

Connectivity Technology: Cable

Device Supported: Computer

Device Supported: Display

Device Supported: Projector

Device Supported: Set-top Box

HDMI In: Yes

HDMI Out: Yes

Number of Displays Supported: 1

Number of HDMI Inputs: 1

Number of Input Devices Supported: 2

Number of VGA Inputs: 1

Product Type: Audio/Video Switchbox

VGA In: Yes



Basic

Brand Name:

StarTech.com

Connectivity Technology:

Cable

Device Supported:

Computer

Display

Projector

Set-top Box

HDMI In:

Yes

HDMI Out:

Yes

Number of Displays Supported:

1

Number of HDMI Inputs:

1

Number of Input Devices Supported:

2

Number of VGA Inputs:

1

Product Type:

Audio/Video Switchbox

VGA In:

Yes
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

VS221VGA2HD

Manufacturer Website Address:

http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

2x1 HDMI+VGA to HDMI Converter Switch w/ Automatic and Priority Switching-1080p

Product Type:

Audio/Video Switchbox
Interfaces/Ports

Audio Line In:

Yes

HDMI In:

Yes

HDMI Out:

Yes

Number of HDMI Inputs:

1

Number of HDMI Outputs:

1

Number of VGA Inputs:

1

VGA In:

Yes
Technical Information

Connectivity Technology:

Cable

Device Supported:

Computer

Display

Projector

Set-top Box

Number of Displays Supported:

1

Number of Input Devices Supported:

2
Video

Graphics Modes:

WUXGA

Maximum Video Resolution:

1920 x 1200
