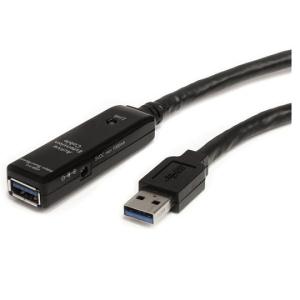

Startech 5m USB 3.0 Active Extension Cable - M/F USB3AAEXT5M

Features

usb3aaext5m cable extension active startech

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

USB3AAEXT5M

Extend the distance between a computer and a USB 3.0 device by an additional 5 meters

Fully shielded for error-free connections
Plug-and-play, no driver required
USB bus-powered

The USB3AAEXT5M, 5-meter Active USB 3.0 Extension Cable, offers one USB type-A (male) connector and one USB type-A (female) connector, and provides an active extension of USB 3.0 devices of up to 5-meters (16-feet).

An all in one cable for overcoming distance restrictions as well as power source limitations; the active USB 3.0 extension cable incorporates bus powered active circuitry to ensure performance beyond the length limits of standard USB cables. Up to 4 of these cables can be daisy-chained together, allowing the connection to be extended a total of 20-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter provided with the cable.

The USB3AAEXT5M extension cable (USB Extender) supports high speed USB 3.0 transfer rates of up to 5Gbps, and is backed by StarTech.com's 2-year Warranty.

The StarTech.com Advantage

Extends a USB 3.0 device connection by an additional 5m (16ft) or cascade up to 4 levels for 20m (64ft)
Powered directly from the USB port or through the included Universal external power adapter
Backed by a StarTech.com 2-year warranty and free lifetime technical support

Applications

Extend the distance of USB peripherals beyond the USB 3.0 3-meter limitation
Cascade up to 4 levels
Backwards compatible with USB 2.0/1.1 devices

Warranty Information
Warranty	2 Years
Hardware
Cable Jacket Type	PVC - Polyvinyl Chloride
Connector Plating	Nickel
Connector(s)
Connector A	1 - USB Type-A (9 pin) USB 3.0 Male
Connector B	1 - USB Type-A (9 pin) USB 3.0 Female
Special Notes / Requirements
Note	Cascade up to 4 USB3AAEXT5M devices together for further extension
Power
Center Tip Polarity	Positive
Input Current	0.35 A
Input Voltage	110V-240V AC
Output Current	2A
Output Voltage	5 DC
Plug Type	H
Power Consumption (In Watts)	10
Power Source	AC Adapter Included
Physical Characteristics
Cable Length	16.4 ft [5 m]
Color	Black
Product Weight	13.2 oz [375 g]
Packaging Information
Package Quantity	1
Shipping (Package) Weight	18.3 oz [517 g]
What's in the Box
Included in Package	1 - 5 m USB 3.0 Active Extension Cable - M/F
	1 - Universal Power Adapter
	1 - Plug Adapters for North America, UK, Europe, and Australia

5m USB 3.0 Active Extension Cable - M/F

Brand Name: StarTech.com

Cable Length: 5 m

Cable Type: USB

Colour: Black

Connector on First End: 1 x Type A Male USB

Connector on Second End: 1 x Type A Female USB

Packaged Quantity: 1

Product Type: Data Transfer Cable

Basic
Brand Name:	StarTech.com
Cable Length:	5 m
Cable Type:	USB
Colour:	Black
Connector on First End:	1 x Type A Male USB
Connector on Second End:	1 x Type A Female USB
Packaged Quantity:	1
Product Type:	Data Transfer Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	USB3AAEXT5M
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	5m USB 3.0 Active Extension Cable - M/F
Product Type:	Data Transfer Cable

Miscellaneous
Additional Information:	Extends a USB 3.0 device connection by an additional 5m (16ft) or cascade up to 4 levels for 20m (64ft) Powered directly from the USB port or through the included Universal external power adapter Backed by a StarTech.com 2-year warranty and free lifetime technical support
Certifications & Standards:	FCC CE
Environmentally Friendly:	Yes

Physical Characteristics
Colour:	Black
Material:	Polyvinyl Chloride (PVC) - Jacket
Weight (Approximate):	375 g

Technical Information
Cable Characteristic:	Extension Cable
Cable Length:	5 m
Cable Type:	USB
Conductor:	Copper
Connector Plating:	Nickel Plated
Connector on First End:	1 x Type A Male USB 3.0 USB
Connector on Second End:	1 x Type A Female USB 3.0 USB
Shielding:	Yes

Information

SKU/Item No 545928

Vendor Part No USB3AAEXT5M

UPC/EAN Number 065030846301
