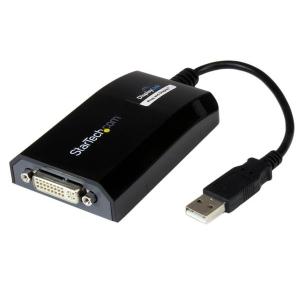

Startech USB to DVI Adapter - External USB Video Graphics Card for PC and MAC- 1920x1200 USB2DVIPRO2

Features
usb2dvipro2 adapter video external chipset
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

USB2DVIPRO2




Connect a DVI display for an extended desktop multi-monitor USB solution


  • Support for Aero themes in Windows®


  • Works with Mac® OS X


  • Optimal performance at 1920x1200 and ideal for use with 24" to 26" monitors or smaller


The USB2DVIPRO2 USB to DVI Adapter functions as an external graphics card for Windows® and Mac® computers - the perfect solution for turning your desktop or laptop computer into a dual or multi-monitor environment, all through the simplicity and convenience of USB.


The USB-DVI Adapter delivers high quality video (up to 1920x1200) for a variety of applications and is capable of simultaneously running up to five additional displays from a single computer (using four USB2DVIPRO2 External Video Adapters). The adapter connects to a host computer through a USB 2.0 port, acting as an external DVI video card to either extend or mirror the desktop shown on the existing display - without having to open the computer case.


Featuring driver support for Microsoft Windows® (including Aero themes) and Mac OS X, and with video support for resolutions up to 1920x1200, this USB-DVI video adapter is the ideal solution for a wide rade of operating environments as well as large-screen displays/monitors.


The USB2DVIPRO2 USB to DVI Adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • The graphics adapter supports high-performance requirements and high resolution video, making it suitable for connecting large-screen monitors
  • USB-powered operation eliminates the need for an external power adapter, enabling you to position an additional monitor without having to make the extra power connection or carry an additional cable for mobile applications
  • Completely external device offers a simple upgrade solution saving the cost and hassle of upgrading the internal video card on your system, which in many cases would void manufacturers warranties

Applications
  • Add multiple (up to five) monitors / projectors to your computer setup using one USB2DVIPRO2 device for each additional display
  • View large or multiple spreadsheets across multiple displays
  • Increase productivity by running multiple applications on different DVI screens; check your email on one display while editing a document on the other
  • Use the USB-DVI adapter to connect your PC to your television for showing family pictures and movies
  • Connect multiple DVI monitors to a single computer to create engaging multimedia presentations
  • Great for researchers and writers offering the ability to have reference material on one display and a working document copy on the other

Warranty Information

Warranty
2 Years

Hardware

Chipset ID
DisplayLink - DL-195

Memory
16MB

Output Signal
DVI-I (DVI Digital/Analog)

USB Pass-Through
No

Performance

General Specifications
This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset.

Maximum Digital Resolutions
1920x1200 (32-bit color)

MTBF
621,445 Hours

Supported Resolutions

Widescreen (16/32 Bit):


1920x1200, 1680x1050, 1440x900, 1366x768



Standard (16/32 Bit):


1600x1200, 1280x1024, 1024x768, 800x600, 640x480

Connector(s)

Connector Type(s)
1 - DVI-I (29 pin) Female

1 - USB Type-A (4 pin) USB 2.0 Male

Software

OS Compatibility
Windows® 2000, XP, Vista, 7, 8, 8.1, 10

MacOS® 10.6 to 10.12

Chrome OS v51

Ubuntu 14.04, 16.04

Special Notes / Requirements

Note
Power PC-based Macintosh computers, such as late-model iMacs, PowerBooks and PowerMacs, are not currently supported

System and Cable Requirements
1.2Ghz or higher CPU

30MB of hard drive space

512 MB RAM

USB 2.0 Port

Indicators

LED Indicators
1 - Blue - Power

Power

Power Source
USB-Powered

Environmental

Humidity

Operating Temperature
10°C to 40°C (50°F to 104°F)

Storage Temperature
-10°C to 80°C (14°F to 176°F)

Physical Characteristics

Color
Black

Product Height
0.8 in [20 mm]

Product Length
10.6 in [270 mm]

Product Weight
2.5 oz [72 g]

Product Width
2.2 in [55 mm]

Packaging Information

Shipping (Package) Weight
9 oz [254 g]

What's in the Box

Included in Package
1 - USB to DVI Adapter

1 - DVI to VGA adapter

1 - Driver CD

1 - Instruction Manual



USB to DVI Adapter - External USB Video Graphics Card for PC and MAC- 1920x1200 - Display Adapter


Brand Name: StarTech.com
Chipset Manufacturer: DisplayLink
Chipset Model: DL-195
DVI: Yes
Form Factor: External
Host Interface: USB 2.0
Maximum Resolution: 1900 x 1200
Product Type: Graphic Adapter
Standard Memory: 16 MB


Basic

Brand Name:
StarTech.com

Chipset Manufacturer:
DisplayLink

Chipset Model:
DL-195

DVI:
Yes

Form Factor:
External

Host Interface:
USB 2.0

Maximum Resolution:
1900 x 1200

Product Type:
Graphic Adapter

Standard Memory:
16 MB
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
USB2DVIPRO2

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Marketing Content:
The USB2DVIPRO2 USB to DVI Adapter functions as an external graphics card for Windows and Mac computers- the perfect solution for turning your desktop or laptop computer into a dual or multi-monitor environment, all through the simplicity and convenience of USB

Packaged Quantity:
1

Product Name:
USB to DVI Adapter - External USB Video Graphics Card for PC and MAC- 1920x1200

Product Type:
Graphic Adapter
Interfaces/Ports

DVI:
Yes

Host Interface:
USB 2.0

Total Number of DVI Outputs:
1
Memory

Standard Memory:
16 MB
Miscellaneous

Platform Supported:
Mac

PC

System Requirements:
  • 1.2Ghz or Higher CPU
  • 30MB of hard Drive Space
  • 512 MB RAM
  • USB 2.0 Port

OS Compatibility:

  • Windows® 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000 (Aero 3D interface supported)
  • Apple® OSX Yosemite (10.10), Mavericks (10.9) Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6)
Physical Characteristics

Form Factor:
External

Height:
15.2 mm

Length:
78.7 mm

Thickness:
43.2 mm


Weight (Approximate):

300.5 g
Processor & Chipset

Chipset Manufacturer:
DisplayLink

Chipset Model:
DL-195
Technical Information

Analog Signal:
Yes

Digital Signal:
Yes

Maximum Resolution:
1900 x 1200
