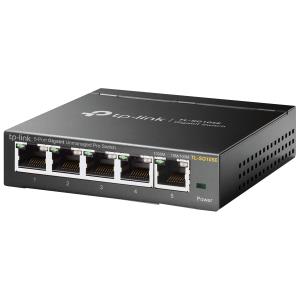

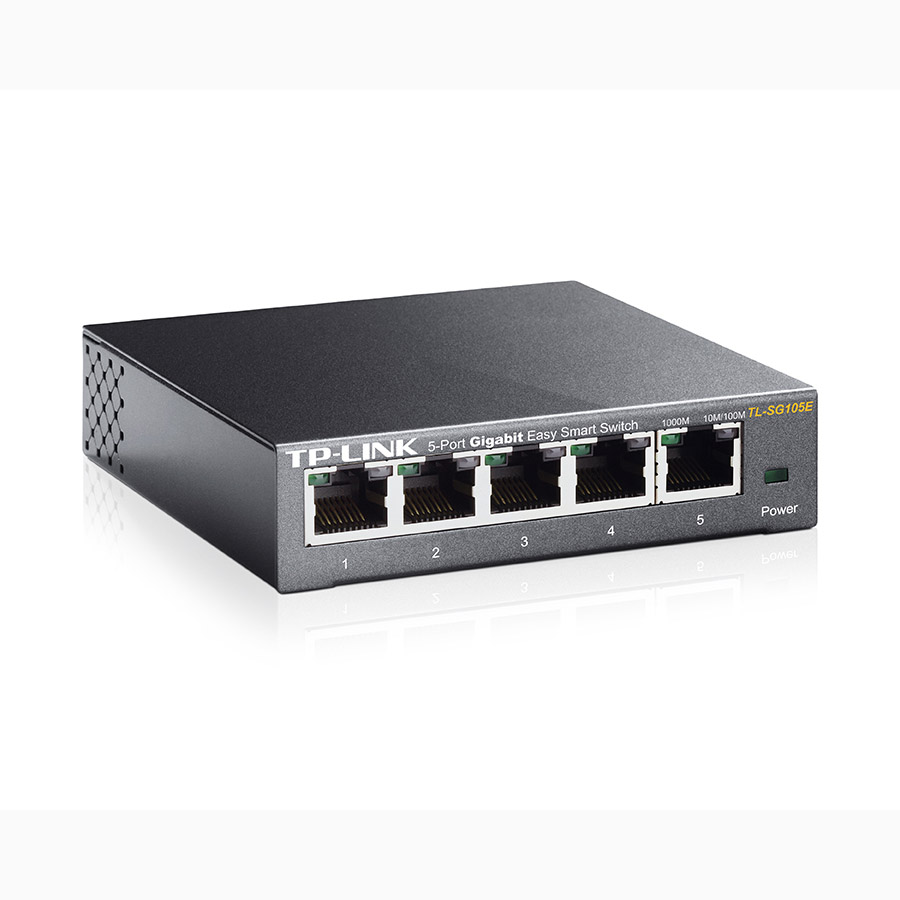

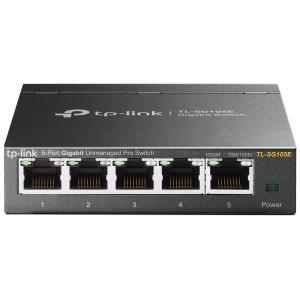

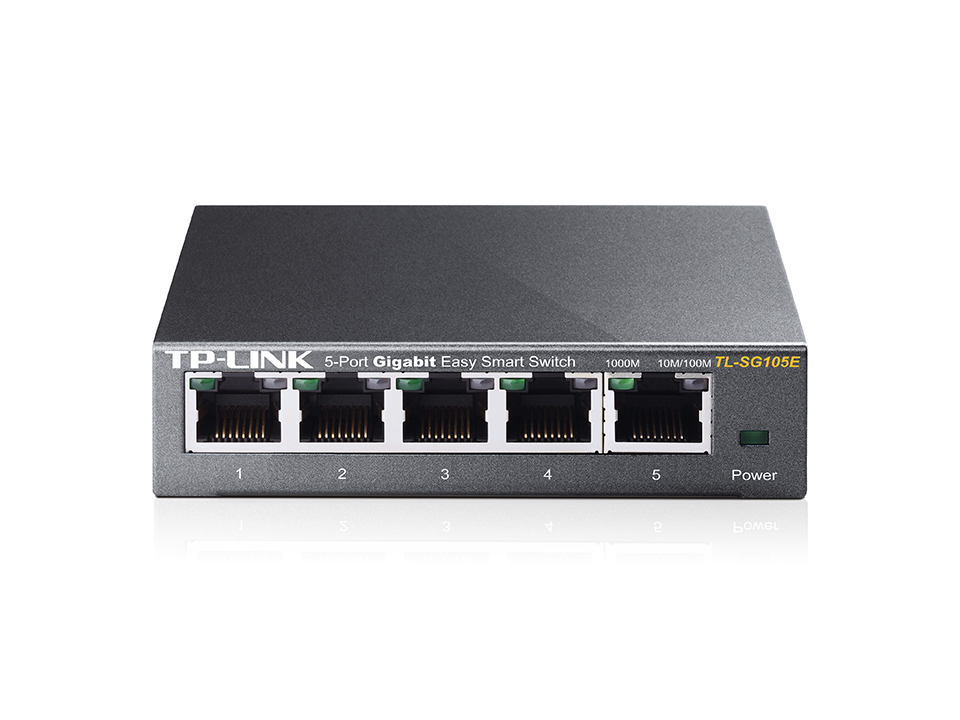

TP-LINK 5 Port Gigabit Easy Smart Swich, 10/100/1000, Steelcasing, 3YR Wty TL-SG105E

Features

Click to view full size

Click to view full size

traffic length link business consumption

Click to view full size

tl-sg105e network power port cable image 2

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

TP-LINK's MPN:

TL-SG105E

Specifications:

Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface	5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity	Fanless
Power Supply	100-240VAC, 50/60Hz
Dimensions (W X D X H)	3.9 * 3.9 1.0 in. (100 98 *25 mm)

PERFORMANCE
Packet Forwarding Rate	7.4Mpps
MAC Address Table	8K
Packet Buffer Memory	2Mb
Jumbo Frame	16KB

SOFTWARE FEATURES
Quality of Service	Support Port Based/802.1p Based priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Transmission Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SG105E Power Cord Installation Guide Resource CD Rubber Feet
System Requirements	Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Features:

What This Product Does

The TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E offers Port-based/802.1p/DSCP QoS² to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 57% of power consumption, making it an eco-friendly solution for your business network.

Effective Management

TP-LINK’s Gigabit Easy Smart switch, TL-SG105E offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port/802.1p/DSCP Priority², to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG105E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG105E is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Go Green with Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG105E 5-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105E can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length

Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG105E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

Easy to Use

TL-SG105E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

5 10/100/1000Mbps RJ45 ports
Provides network monitoring, traffic prioritization and VLAN features
Innovative energy-efficient technology reduces power output by up to 75%
Simple network set-up on top of plug-and-play connectivity
Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

Description:

TP-LINK 5 PORT GIGABIT EASY SMART SWICH, 10/100/1000, STEELCASING, 3YR WTY

Information

SKU/Item No 543224

Vendor Part No TL-SG105E

UPC/EAN Number 6935364022037

Our Stock ** (click for more info)

Price

$35.99
