Startech 4-Port USB 2.0-Over-Cat5-or-Cat6 Extender - 165ft (50m) USB2004EXTV

Features

usb2004extv extender devices startech cable

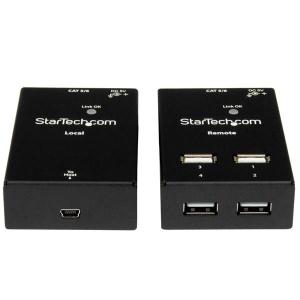

Click to view full size

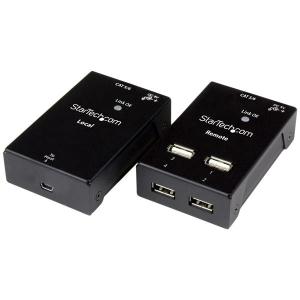

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

USB2004EXTV

Connect four USB 2.0 devices away from your computer over Cat5 (40m) or Cat6 (50m)

Place your devices where you need them with this cost-effective USB extender
Unique 4-port design with 2 ports on top for easy access
OS independent for fast, hassle-free set-up

This 4-port USB 2.0 extender is an easy and inexpensive solution for creating workspace freedom. Now you can extend the distance of your USB 2.0 devices over a single Ethernet cable, up to 130ft (40m) over Cat5, or 165ft (50m) over Cat6.

Go the extra distance for increased productivity

Overcome the 16ft USB cable length limitation to create a more flexible and efficient workspace. Now you can place up to four USB devices in remote locations away from the host computer system. Position your hard drive enclosure, printer, scanner, webcam and other popular peripherals right where you need them, to save time and enhance your productivity.

Port location enables fast and easy connections

Gain quick access to the USB devices you use most frequently. Often on the go? Use the two top ports for fast, easy connections to portable devices like flash drives, smartphones and tablets. Plus, you still have two front-facing ports for printers or other devices requiring a more permanent set-up.

Supports any operating system and older devices

The versatile USB2004EXTV supports Windows®, Mac® and Linux systems. Set-up is easy with no additional drivers or software required, and the extender is backward compatible with USB 1.1 and 1.0 peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

No need to lay new wiring – use existing direct cable, in-wall Cat5 or Cat6, to extend USB connections between rooms
Use as a mid-point repeater to increase the connection distance of your USB peripherals

Warranty Information
Warranty	2 Years
Hardware
Cabling	Cat 5 UTP or better
Ports	4
Performance
Max Distance	50 m / 165 ft
Maximum Data Transfer Rate	480Mbps
Connector(s)
Local Unit Connectors	1 - USB Mini-B (5 pin) Female
	1 - RJ-45 Female
Remote Unit Connectors	4 - USB Type-A (4 pin) USB 2.0 Female
	1 - RJ-45 Female
Software
OS Compatibility	OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements	USB-enabled computer system with an available USB port
	RJ45 terminated Cat5 or higher Ethernet cabling
Indicators
LED Indicators	1 - Power / Link
Power
Center Tip Polarity	Positive
Input Current	0.4 A
Input Voltage	100 ~ 240 AC
Output Current	2.0 A
Output Voltage	5 DC
Plug Type	N
Power Consumption (In Watts)	10
Power Source	AC Adapter Included
Environmental
Humidity	0~80% RH
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Color	Black
Enclosure Type	Steel
Product Height	0.9 in [22 mm]
Product Length	3.1 in [80 mm]
Product Weight	11.4 oz [324 g]
Product Width	2 in [52 mm]
Packaging Information
Shipping (Package) Weight	27.3 oz [774 g]
What's in the Box
Included in Package	1 - USB 2.0 Local Extender
	1 - USB 2.0 Remote Extender
	1 - 0.5m (1.5ft) Mini-USB to USB 2.0 A Cable
	1 - 1.5m (5ft) RJ45 Ethernet Cable
	8 - Rubber Feet
	1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
	1 - Instruction Manual

4 Port USB 2.0-Over-Cat5 / 6 Extender - up to 130ft (40m) Cat5 or 165ft (50m) Cat6 Single Ethernet Cable - Cost-effective & Compact USB Extension - 2 Top Ports

Brand Name: StarTech.com

Product Type: USB Extender

Basic
Brand Name:	StarTech.com
Product Type:	USB Extender

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	USB2004EXTV
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Name:	4 Port USB 2.0-Over-Cat5-or-Cat6 Extender - up to 165ft (50m)
Product Type:	USB Extender

Physical Characteristics
Height:	22 mm
Length:	80 mm
Weight (Approximate):	324 g
Width:	52 mm

Information

SKU/Item No 543194

Vendor Part No USB2004EXTV

UPC/EAN Number 065030860031
