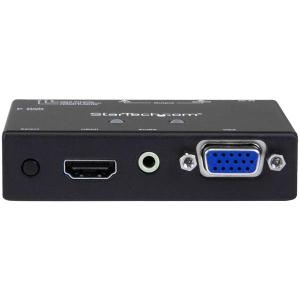

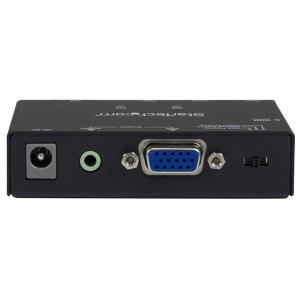

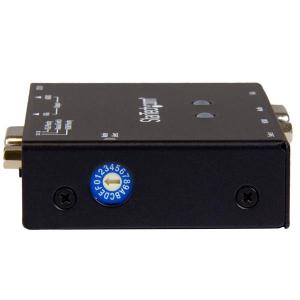

Startech 2x1 VGA + HDMI to VGA Converter Switch with Priority Switching - 1080p VS221HD2VGA

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

VS221HD2VGA




Share a VGA display/projector between a VGA and HDMI audio/video source, with priority switching


  • Accommodates both VGA and HDMI input devices in a single switch with VGA output, saving hassle and expense by reducing the need for adapters


  • Effortless control with priority port selection


  • Ideal for classroom and boardroom display applications, allowing presenters to connect a wide range of devices


The VS221HD2VGA VGA & HDMI Auto Switch lets you connect two distinct A/V sources -- one VGA and one HDMI to the same VGA monitor or projector, and automatically or manually switch between which video source is displayed.  This multi-input switch supports video resolution up to 1920x1200 (1080p) and includes mounting hardware for a tidy, professional installation.


One Switch for HDMI and VGA


The A/V switch features built-in HDMI conversion, enabling you to connect an HDMI as well as a VGA video source to the same VGA display, without the use of  additional adapters or scalers. The switch also supports EDID pass-through, EDID copy, and EDID emulation to ensure your HDMI and VGA native resolutions will be maintained between both source connections.


Effortless Control


The VS221HD2VGA ensures hassle-free operation with support for priority port selection, enabling you to choose which port should be selected first by sequence. Once the device connected to your specific port is activated, the switch will then automatically select that port.


Focus on Your Presentation not Boardroom Connections


This A/V switch has been designed with the boardroom and classroom in mind. The VS221HD2VGA features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to a display without the use of additional adapters. Plus, priority switching encourages on-the-fly collaboration among students or co-workers, by making it easy to share your projector between multiple source devices.

Application Diagram



Please Note:
Digitally encrypted content from the HDMI video source will not be displayed on the VGA display. If you are looking for a similar device with HDMI output, please see our VS221VGA2HD.


If you are looking for a similar device with HDMI output, please see our VS221VGA2HD


The VS221VGA2HD is backed by a StarTech.com 2-year warranty, and free lifetime technical support.


The StarTech.com Advantage
  • EDID emulation ensures optimal video output, for seamless switching
  • Effortless priority switching
  • Allow your presenters / guests to focus on the content of their presentation or lesson without the worry of connecting to an available display or projector

Applications
  • Automatically switch between your set-top box or computer in a home theatre environment
  • Share a classroom or conference room projector with VGA and HDMI video sources
  • Connect and switch between VGA and HDMI video sources on a test bench, for troubleshooting computers
  • Switch between VGA and HDMI video sources on your digital signage display in hospitals, shopping centers, or schools

Warranty Information

Warranty
2 Years

Hardware

Audio
Yes

Ports
2

Performance

Audio Specifications
2-channel 3.5mm stereo audio

Maximum Analog Resolutions
1920x1200

Maximum Digital Resolutions
1920x1200

Supported Resolutions
Supports resolutions up to 1920x1200 / 1080p

Wide Screen Supported
Yes

Connector(s)

Connector A
1 - VGA (15 pin, High Density D-Sub) Female

1 - HDMI (19 pin) Female

Connector B
1 - VGA (15 pin, High Density D-Sub) Female

Special Notes / Requirements

Note
Digitally encrypted content from the HDMI video source will not be displayed on the VGA display

Indicators

LED Indicators
1 - VGA Port Selected

1 - HDMI Port Selected

Power

Input Current
0.4 A

Input Voltage
100 ~ 240 AC

Output Current
2 A

Output Voltage
5 DC

Power Consumption (In Watts)
10

Power Source
AC Adapter Included

Environmental

Humidity
0%~80%

Operating Temperature
0°C to 40°C (32°F to 104°F)

Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Product Height
0.8 in [20 mm]

Product Length
3.3 in [84 mm]

Product Weight
6.1 oz [172 g]

Product Width
2.3 in [59 mm]

Packaging Information

Shipping (Package) Weight
21.2 oz [600 g]

What's in the Box

Included in Package
1 - VGA+HDMI to VGA converter switch

1 - mounting brackets

1 - universal power adapter (NA, EU, UK, ANZ)

1 - instruction manual



2X1 VGA+HDMI TO VGA CONVERTER SWITCH WITH PRIORITY SWITCHING MULTI FORMAT VGA AND HDMI TO VGA SELECTOR BOX VGA HDMI TO VGA AUTO SWITCH AUTOMATIC HDMI TO VGA SWITCH 1080P


Brand Name: StarTech.com
Connectivity Technology: Cable
Device Supported: Computer
Device Supported: Display
Device Supported: Projector
Device Supported: Set-top Box
HDMI In: Yes
Number of Displays Supported: 1
Number of HDMI Inputs: 1
Number of Input Devices Supported: 2
Number of VGA Inputs: 1
Product Type: Audio/Video Switchbox
VGA In: Yes
VGA Out: Yes


Basic

Brand Name:
StarTech.com

Connectivity Technology:
Cable

Device Supported:
Computer

Display

Projector

Set-top Box

HDMI In:
Yes

Number of Displays Supported:
1

Number of HDMI Inputs:
1

Number of Input Devices Supported:
2

Number of VGA Inputs:
1

Product Type:
Audio/Video Switchbox

VGA In:
Yes

VGA Out:
Yes
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
VS221HD2VGA

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
2x1 VGA + HDMI to VGA Converter Switch w/ Priority Switching -1080p

Product Type:
Audio/Video Switchbox
Interfaces/Ports

Audio Line In:
Yes

Audio Line Out:
Yes

HDMI In:
Yes

Number of HDMI Inputs:
1

Number of VGA Inputs:
1

Number of VGA Outputs:
1

VGA In:
Yes

VGA Out:
Yes
Miscellaneous

Certifications & Standards:
  • CE
  • FCC

Environmentally Friendly:
Yes
Physical Characteristics

Depth:
83.8 mm

Height:
20.3 mm


Weight (Approximate):

172 g

Width:
58.4 mm
Power Description

Input Voltage:
120 V AC

230 V AC
Technical Information

Connectivity Technology:
Cable

Device Supported:
Computer

Display

Projector

Set-top Box

Number of Displays Supported:
1

Number of Input Devices Supported:
2
Video

Graphics Modes:
WUXGA

Maximum Video Resolution:
1920 x 1200
