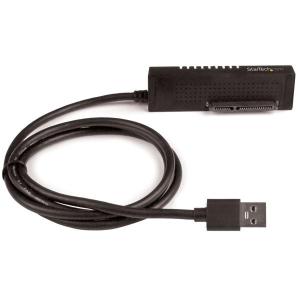

Startech USB 3.1 (10 Gbps) Adapter Cable for 2.5" and 3.5" SATA Drives USB312SAT3

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

USB312SAT3

Easily access, transfer and backup data from a SATA drive to your PC or laptop, through USB 3.1

Connect a 2.5 in./3.5 in. SATA drive to your laptop or desktop, for quick access to your external data
Integrated 1 m cable, for convenient use
Fast data transfer rates through USB 3.1 Gen 2 (10Gbps)

This USB 3.1 to SATA adapter gives you fast and easy access to the data on your 2.5 in./3.5 in. solid-state drives and hard drives. The adapter cable lets you connect your laptop or desktop computer directly to a SATA drive and access it through ultra-fast USB 3.1 Gen. 2 (up to 10Gbps).

Convenient and versatile drive access

• An external solid-state drive connected to a laptop through the USB 3.1 to SATA adapter

This adapter cable lets you quickly swap your drives. You can copy or retrieve data from your 2.5 in. or 3.5 in. SATA drive, with no additional accessories required.

The tool-free adapter cable is ideal for IT technicians who need fast access to SATA drives. It’s the perfect solution for data migration, drive cloning, and data backup or recovery applications, providing the fast performance of USB 3.1 Gen 2. You can also operate multiple adapters at the same time, when you require simultaneous access to many drives.

Harness the speed of USB 3.1 Gen 2

• Diagram comparing transfer rates of USB 3.1 Gen 2 at 10Gbps, twice as fast as USB 3.0 at 5Gbps, twenty times as fast as USB 2.0

USB 3.1 Gen 2 gives you greater bandwidth and speed with rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Portable and easy to use

The compact, lightweight design of the USB 3.1 to SATA adapter provides easy portability. The adapter features an integrated 1 m cable, so you never to worry about forgetting to bring your connector cable with you.

You can connect easily to a 2.5 in. solid-state drive or hard drive, using USB power, with no external power required. A universal power adapter is included for use when connecting to your 3.5 in. drives or for any 2.5 in. drives that may require additional power.

The USB312SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Technicians who need a quick, easy way to access data on 2.5 in. and 3.5 in. solid-state drives and hard drives
Access any 2.5 in. or 3.5 in. SSD/HDD from any USB enabled computer, for easy data migration or drive cloning
Back up important data to an external storage device
Restore your computer from a backup hard drive
Archive media content such as photos and videos to a bare external drive
Retrieve data from your old SATA drives

Warranty Information
Warranty	2 Years
Hardware
Bus Type	USB 3.1 Gen 2
Chipset ID	ASMedia - ASM1351
Compatible Drive Types	SATA
Drive Size	2.5in & 3.5in
Interface	USB 3.1 Gen 2
Number of Drives	1
Performance
Hot Swap Capability	Yes
Max Drive Capacity	Currently tested with hard drives up to 6TB
Maximum Data Transfer Rate	10 Gbps
Type and Rate	USB 3.1 Gen 2 - 10 Gbit/s
	SATA III (6 Gbps)
UASP Support	Yes
Connector(s)
Drive Connectors	1 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors	1 - USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Male
Software
OS Compatibility	OS independent; No software or drivers required
Indicators
LED Indicators	1 - Power and Activity
Power
Center Tip Polarity	Positive
Input Current	0.6 A
Input Voltage	110V-240V AC
Output Current	2.0 A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	24
Power Source	AC Adapter Included
Environmental
Humidity	0% ~ 80% RH
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-20°C to 80°C (-4°F to 176°F)
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	0.6 in [15 mm]
Product Length	3.3 in [85 mm]
Product Weight	2 oz [57 g]
Product Width	0.6 in [14 mm]
Packaging Information
Shipping (Package) Weight	11.4 oz [323 g]
What's in the Box
Included in Package	1 - USB 3.1 to SATA adapter for 2.5in/3.5in SSD/HDD
	1 - universal power adapter (NA,UK,EU,ANZ) (94mm cable length)
	1 - quick start guide

USB 3.1 (10 GBPS) ADAPTER CABLE FOR 2.5IN AND 3.5IN SATA DRIVES

Brand Name: StarTech.com

Cable Length: 6.35 cm

Cable Type: SATA/USB

Colour: Black

Connector on First End: 1 x SATA

Connector on Second End: 1 x Type A Male USB

Packaged Quantity: 1

Product Type: Data Transfer Cable

Basic
Brand Name:	StarTech.com
Cable Length:	6.35 cm
Cable Type:	SATA/USB
Colour:	Black
Connector on First End:	1 x SATA
Connector on Second End:	1 x Type A Male USB
Packaged Quantity:	1
Product Type:	Data Transfer Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	USB312SAT3
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	USB 3.1 (10 Gbps) Adapter Cable for 2.5in and 3.5in SATA SSD/HDD Drives
Product Type:	Data Transfer Cable

Physical Characteristics
Colour:	Black
Weight (Approximate):	79.4 g

Technical Information
Cable Length:	6.35 cm
Cable Type:	SATA/USB
Connector on First End:	1 x SATA
Connector on Second End:	1 x Type A Male USB
Data Transfer Rate:	1.25 GB/s
Device Supported:	Notebook
	Solid State Drive

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 543178

Vendor Part No USB312SAT3

UPC/EAN Number 065030863797
