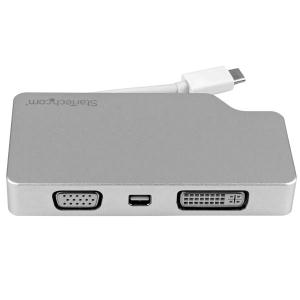

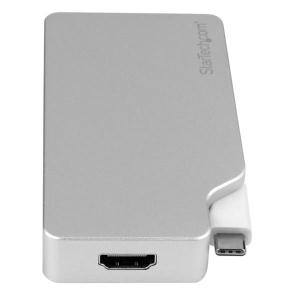

Startech Aluminum Travel A/V Adapter: 4-in-1 USB-C to VGA, DVI, HDMI or mDP - 4K CDPVGDVHDMDP

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

CDPVGDVHDMDP




Keep this compact adapter with your laptop while you’re traveling, to connect to virtually any monitor, television or projector


  • 4-in-1 adapter - USB-C to VGA, USB-C to DVI, USB-C to HDMI and USB-C to Mini DisplayPort


  • Maximum portability with built-in magnetic cable manager


  • Astonishing picture quality with support for UHD 4K


This 4-in-1 travel adapter offers a portable solution for connecting your USB-C computer to a VGA, DVI, HDMI® or Mini DisplayPort display.


The travel adapter is VESA certified to ensure compatibility with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB-C port.


Stylish connectivity for your MacBook with USB-C

Photograph of the adapter connected to the 2015 MacBook

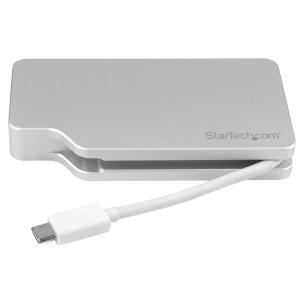

This travel adapter has been constructed with a sturdy aluminum housing and a built-in white USB-C cable. The adapter looks great and works well with any device that supports USB-C DP alt mode.


All-in-one video connectivity, with travel in mind


Instead of filling your laptop bag with different converters for different displays, this 4-in-1 adapter gives you all the video outputs you'll need. With VGA, DVI, HDMI and Mini DisplayPort outputs, this adapter lets you connect from your laptop's USB Type-C port to any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type.


With support for multiple video outputs and a small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.


Innovative, built-in cable manager

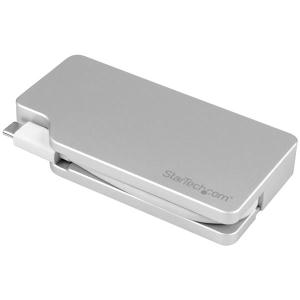

The adapter features a built-in magnetic fastener, for cable management. The magnet helps guide the breakout cable into place for quick and secure storage while traveling, ensuring the adapter is neatly stored in your travel bag.


Astonishing picture quality


The HDMI and Mini DisplayPort outputs on this travel adapter support Ultra HD 4K resolutions providing four times the picture quality of high-definition 1080p. The HDMI and mDP outputs are also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support a high-definition maximum resolutions of up to 1920 x 1200 so you can still enjoy excellent video quality.


The travel adapter is compatible with USB Type C Intel® Thunderbolt™ 3 devices that are capable of outputting a DisplayPort signal.


The CDPVGDVHDMDP is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Keep the adapter with you while traveling, to connect to virtually any display
  • Connect your BYOD MacBook to a provided VGA, DVI, HDMI or mDP display at work
  • Connect a VGA, DVI, HDMI or Mini DisplayPort monitor to your MacBook, to use as a secondary monitor

Warranty Information

Warranty
2 Years

Hardware

Adapter Style
Adapters

Converter Type
Travel A/V Adapters

Output Signal
HDMI

VGA

DVI-D (DVI Digital)

Mini DisplayPort

Performance

Audio Specifications
HDMI and mDP output - 7.1 surround sound

General Specifications
Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.

Maximum Analog Resolutions
1920 x 1200

Maximum Digital Resolutions
3840 x 2160

Supported Resolutions 		Max HDMI output: 3840 x 2160 @ 30Hz

Max mDP output: 3840 x 2160 @ 60Hz

HDMI and mDP output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720

DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720

Video Revision
DisplayPort 1.2

Wide Screen Supported
Yes

Connector(s)

Connector A
1 - USB-C (24 pin) DisplayPort Alt Mode Male Input

Connector B
1 - Mini DisplayPort Female Output

1 - VGA (15 pin, High Density D-Sub) Female Output

1 - 25 pin DVI-D (Dual Link) Female Female Output

1 - HDMI (19 pin) Female Output

Environmental

Humidity
40%-50%RH

Operating Temperature
0°C to 70°C (32°F to 158°F)

Storage Temperature
-10°C to 80°C (14°F to 176°F)

Physical Characteristics

Cable Length
4.3 in [110 mm]

Color
White

Product Height
0.6 in [15 mm]

Product Length
4.1 in [105 mm]

Product Weight
4.4 oz [125 g]

Product Width
2.2 in [55 mm]

Packaging Information

Shipping (Package) Weight
0.4 lb [0.2 kg]

What's in the Box

Included in Package
1 - travel A/V adapter




Aluminum Travel A/V Adapter:
4-IN-1 USB-C TO VGA DVI HDMI OR MDP - 4K


Brand Name: StarTech.com
Connector on First End: Type C USB
Connector on Second End: DVI-D (Dual-Link) Female Digit
Connector on Second End: HD-15 Female VGA
Connector on Second End: HDMI Female Digital Audio/Vide
Material: Aluminium
Packaged Quantity: 1
Product Type: A/V Adapter


Basic

Brand Name:
StarTech.com

Connector on First End:
Type C USB

Connector on Second End:
DVI-D (Dual-Link) Female Digit

HD-15 Female VGA

HDMI Female Digital Audio/Vide

Material:
Aluminium

Packaged Quantity:
1

Product Type:
A/V Adapter
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
CDPVGDVHDMDP

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
Travel A/V Adapter

Product Type:
A/V Adapter
Physical Characteristics

Material:
Aluminium


Weight (Approximate):

136.1 g
Technical Information

Connector on First End:
Type C USB

Connector on Second End:
HD-15 Female VGA

Maximum Resolution Supported:
3840 x 2160
