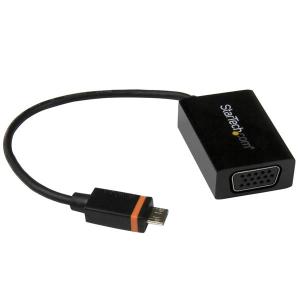

Startech SlimPort / MyDP to VGA Video Converter – Micro USB to VGA Adapter for HP ChromeBook 11 – 1080p SLMPT2VGA

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

SLMPT2VGA




Connect your SlimPort enabled device to a VGA monitor or projector, ideal for SlimPort-enabled Chromebook computers


  • Supports video resolution up to 1920x1200 at 60 FPS


  • Supports simultaneous charging when a Micro USB charge cable is attached to the mobile device


  • Compact, lightweight design


  • Supports HP Chromebook 11, and LG Optimus G Pro & LG G2 smartphones


The SLMPT2VGA Micro USB (SlimPort) to VGA adapter lets you connect your SlimPort / MyDP-enabled laptop or smartphone to any VGA-equipped television, monitor or projector. Perfect for extending workspace or viewing content from your HP Chromebook 11 laptop, LG Optimus G Pro or G2 smartphone on a larger screen, the adapter offers a simple way to increase productivity or share your screen for group viewing.


The SlimPort to VGA adapter supports video resolutions up to 1920x1200 at 60 frames per second, delivering high resolution video content to your display without sacrificing video quality on games or videos. You can also use the 3.5mm audio jack from your source device to provide stereo audio to your speakers; simply connect a 3.5mm audio cable from your source device to your display device or speaker system.


Plus, this compact, lightweight adapter features a Micro USB port on the side that lets you simultaneously charge your mobile device while you're using it to display content on an additional display, providing a convenient and highly portable accessory for connecting your SlimPort/MyDP device to a larger screen, even when you're on the go.


The SlimPort adapter is intended for displaying user-generated content such as presentations, documents, and work sheets onto a VGA projector or monitor. HDCP encrypted content will not be displayed and certain devices output HDCP for all content, by default these devices will not function with this adapter.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Increase your productivity by extending your desktop onto a VGA display for additional workspace, or sharing your SlimPort-enabled device with a larger display for group viewing
  • Play games and videos without missing a frame, with support for 60 frame per second video content
  • Keep your mobile device fully charged while connected to the adapter, by connecting USB power source with simultaneous charging support
  • Maximize portability with a compact, lightweight adapter that easily travels with your smartphone or tablet

Applications
  • Connect a SlimPort / MyDP-enabled device such as an HP Chromebook, or LG Optimus G Pro & LG G2 to a television, monitor or projector through VGA
  • Display video content such as a presentation from your SlimPort-enabled smartphone or computer to a VGA projector
  • Share photos or video from your SlimPort-enabled device to your VGA-enabled home theatre system

Warranty Information

Warranty

2 Years

Hardware

Audio

No

Chipset ID

Analogix 7732

Converter Type

Mobile Converter

Performance

Maximum Analog Resolutions

1920 x 1200

Maximum Cable Length

19.7 in [500 mm]

Wide Screen Supported

Yes

Connector(s)

Connector A

1 - Slimport®/MyDP (5 pin, USB Micro B) Male

Connector B

1 - VGA (15 pin, High Density D-Sub) Female

Connector Type(s)

1 - USB Micro-B (5 pin) Female

Special Notes / Requirements

Note

HDCP encrypted content will not be displayed

Environmental

Operating Temperature

0°C to 60°C (32°F to 140°F)

Storage Temperature

-10°C to 70°C (14°F to 158°F)

Physical Characteristics

Product Height

0.4 in [10 mm]

Product Length

1.6 in [40 mm]

Product Weight

0.6 oz [18 g]

Product Width

1 in [26 mm]

Packaging Information

Shipping (Package) Weight

1.4 oz [40 g]

What's in the Box

Included in Package

1 - SlimPort to VGA Adapter



SlimPort / MyDP to VGA Converter Micro USB to VGA Adapter for HP ChromeBook 11 LG Optimus G Pro/G2 Smartphones MyDP to VGA Adapter SlimPort toVGA Converter 1080p


Brand Name: StarTech.com
Cable Length: 4.06 cm
Cable Type: SlimPort/USB/VGA
Connector on First End: 1 x DisplayPort Male Digital A
Connector on Second End: 1 x HD-15 Female VGA
Connector on Second End: 1 x Type B Female Micro USB
Packaged Quantity: 1
Product Type: Video Cable


Basic

Brand Name:

StarTech.com

Cable Length:

4.06 cm

Cable Type:

SlimPort/USB/VGA

Connector on First End:

1 x DisplayPort Male Digital A

Connector on Second End:

1 x HD-15 Female VGA

1 x Type B Female Micro USB

Packaged Quantity:

1

Product Type:

Video Cable
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

SLMPT2VGA

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Marketing Content:

The SLMPT2VGA Micro USB (SlimPort) to VGA adapter lets you connect your SlimPort / MyDP-enabled laptop or smartphone to any VGA-equipped television, monitor or projector. Perfect for extending workspace or viewing content from your HP Chromebook 11 laptop, LG Optimus G Pro or G2 smartphone on a larger screen, the adapter offers a simple way to increase productivity or share your screen for group viewing.

Packaged Quantity:

1

Product Name:

SlimPort/USB/VGA Video Cable

Product Type:

Video Cable
Miscellaneous

Compatibility:

HP Chromebook 11 Laptop


LG Smartphones:

  • Optimus G Pro
  • G2
Physical Characteristics


Weight (Approximate):

18 g
Technical Information

Cable Length:

4.06 cm

Cable Type:

SlimPort/USB/VGA

Conductor:

Copper

Connector on First End:

1 x DisplayPort Male Digital Audio/Video

Connector on Second End:

1 x 15-pin HD-15 Female VGA

1 x 5-pin Type B Female Micro USB

Device Supported:

Monitor

Projector

Smartphone

TV

Tablet

Video Device
