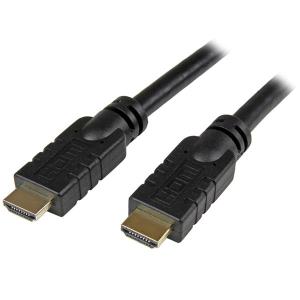

Startech High Speed HDMI Cable M/M - Active - CL2 In-Wall - 20 m (65 ft.) HDMM20MA

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

HDMM20MA




Connect your HDMI devices, up to 20m away with no signal loss


  • Built-in, active amplifier circuitry for longer connections


  • CL2-rated for in-wall installations


  • Supports Ultra HD Resolutions up to 4k x 2k


This active HDMI® cable offers a connection distance of up to 65 feet (20 meters) between your HDMI enabled devices. It meets CL2 rating safety requirements, so it’s ideal for in-wall cable runs in your home and office installations.


Dependable connections over longer distances


The cable features built-in amplifier circuitry which actively boosts your HDMI signal, with no external power required. It's the perfect solution for longer transmissions without any signal loss.


Run in-wall cable installations


The HDMI cable is CL2 rated for in-wall installations, which makes them perfect for A/V installations in residential or office settings. You can set up your home theatre, gaming or audio-video equipment with the cables hidden away safely inside the walls and place your devices as needed throughout your work or living space.


Deliver astonishing 4k video


This high-quality HDMI cable fully supports 1080p+ resolutions at up to 120Hz refresh rate, with life-like color. To accommodate the demands of future high-definition devices, such as increased resolutions and higher frame rates, this Ultra HD cable supports resolutions up to 4k x 2k.


The HDMM20MA is backed by StarTech.com's 2-year Warranty for guaranteed reliability.

Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the Source and Display labels on the HDMI connectors in order to ensure that the device and the HDMI source are connected properly.


Applications
  • Connect your high-definition A/V devices such as streaming media players (Roku®, Apple TV), game consoles (Xbox One, PS4), Blu-ray Disc™ or DVD players over long distances, with no signal loss

Warranty Information

Warranty

2 Years

Hardware

Cable Jacket Type

PVC - Polyvinyl Chloride

Cable Shield Type

Aluminum-Mylar Foil with Braid

Chipset ID

Redmere

Connector Plating

Gold

Fire Rating

CL2 Rated

Performance

Maximum Digital Resolutions

4K x 2K @ 30 Hz

Connector(s)

Connector A

1 - HDMI (19 pin) Male

Connector B

1 - HDMI (19 pin) Male

Physical Characteristics

Cable Length

65.6 ft [20 m]

Color

Black

Connector Style

Straight

Product Length

65.6 ft [20 m]

Product Weight

2.9 lb [1.3 kg]

Wire Gauge

28 AWG

Packaging Information

Package Quantity

1

Shipping (Package) Weight

3.8 lb [1.7 kg]

What's in the Box

Included in Package

1 - 20m Active CL2 In-Wall High Speed HDMI® Cable - HDMI - M/M



HIGH SPEED HDMI CABLE M/M - ACTIVE - CL2 IN-WALL - 20 M (65 FT.)


American Wire Gauge: 28 AWG
Brand Name: StarTech.com
Cable Length: 20 m
Cable Type: HDMI
Colour: Black
Connector on First End: 1 x HDMI Male Digital Audio/Vi
Connector on Second End: 1 x HDMI Male Digital Audio/Vi
Packaged Quantity: 1
Product Type: A/V Cable


Basic

American Wire Gauge:

28 AWG

Brand Name:

StarTech.com

Cable Length:

20 m

Cable Type:

HDMI

Colour:

Black

Connector on First End:

1 x HDMI Male Digital Audio/Vi

Connector on Second End:

1 x HDMI Male Digital Audio/Vi

Packaged Quantity:

1

Product Type:

A/V Cable
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

HDMM20MA

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

20m 65 ft High Speed HDMI Cable M/M - Active - CL2 In-Wall

Product Type:

A/V Cable
Miscellaneous

Compatibility:
  • Microsoft Xbox One
  • Sony PS4
Physical Characteristics

Colour:

Black


Weight (Approximate):

2.31 kg
Technical Information

American Wire Gauge:

28 AWG

Cable Length:

20 m

Cable Type:

HDMI

Connector Plating:

Gold Plated

Connector on First End:

1 x 19-pin HDMI Male Digital Audio/Video

Connector on Second End:

1 x 19-pin HDMI Male Digital Audio/Video

Device Supported:

Apple TV

Audio/Video Device

Blu-ray Player

DVD Player

Gaming Console

Home Theater System

Features:

Active

Shielding:

Yes
