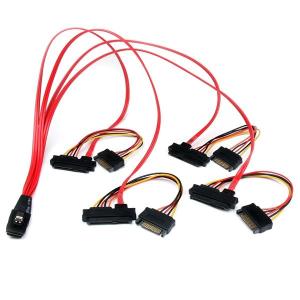

Startech 50cm Internal Serial Attached SCSI Mini SAS Cable - SFF8087 to 4x SFF8482 SAS808782P50

Features

sas808782p50 cable connector startech mini

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

SAS808782P50

Connect a SAS Controller to 4 SAS drives

Supports up to 6Gbps throughput per channel
4x SFF-8482 connections, each with data and power
1x SFF-8087 connector

The SAS808782P50 Mini SAS to SAS cable (50cm) features one 36-pin SFF-8087 plug, which fans out to four individual 29-pin SFF-8482 receptacles, providing a reliable solution for connecting multiple SAS HDD drives (with both data and power) to a single mini SAS controller connection.

This high quality internal Mini SAS to SAS cable is designed for long-lasting dependability and reliable performance and is backed by our lifetime warranty.

The StarTech.com Advantage

Saves money and reduces clutter by connecting 4x SFF-8482 SAS drives to 1x SFF-8087 SAS controller connection, through a single cable
Provides reliable, high-performance drive and Mini SAS controller connectivity
Backed by StarTech.com lifetime warranty

Applications

Connects four SAS hard drives to a SAS controller
SFF-8482 Connector will support SAS and SATA Hard Drives

Warranty Information
Warranty	Lifetime
Connector(s)
Connector A	1 - SFF-8087 (36 Pin, Internal Mini-SAS) Plug
Connector B	4 - SATA Power (15 pin) Plug
	4 - SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle
Physical Characteristics
Cable Length	1.6 ft [0.5 m]
Color	Red
Product Height	0.6 in [15 mm]
Product Length	1.6 ft [0.5 m]
Product Weight	0.2 lb [0.1 kg]
Product Width	2 in [50 mm]
Wire Gauge	30 AWG
Packaging Information
Package Quantity	1
Shipping (Package) Weight	0.2 lb [0.1 kg]
What's in the Box
Included in Package	1 - 50cm Serial Attached SCSI SAS Cable - SFF8087 to 4x SFF8482

50cm Internal Serial Attached SCSI Mini SAS Cable - SFF8087 to 4x SFF8482 - Internal Mini SAS Cable

Brand Name: StarTech.com

Cable Length: 50 cm

Cable Type: SAS/SATA

Colour: Red

Connector on First End: 1 x SFF-8087 Male Mini-SAS

Connector on Second End: 4 x Male SATA Power

Packaged Quantity: 1

Product Type: Data Transfer Cable

Basic
Brand Name:	StarTech.com
Cable Length:	50 cm
Cable Type:	SAS/SATA
Colour:	Red
Connector on First End:	1 x SFF-8087 Male Mini-SAS
Connector on Second End:	4 x Male SATA Power
Packaged Quantity:	1
Product Type:	Data Transfer Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	SAS808782P50
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	50cm Internal Serial Attached SCSI Mini SAS Cable - SFF8087 to 4x SFF8482
Product Type:	Data Transfer Cable

Lock
Cable Length:	50 cm

Miscellaneous
Device Supported:	Hard Drive
Green Compliant:	Yes

Physical Characteristics
Colour:	Red
Weight (Approximate):	90.7 g

Product Information
Cable Length:	50 cm
Device Supported:	Hard Drive
Packaged Quantity:	1

Technical Information
Cable Length:	50 cm
Cable Type:	SAS/SATA
Conductor:	Copper
Connector on First End:	1 x SFF-8087 Male Mini-SAS
Connector on Second End:	4 x Male SATA Power
	4 x SFF-8482 - Mini-SAS
Device Supported:	Hard Drive

Information

SKU/Item No 538912

Vendor Part No SAS808782P50

UPC/EAN Number 065030848039
