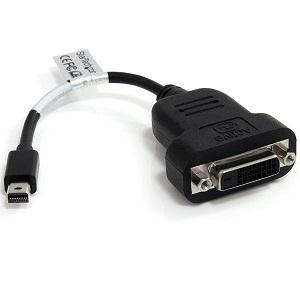

Startech Mini DisplayPort to DVI Active Adapter MDP2DVIS

Features

mdp2dvis displayport video startech digital

(Pictures are For Illustration Purposes Only)

Startech's MPN:

MDP2DVIS

Connect a DVI monitor to a single-mode DisplayPort output from your computer

Supports display resolutions up to 1920x1200
Works with video cards that aren't capable of outputting DP++ (multi-mode) signals
Compliant with DisplayPort 1.1a specifications

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) lets you connect your Mini-DisplayPort video source to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.

Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.

The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

This Mini DisplayPort to DVI adapter offers active signal conversion, which helps overcome the limitation of some Mini DisplayPort video cards not being able to output a DP++ (multimode) signal
Simple to use, small form-factor converter makes Mini-DisplayPort backwards compatible with your DVI-D single link display

Applications

Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
Keep your existing DVI monitor to be used with your new Mini DisplayPort device
Perfect for larger format screens that use high DVI resolutions
Adapt from graphics cards that are not capable of outputting DP++ signals
Ideal for using your DVI monitor as a secondary display

Warranty Information
Warranty	2 Years
Hardware
Adapter Style	Adapter
Audio	No
Converter Type	Active
Fire Rating	LSZH Rated (Low Smoke Zero Halogen)
Industry Standards	HDCP 1.3 DisplayPort 1.1 DDWG 1.0
Output Signal	DVI-D (DVI Digital)
Performance
Maximum Digital Resolutions	1920x1200
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - Mini-DisplayPort (20 pin) Male
Connector B	1 - DVI-D (25 pin) Female
Environmental
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	0°C to 70°C (32°F to 158°F)
Physical Characteristics
Color	Black
Product Height	0.8 in [20 mm]
Product Length	7.9 in [200 mm]
Product Weight	2.5 oz [70 g]
Product Width	1.7 in [44 mm]
Packaging Information
Shipping (Package) Weight	0.2 lb [0.1 kg]
What's in the Box
Included in Package	1 - Mini-DisplayPort to DVI Adapter

Mini DisplayPort to DVI Active Adapter - 1920x1200 - Mini DP to DVI Active Adapter Converter

Brand Name: StarTech.com

Cable Type: DisplayPort/DVI

Colour: Black

Connector on First End: 1 x DisplayPort Male Digital V

Connector on Second End: 1 x DVI-D Female Digital Video

Product Type: Video Cable

Basic
Brand Name:	StarTech.com
Cable Type:	DisplayPort/DVI
Colour:	Black
Connector on First End:	1 x DisplayPort Male Digital V
Connector on Second End:	1 x DVI-D Female Digital Video
Product Type:	Video Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	MDP2DVIS
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Marketing Content:	The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) lets you connect your Mini-DisplayPort video source to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Product Model:	MDP2DVIS
Product Name:	Standard DisplayPort to DVI Active Adapter
Product Type:	Video Cable

Miscellaneous
Certifications & Standards:	CE FCC
Device Supported:	Monitor
Green Compliance Certificate/Authority:	RoHS
Green Compliant:	Yes

Physical Characteristics
Colour:	Black

Product Information
Device Supported:	Monitor

Technical Information
Cable Type:	DisplayPort/DVI
Conductor:	Copper
Connector on First End:	1 x DisplayPort Male Digital Video
Connector on Second End:	1 x DVI-D Female Digital Video
Device Supported:	Monitor
Supported Resolution:	1920 x 1200

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 538074

Vendor Part No MDP2DVIS

UPC/EAN Number 065030842334
