Startech HDMI Signal Booster - 115 ft - 1080p HDBOOST

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

HDBOOST




Amplify the strength of your HDMI signal to extend your video source up to 115 ft. over standard HDMI cable


  • Discreet installation with a small form factor and no external power adapter


  • Works at varying distances up to 115 ft. with a built-in equalization switch


  • Maintain high-definition resolutions up to 1080p


This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.

HDMI booster extends a video source to a display


Discreet installation


With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.


Compatible with varying distances

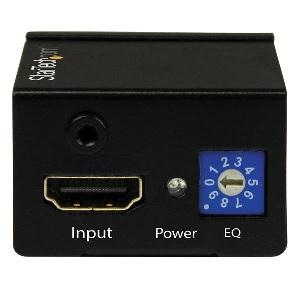

The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.


Maintains high-definition video signals


When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.


The HDBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Applications
  • Avoid running network cabling to extend video signals, by using this booster with standard HDMI cabling
  • Boost the signal strength of your HDMI video signals for classroom, office or boardroom displays

Warranty Information

Warranty
2 Years

Hardware

Audio
Yes

Cabling
HDMI

Rack-Mountable
Yes

Performance

Audio Specifications
7.1 surround Sound

Max Distance
35 m / 115 ft

Maximum Cable Length
114.8 ft [35 m]

Maximum Digital Resolutions
1920 x 1080 at 60Hz

Supported Resolutions
1920 x 1080, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768, 1280 × 720

Wide Screen Supported
Yes

Connector(s)

Connector A
1 - HDMI (19 pin) Female Input

Connector B
1 - HDMI (19 pin) Female Output

Special Notes / Requirements

System and Cable Requirements
The HDMI cable connected to your video source must be longer or equal to the length of the cable connected to your display.

The maximum supported video source cable length is 82 ft. (25m).

The maximum supported display cable length is 33 ft. (10m).

Indicators

LED Indicators
1 - power LED (blue)

1 - video source LED (blue)

Power

Center Tip Polarity
Positive

Input Voltage
100 ~ 240 AC

Output Current
1 A

Output Voltage
5 DC

Plug Type
N

Power Source
Not Included (not required for standard applications)

Environmental

Humidity
5% to 90%

Operating Temperature
0°C to 70°C (32°F to 158°F)

Storage Temperature
-10°C to 80°C (14°F to 176°F)

Physical Characteristics

Product Height
1 in [26.2 mm]

Product Length
2.1 in [54.2 mm]

Product Weight
2.5 oz [72 g]

Product Width
1.7 in [42.2 mm]

Packaging Information

Shipping (Package) Weight
0.4 lb [0.2 kg]

What's in the Box

Included in Package
1 - HDMI signal booster

2 - mounting brackets

4 - mounting screws

1 - screwdriver



HDMI SIGNAL BOOSTER - 115 FT - 1080P


Brand Name: StarTech.com
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Product Type: Signal Amplifier


Basic

Brand Name:
StarTech.com

Number of HDMI Inputs:
1

Number of HDMI Outputs:
1

Product Type:
Signal Amplifier
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
HDBOOST

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
HDMI Signal Booster - HDMI Video Signal Amplifier - 115 ft - 1080p

Product Type:
Signal Amplifier
Interfaces/Ports

HDMI In:
Yes

HDMI Out:
Yes

Number of HDMI Inputs:
1

Number of HDMI Outputs:
1
Media & Performance

Maximum Operating Distance:
35.05 m
Physical Characteristics

Height:
25.4 mm

Length:
53.3 mm


Weight (Approximate):

70.9 g

Width:
43.2 mm
Power Description

Input Voltage:
5 V DC
Video

Maximum Video Resolution:
1920 x 1080
