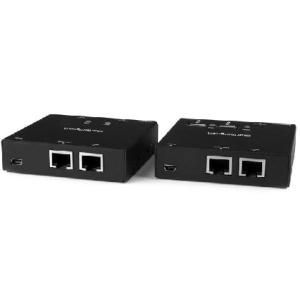

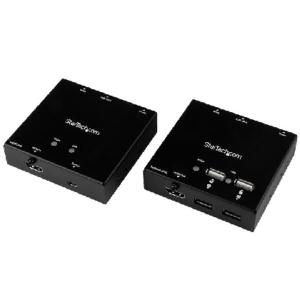

Startech HDMI over CAT6 Extender with 4-port USB Hub - 165 ft (50m) - 1080p ST121USBHD

Features

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

ST121USBHD

Extend 1080p video and four USB peripheral devices to a remote location

Crystal-clear picture quality, with support for uncompressed 1920x1200 or 1080p HD video extension
Easy remote peripheral integration, with a built-in 4-port USB hub
Tidy, professional installation using the included mounting hardware

This HDMI® extender kit lets you transmit your 1080p HD video source to your remote HDMI display at distance of up to 165 ft. away (50 m) using shielded CAT6 cabling. The extender features a built-in 4-port USB 2.0 hub that also lets you connect four remote USB peripheral devices at your display location.

Crystal-clear picture quality

Using this HDMI extender, you can maintain the quality of your high-definition video signal along with the accompanying 7.1 digital audio, even at 165 feet away from your source device. The extender supports resolutions up to 1920x1200 or 1080p - perfect for dazzling your audience in remote digital-signage applications in hospitals or at shopping centers.

Hassle-free remote USB integration

The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for flash drives, printers, scanners, external hard drives and I/O devices. Remote USB extension also enables you to remotely control your source device, which is ideal for adding touchscreen interfaces at your display in market or POS kiosks.

Easy installation and setup

For hassle-free setup the HDMI extender offers easy plug-and-play installation with no additional software or drivers required. Plus, the extender passes the EDID information included in your HDMI signal, and automatically adjusts video equalization ensuring you won’t have to configure it manually. Mounting hardware is also included, for a tidy and professional installation.

Note: To maximize performance this extender requires shielded CAT6 cable. When using unshielded CAT6 cable the maximum distance is reduced to 30m. When using CAT5 cable the maximum distance is reduced to 15m.

The ST121USBHD is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Applications

Place your display in a convenient viewing area, while your system equipment is installed elsewhere in a clean and secure environment
Optimize placement of your demo stations at tradeshows and in auditoriums
Operate one or more servers from a remote location within the same building or campus
Control your PC in an area where fan or hard drive noise is unacceptable, such as a television broadcast studio

Warranty Information
Warranty	2 Years
Hardware
Audio	Yes
Cabling	Cat 5 UTP or better
Daisy-Chain	No
Ports	1
Performance
Audio Specifications	Supports Dolby TrueHD, DTS-HD MA
IR Interface	Bi-directional 38Khz / ±10° / 5M
Max Distance	50 m / 165 ft
Maximum Data Transfer Rate	HDMI - 3.4Gbps RS232 - 115200bps baud
Maximum Digital Resolutions	1080p @ 60Hz, 48-bit
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - HDMI (19 pin) Female Input
	2 - USB Mini-B (5 pin) Female
Connector B	1 - HDMI (19 pin) Female Output
	4 - USB Type-A (4 pin) USB 2.0 Female
	1 - USB Mini-B (5 pin) Female
Power
Output Current	1 A
Output Voltage	5 DC
Plug Type	N
Power Consumption (In Watts)	5
Power Source	AC Adapter Included
Environmental
Humidity	0% - 80 % RH (non-condensing)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 60°C (14°F to 140°F)
Physical Characteristics
Product Height	0.8 in [21 mm]
Product Length	3.2 in [82 mm]
Product Weight	8.1 oz [230 g]
Product Width	3.2 in [82 mm]
Packaging Information
Shipping (Package) Weight	2.4 lb [1.1 kg]
What's in the Box
Included in Package	1 - HDMI over CAT6 transmitter
	1 - HDMI over CAT6 receiver
	2 - Ethernet cables
	2 - USB to Mini-USB cables
	1 - universal power adapter (NA/EU/UK/AU)
	1 - mounting kit
	1 - quick install guide

HDMI over CAT6 Extender with 4-port USB Hub - Remote HDMI over CAT5 or CAT6 - 165 ft (50m) - 1080p - Extend video and four USB peripherals to a remote location using CAT5 or CAT6

Brand Name: StarTech.com

Connectivity Technology: Wired

Maximum Operating Distance: 79.25 m

Media Type Supported: Twisted Pair

Number of HDMI Inputs: 1

Number of Input Devices Supported: 1

Number of Network (RJ-45) Ports: 4

Number of Output Devices Supported: 1

Number of USB Ports: 5

Product Type: Video Extender Transmitter/Rec

Basic
Brand Name:	StarTech.com
Connectivity Technology:	Wired
Maximum Operating Distance:	79.25 m
Media Type Supported:	Twisted Pair
Number of HDMI Inputs:	1
Number of Input Devices Supported:	1
Number of Network (RJ-45) Ports:	4
Number of Output Devices Supported:	1
Number of USB Ports:	5
Product Type:	Video Extender Transmitter/Rec

General Information
Brand Name:	StarTech.com
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Name:	HDMI over CAT6 Extender with 4-port USB Hub - 165 ft (50m) - 1080p
Product Type:	Video Extender Transmitter/Receiver

Interfaces/Ports
HDMI In:	Yes
HDMI Out:	Yes
Network (Rj-45):	Yes
Number of HDMI Inputs:	1
Number of HDMI Outputs:	1
Number of Network (RJ-45) Ports:	4
Number of USB Ports:	5
Serial Port:	Yes
USB:	Yes

Media & Performance
Media Type Supported:	Twisted Pair
Twisted Pair Cable Standard:	Category 6

Technical Information
Connectivity Technology:	Wired
Maximum Operating Distance:	79.25 m
Number of Input Devices Supported:	1
Number of Output Devices Supported:	1

Video
Graphics Modes:	WUXGA
Maximum Video Resolution:	1920 x 1200

Information

SKU/Item No 538068

Vendor Part No ST121USBHD

UPC/EAN Number 065030862363
