Startech HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m) ST121SHD50

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

ST121SHD50




Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver


  • Power Over Cable allows a single power source to operate the Transmitter and Receiver


  • Supports Cat5e or Cat6 Ethernet cabling (50m)


  • No software/drivers required


The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.


With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.


For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.


The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Requires only a single power adapter that can be connected to either the Transmitter or Receiver
  • Cost-effective HDMI extension through non-proprietary network cabling
  • Clean, professional installation, using optional mounting hardware (included)

Applications
  • Extend HDMI when power outlets are limited, with only a single power adapter required at either the Transmitter or Receiver using Power Over Cable
  • Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
  • Optimize placement of digital signage in healthcare, education, retail, and government facilities

Warranty Information

Warranty
2 Years

Hardware

Audio
Yes

Cabling
Cat 5 UTP or better

Daisy-Chain
No

Ports
1

Rack-Mountable
Yes

Performance

General Specifications 		Maximum Distances - (1080i only)

CAT5E (stranded) - 40m (130 ft)

CAT5E (solid) - 50m (165 ft)

CAT6 (stranded or solid) - 50m (165 ft)

Max Distance
50 m / 165 ft

Maximum Digital Resolutions
1080p / 1920x1080

Supported Resolutions
1080i

- Cat6 (stranded or solid) - up to 50m

- Cat5e (solid) - up to 50m

- Cat5e (stranded) - up to 40m


1080p

- Cat6 (solid or stranded) - up to 40m

- Cat5 (solid) - up to 20m

- Cat5 (stranded) - up to 16m


See product manual for further details

Wide Screen Supported
Yes

Connector(s)

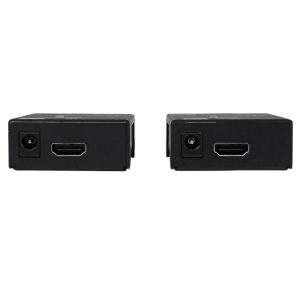

Local Unit Connectors
1 - HDMI (19 pin) Female

2 - RJ-45 Female

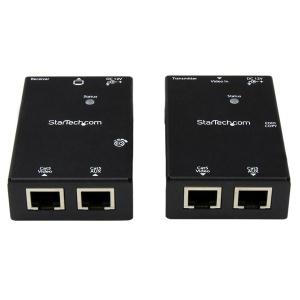

Remote Unit Connectors
1 - HDMI (19 pin) Female

2 - RJ-45 Female

Indicators

LED Indicators
1 - Power

Power

Center Tip Polarity
Positive

Input Current
0.5 A

Input Voltage
100 ~ 240 AC

Output Current
1.5 A

Output Voltage
12 DC

Plug Type
M

Power Consumption (In Watts)
18

Power Source
AC Adapter Included

Environmental

Humidity
0% - 80 %

Operating Temperature
0°C to 40°C (32°F to 104°F)

Storage Temperature
-10°C to 60°C (14°F to 115°F)

Physical Characteristics

Color
Black

Enclosure Type
Aluminum

Product Height
0.8 in [21 mm]

Product Length
3.1 in [80 mm]

Product Weight
5.5 oz [157 g]

Product Width
2 in [51 mm]

Packaging Information

Shipping (Package) Weight
1.5 lb [0.7 kg]

What's in the Box

Included in Package
1 - HDMI over CAT5e/6 UTP transmitter

1 - HDMI over CAT5e/6 UTP receiver

1 - universal power adapter (NA / EU / UK / AU)

2 - mounting brackets

2 - foot pad set

1 - instruction manual



HDMI Over CAT5/CAT6 Extender with Power Over Cable (POC) - 165 ft (50m) HDMI Video/Audio Over Dual Ethernet Cable Extender - HDMI over Network Cable Extender - 1080p/1920x1080


Brand Name: StarTech.com
Connectivity Technology: Wired
Form Factor: Rack-mountable
Maximum Operating Distance: 50 m
Media Type Supported: Twisted Pair
Number of HDMI Inputs: 1
Number of Input Devices Supported: 1
Number of Network (RJ-45) Ports: 4
Number of Output Devices Supported: 1
Product Type: Video Console/Extender


Basic

Brand Name:
StarTech.com

Connectivity Technology:
Wired

Form Factor:
Rack-mountable

Maximum Operating Distance:
50 m

Media Type Supported:
Twisted Pair

Number of HDMI Inputs:
1

Number of Input Devices Supported:
1

Number of Network (RJ-45) Ports:
4

Number of Output Devices Supported:
1

Product Type:
Video Console/Extender
Camera

Maximum Video Resolution:
1920 x 1080
Display & Graphics

Graphics Modes:
Full HD

Maximum Video Resolution:
1920 x 1080
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
ST121SHD50

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Product Model:
ST121SHD50

Product Name:
HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m)

Product Type:
Video Console/Extender
Interfaces/Ports

HDMI In:
Yes

HDMI Out:
Yes


Network (Rj-45):

Yes

Number of HDMI Inputs:
1

Number of HDMI Outputs:
1

Number of Network (RJ-45) Ports:
4
Media & Performance

Connectivity Technology:
Wired

Maximum Operating Distance:
50 m

Media Type Supported:
Twisted Pair

Twisted Pair Cable Standard:
Category 6
Miscellaneous

Form Factor:
Rack-mountable
Network & Communication

Connectivity Technology:
Wired
Physical Characteristics

Colour:
Black

Form Factor:
Rack-mountable

Height:
20.3 mm

Length:
78.7 mm

Material:
Aluminium


Weight (Approximate):

155.9 g

Width:
50.8 mm
Product Information

Form Factor:
Rack-mountable

Length:
78.7 mm

Width:
50.8 mm
Technical Information

Connectivity Technology:
Wired

Daisy Chain:
No

Length:
78.7 mm

Maximum Operating Distance:
50 m

Media Type Supported:
Twisted Pair

Number of Input Devices Supported:
1

Number of Network (RJ-45) Ports:
4

Number of Output Devices Supported:
1

Twisted Pair Cable Standard:
Category 6
Video

Graphics Modes:
Full HD

Maximum Video Resolution:
1920 x 1080
