Startech 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART PEX1S553LP

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

PEX1S553LP




Add a RS-232 serial port to your standard or small form factor computer through a PCI Express expansion slot


  • One high speed RS232 serial port with data transfer rate up to 460.8 Kbps


  • Ships with half-height/low profile mounting bracket, includes standard bracket


  • Selectable power output on pin 9 for the serial port

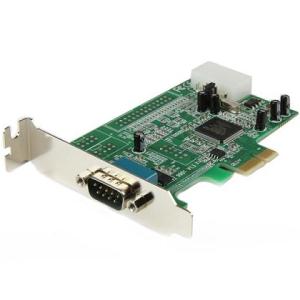

The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.


The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.


The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).


This product is a replacement for our PEX1S552LP card.


Backed by a StarTech.com Lifetime warranty and free lifetime technical support.


The StarTech.com Advantage
  • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance
  • Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility
  • Easy to install and use with full step-by-step instructions saving time and hassle

Applications
  • Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
  • Bank Teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
  • POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
  • Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
  • Used to control multiple surveillance / security cameras in a parking structure, office building, etc.

Warranty Information

Warranty
2 Years

Hardware

Bus Type
PCI Express

Card Type
Low Profile (SP bracket incl.)

Chipset ID
ASIX/MosChip - MCS9922CV-AA

Interface
Serial

Port Style
Integrated on Card

Ports
1

Performance

FIFO
128 Bytes

Max Baud Rate
460.8 Kbps

Serial Protocol
RS-232

Connector(s)

Connector Type(s)
1 - PCI Express x1 Male

External Ports

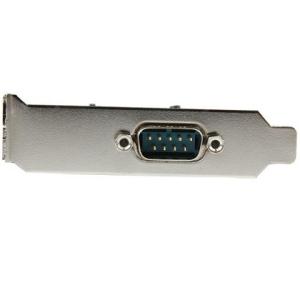

1 - DB-9 (9 pin, D-Sub) Male

Internal Ports
1 - LP4 (4 pin, Molex Large Drive Power) Male

Software

Microsoft WHQL Certified
Yes

OS Compatibility
Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Mac OS X® 10.4 to 10.10

Linux kernel 2.6.x to 4.4.x LTS Versions only

Environmental

Humidity
5~85% RH

Operating Temperature
-10°C to 80°C (14°F to 176°F)

Storage Temperature
-20°C to 100°C (-4°F to 212°F)

Physical Characteristics

Product Height
0.8 in [20 mm]

Product Length
4.1 in [105 mm]

Product Weight
1.8 oz [51.5 g]

Product Width
3.1 in [80 mm]

Packaging Information

Shipping (Package) Weight
0.4 lb [0.2 kg]

What's in the Box

Included in Package
1 - 1 Port PCI-Express Serial Card

1 - Full Profile Bracket

1 - Driver CD

1 - Instruction Manual



1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART


Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express
Number of Serial Ports (External): 1
Product Type: Serial Adapter


Basic

Brand Name:
StarTech.com

Form Factor:
Plug-in Card

Host Interface:
PCI Express

Number of Serial Ports (External):
1

Product Type:
Serial Adapter
Drive Performance

Data Transfer Rate:
460 kbit/s
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
PEX1S553LP

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Package Contents:
  • 1 Port Low Profile PCI Express Serial Card - 16550
  • Full Profile Bracket

Product Model:
PEX1S553LP

Product Name:
1 Port Low Profile PCI Express Serial Card - 16550

Product Type:
Serial Adapter
Input Devices

Data Transfer Rate:
460 kbit/s
Interfaces/Ports

Host Interface:
PCI Express

Number of Serial Ports (External):
1
Media & Performance

Data Transfer Rate:
460 kbit/s
Miscellaneous

Additional Information:
  • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
  • Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility.
  • Easy to install and use with full step-by-step instructions saving time and hassle.

Form Factor:
Plug-in Card

Green Compliance Certificate/Authority:
RoHS

Green Compliant:
Yes

Package Contents:
  • 1 Port Low Profile PCI Express Serial Card - 16550
  • Full Profile Bracket

Platform Supported:
PC
Physical Characteristics

Card Height:
Dual-profile

Form Factor:
Plug-in Card

Platform Supported:
PC
Product Information

Form Factor:
Plug-in Card

Platform Supported:
PC
Storage

Data Transfer Rate:
460 kbit/s
Technical Information

Data Transfer Rate:
460 kbit/s

Host Interface:
PCI Express

Platform Supported:
PC

UART Type:
16550
Warranty

Limited Warranty:
2 Year
