Startech 4 Port RS232 PCI Express Serial Card w/ Breakout Cable PEX4S553B

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

PEX4S553B




Add 4 RS232 serial ports to any PC using a single PCI Express expansion slot


  • Native single chip design

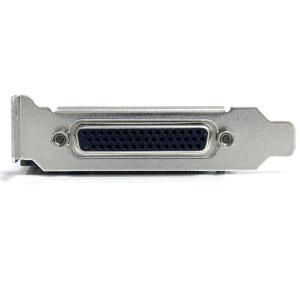

  • Includes a full profile and low profile/half-height bracket


  • On chip 256-byte depth FIFO in transmit/receive path of each port

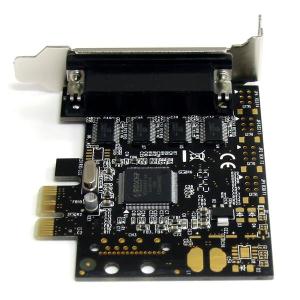

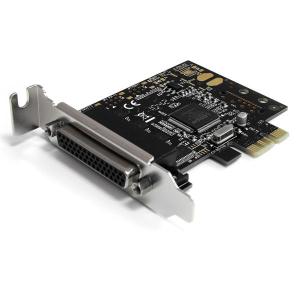

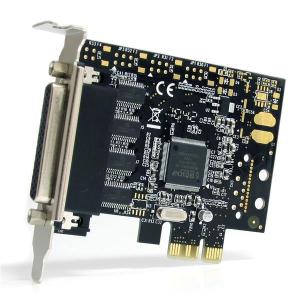

The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.


The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.


The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows®, Linux, and MAC OS.


This product is a replacement for our PEX4S552B card.


Backed by a StarTech.com lifetime warranty and free lifetime technical support.


The StarTech.com Advantage
  • Lower CPU load of native single-chip, single lane PCI Express design ensures optimal system performance (up to 48% less CPU load)
  • Includes both standard and low profile/half-height brackets, which makes this the perfect card for any application, including small form factor embedded applications
  • Breakout cable design means that only one expansion slot is needed, to add 4 additional serial ports to any system

Applications
  • Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
  • Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
  • Connect specialized parallel and serial devices like printers, scanners, ISDN terminal adapters, CD-R/RWs, Zip® drives and memory card readers
  • Environmental Control (lighting, temperature, clocks)
  • Entertainment (video lottery terminals, slot machines, gaming systems)
  • Healthcare (patient monitoring equipment, nurses' stations, modems)
  • Security (UPS control, access key panels, video cameras, card readers, modems)
  • Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
  • Consumer (modems, PDAs, digital cameras, printers)
  • ISDN Networking

Warranty Information

Warranty
Lifetime

Hardware

Bus Type
PCI Express

Card Type
Low Profile (SP bracket incl.)

Chipset ID
ASIX/MosChip - MCS9904CV-AA

Interface
Serial

Port Style
Dongle (Included)

Ports
4

Performance

Data Bits
5, 6, 7, 8

FIFO
256 Bytes

Max Baud Rate
230.4 Kbps

Parity
Even, Odd, None, Space and Mark

Serial Protocol
RS-232

Connector(s)

Connector Type(s)
1 - PCI Express x1 Male

External Ports
4 - DB-9 (9 pin, D-Sub) Male

Software

Microsoft WHQL Certified
Yes

OS Compatibility
Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Mac OS® 10.4 to 10.10

Linux 3.5.x to 4.4.x LTS Versions Only

Environmental

Humidity
5~85% RH

Operating Temperature
0°C to 70°C (32°F to 158°F)

Storage Temperature
-40°C to 85°C (-40°F to 185°F)

Physical Characteristics

Product Height
2.7 in [68.5 mm]

Product Length
3.2 in [80.5 mm]

Product Weight
1.8 oz [50 g]

Product Width
0.5 in [12 mm]

Packaging Information

Shipping (Package) Weight
0.7 lb [0.3 kg]

What's in the Box

Included in Package
1 - 4 Port PCI-Express Serial Card

1 - Breakout cable

1 - Full profile bracket

1 - Driver CD

1 - Instruction Manual



4 Port RS232 PCI Express Serial Card w/ Breakout Cable


Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express x1
Number of Ports: 4
Product Type: Multiport Serial Adapter


Basic

Brand Name:
StarTech.com

Form Factor:
Plug-in Card

Host Interface:
PCI Express x1

Number of Ports:
4

Product Type:
Multiport Serial Adapter
Drive Performance

Data Transfer Rate:
250 kbit/s
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
PEX4S553B

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Package Contents:
  • 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
  • 1 x DB9 Breakout Cable
  • 1 x Full Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

Product Name:
4 Port RS232 PCI Express Serial Card w/ Breakout Cable

Product Type:
Multiport Serial Adapter
Input Devices

Data Transfer Rate:
250 kbit/s
Interfaces/Ports

Host Interface:
PCI Express x1

Ports Expandability:
4 x 9-pin DB-9 Male RS-232 - Serial, Via Cable
Media & Performance

Data Transfer Rate:
250 kbit/s
Miscellaneous

Form Factor:
Plug-in Card

Green Compliance Certificate/Authority:
RoHS

Green Compliant:
Yes

Package Contents:
  • 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
  • 1 x DB9 Breakout Cable
  • 1 x Full Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

Platform Supported:
PC

System Requirements:

Operating System(s):

  • Windows 8 (32/64bit)
  • Windows 7 (32/64)
  • Windows Vista (32/64)
  • Windows XP (32/64)
  • Windows XP Embedded
  • Windows POSReady 2009
  • Windows Embedded System 2009
  • Windows CE 5.0
  • Windows CE 6.0
  • Windows 2000
  • Windows 98SE
  • Windows 95
  • Windows Server 2008 R2
  • Windows Server 2003(32/64)
  • DOS
  • Mac OS 10.4 and up (Tested up to 10.8)
  • Linux
Physical Characteristics

Form Factor:
Plug-in Card

Platform Supported:
PC
Product Information

Form Factor:
Plug-in Card

Platform Supported:
PC
Storage

Data Transfer Rate:
250 kbit/s
Technical Information

Data Transfer Rate:
250 kbit/s

Host Interface:
PCI Express x1

Platform Supported:
PC
Warranty

Limited Warranty:
2 Year
