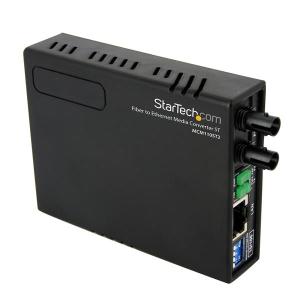

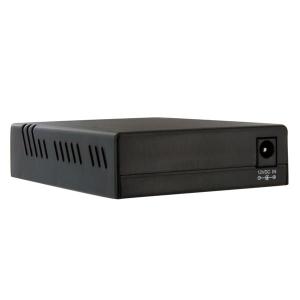

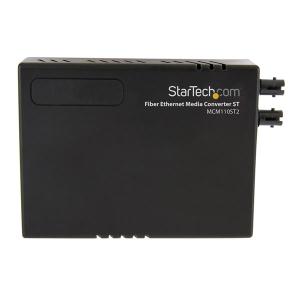

Startech 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km MCM110ST2

Features

Click to view full size

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

MCM110ST2

Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber

Supports a maximum multi mode fiber optic cable distance of 2 km
Supports full or half-duplex operation
Compatible with 3COM™, Cisco™, Lucent™ and Nortel™ networks

The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.

The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion

Applications

Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
Perfect for secure environments required by government agencies where EMI is not acceptable
Connect traffic control/monitoring systems at extreme distances to the main office
Extend network connectivity to remote areas of stadiums, auditoriums or other venues
Converts 10/100Base-T Ethernet to 100Base-FX fiber optic signals over multimode fiber cable

Warranty Information
Warranty	2 Years
Hardware
Industry Standards	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-FX
	IEEE 802.3u 100BASE-TX
PoE	No
WDM	No
Performance
Fiber Operating Mode	Half/Full-Duplex
Fiber Type	Multi Mode
Max Transfer Distance	2 km (1.2 mi)
Maximum Data Transfer Rate	10/100Mbps
MTBF	65,000 Hours
Optical Power	-14 ~ -20 dBm
Power Budget	11 dB
Sensitivity	-31 dBm
Wavelength	1310nm
Connector(s)
Local Unit Connectors	1 - Fiber Optic ST Duplex Female
	1 - RJ-45 Female
Indicators
LED Indicators	1 - Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link)
	1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
	1 - Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link)
	1 - Full ( Full duplex / Half duplex)
	1 - Power
	1 - Speed (10 or 100 Mbps)
Power
Center Tip Polarity	Positive
Input Voltage	115V AC
Output Current	0.2A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	2.4
Power Source	AC Adapter Included
Environmental
Humidity	10~90% RH
Operating Temperature	0°C to 50°C (32&degF to 122°F)
Storage Temperature	-10°C to 70°C (14&degF to 158°F)
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	0.8 in [20 mm]
Product Length	3.7 in [95 mm]
Product Weight	3.2 oz [90.5 g]
Product Width	3 in [75 mm]
Packaging Information
Shipping (Package) Weight	0.9 lb [0.4 kg]
What's in the Box
Included in Package	1 - Media Converter
	1 - Power Adapter
	1 - Instruction Manual

10/100 MULTI MODE FIBER COPPER FAST ETHERNET MEDIA CONVERTER ST 2 KM

Brand Name: StarTech.com

Form Factor: External

Maximum Distance Supported: 2 km

Network (RJ-45): Yes

Network Technology: 10/100Base-TX

Network Technology: 100Base-FX

Number of Network (RJ-45) Ports: 1

Number of ST Ports: 1

Product Type: Transceiver/Media Converter

Total Number of Ports: 2

Basic
Brand Name:	StarTech.com
Form Factor:	External
Maximum Distance Supported:	2 km
Network (Rj-45):	Yes
Network Technology:	10/100Base-TX
	100Base-FX
Number of Network (RJ-45) Ports:	1
Number of ST Ports:	1
Product Type:	Transceiver/Media Converter
Total Number of Ports:	2

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	MCM110ST2
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Model:	MCM110ST2
Product Name:	10/100 MultiMode Fiber to Ethernet Media Converter
Product Type:	Transceiver/Media Converter

Interfaces/Ports
Network (Rj-45):	Yes
Number of Network (RJ-45) Ports:	1
Number of ST Ports:	1
Total Number of Ports:	2

Media & Performance
Maximum Distance Supported:	2 km

Miscellaneous
Additional Information:	Plug Type: M Fiber Operating Mode: Half/Full-Duplex
Environmentally Friendly:	Yes

Network & Communication
Network Technology:	10/100Base-TX
	100Base-FX

Physical Characteristics
Form Factor:	External
Weight (Approximate):	90.4 g
Width:	73.1 mm

Information

SKU/Item No 537283

Vendor Part No MCM110ST2

UPC/EAN Number 065030835633
