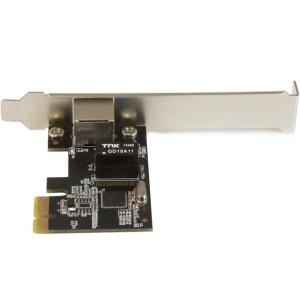

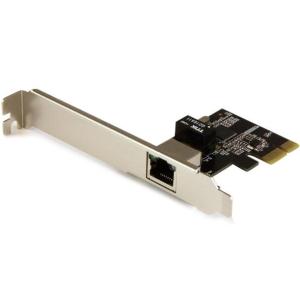

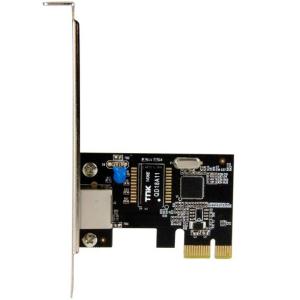

Startech 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC ST1000SPEXI

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

ST1000SPEXI




Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot


  • Add a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slot


  • Intel I210-AT chipset


  • PXE network boot


Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution.


The performance and reliability you demand in network connectivity


This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.


The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.


A versatile and cost-effective solution


Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX.


Easy installation


With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.


The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Upgrades to servers or workstations in need of enhanced performance, advanced features and greater reliability
  • Upgrade a 10/100 Ethernet port on your computer to GbE network capability
  • Add GbE networking capabilities to an old system that doesn't have an Ethernet port
  • Add an additional Ethernet port to a workstation or server computer for redundancy

Warranty Information

Warranty

2 Years

Hardware

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Chipset ID

Intel I210-AT

Industry Standards

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T

IEEE 802.1Q VLAN Tagging

IEEE 802.3x Full Duplex Flow Control

Ports

1

Performance

Auto MDIX

Yes

Compatible Networks

10/100/1000 Mbps

Full Duplex Support

Yes

Jumbo Frame Support

9K max.

Maximum Data Transfer Rate

2000 Mbps (full-duplex)

Promiscuous Mode

Yes

Connector(s)

Connector Type(s)

1 - PCI Express x1 Male

1 - RJ-45 Female

Software

OS Compatibility

Windows® 7, 8, 8.1, 10

Windows Server® 2008 R2, 2012 R2, 2016

Linux 2.4.x to 4.4.x LTS versions only

Special Notes / Requirements

System and Cable Requirements

Available PCI Express expansion card slot

Indicators

LED Indicators

1 - 100/1000 Mbps Indicator

1 - Link/Activity

Power

Power Consumption (In Watts)

Max 0.8W

Environmental

Humidity

20% ~ 80% RH

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color

Black

Product Height

0.7 in [18 mm]

Product Length

4.7 in [120 mm]

Product Weight

1.2 oz [35 g]

Product Width

2.6 in [66 mm]

Packaging Information

Shipping (Package) Weight

3.7 oz [104 g]

What's in the Box

Included in Package

1 - 1 Port Network Card

1 - Low Profile Bracket

1 - Instruction Manual



1-Port Gigabit Ethernet Network Card - PCI Express Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset - PXE Network Boot - PCIe Gigabit server adapter


Brand Name: StarTech.com
Device Supported: Computer
Form Factor: Plug-in Card
Host Interface: PCI Express x4
Network Technology: 10/100/1000Base-T
Number of Network (RJ-45) Ports: 1
Product Type: Gigabit Ethernet Card
Total Number of Ports: 1


Basic

Brand Name:

StarTech.com

Device Supported:

Computer

Form Factor:

Plug-in Card

Host Interface:

PCI Express x4

Network Technology:

10/100/1000Base-T

Number of Network (RJ-45) Ports:

1

Product Type:

Gigabit Ethernet Card

Total Number of Ports:

1
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

ST1000SPEXI

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC

Product Type:

Gigabit Ethernet Card
Interfaces/Ports

Host Interface:

PCI Express x4

Number of Network (RJ-45) Ports:

1

Total Number of Ports:

1
Media & Performance

Media Type Supported:

Twisted Pair
Miscellaneous

Device Supported:

Computer
Network & Communication

Network Technology:

10/100/1000Base-T
Physical Characteristics

Depth:

68.6 mm

Form Factor:

Plug-in Card

Height:

119.4 mm


Weight (Approximate):

34 g

Width:

17.8 mm
