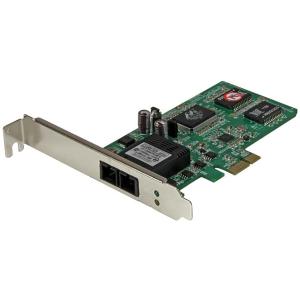

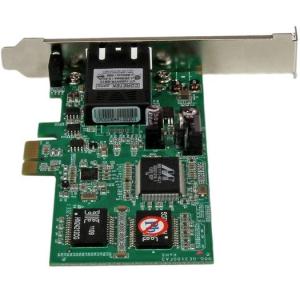

Startech PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m PEX1000MMSC2

Features

Click to view full size

Click to view full size

Click to view full size

pex1000mmsc2 fiber card network gigabit image 2

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

PEX1000MMSC2

Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network

Maximum fiber distance of 550m
Supports Full/Half-duplex Auto-Negotiation
Includes low-profile/half-height installation bracket

The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multimode SC fiber port to your computer or server through an available PCI Express slot.

Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling.

With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.

Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Fiber network infrastructure is reliable and secure, with no electromagnetic interference and less data corruption, through a direct fiber-to-desktop connection
Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design

Applications

Ideal for reliable and secure setups - a direct fiber connection means no electromagnetic interference, which can be a problem with copper-based network cards
Perfect for remote embedded industrial monitoring systems, and high-speed video surveillance
Provide full Gigabit bandwidth to a remote terminal over long distances, extends a network connection further than typical copper cabling

Warranty Information
Warranty	2 Years
Hardware
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Realtek - RTL8168E Marvell - 88E1111B1
Industry Standards	IEEE802.3z 1000BASE-SX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1
Interface	Fiber Ethernet
Ports	1
Performance
Buffer Size	48 KB
Compatible Networks	1000 Mbps (1 Gbps)
Full Duplex Support	Yes
Maximum Data Transfer Rate	2000 Mbps (2 Gbps) - Full-Duplex
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	1 - Fiber Optic SC Duplex Female
Software
OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X® 10.5 to 10.9 Linux 2.4.x to 4.4.x LTS Versions only Microsoft Hyper-V®
Special Notes / Requirements
Note	Not compatible with 10/100 Mbps
Indicators
LED Indicators	1 - Link (Green)
	1 - Activity (Yellow)
Power
Power Consumption (In Watts)	3.2W Max
Environmental
Humidity	5~95% RH (Non-Condensing)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Product Height	4.6 in [118 mm]
Product Length	4.7 in [120 mm]
Product Weight	2.3 oz [66 g]
Product Width	0.7 in [18 mm]
Packaging Information
Shipping (Package) Weight	7.3 oz [208 g]
What's in the Box
Included in Package	1 - 1 Port PCI Express Gigabit Fiber Network Card
	1 - Low Profile Bracket
	1 - Driver CD
	1 - Instruction Manual

PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - PCIe GbE Fiber Optic Network Card - Fiber Gigabit Ethernet Card - Fiber NIC Network Adapter

Brand Name: StarTech.com

Device Supported: Computer

Form Factor: Plug-in Card

Host Interface: PCI Express x1

Network Technology: 1000Base-SX

Number of SC Ports: 1

Product Type: Gigabit Ethernet Card

Total Number of Ports: 1

Basic
Brand Name:	StarTech.com
Device Supported:	Computer
Form Factor:	Plug-in Card
Host Interface:	PCI Express x1
Network Technology:	1000Base-SX
Number of SC Ports:	1
Product Type:	Gigabit Ethernet Card
Total Number of Ports:	1

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	PEX1000MMSC2
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	1 Port PCI Express Gigabit Fiber Network Card
Product Type:	Gigabit Ethernet Card

Interfaces/Ports
Host Interface:	PCI Express x1
Number of SC Ports:	1
Total Number of Ports:	1

Media & Performance
Media Type Supported:	Optical Fiber

Miscellaneous
Device Supported:	Computer
Environmentally Friendly:	Yes
System Requirements:	Windows 10

Network & Communication
Network Technology:	1000Base-SX

Physical Characteristics
Depth:	116.8 mm
Form Factor:	Plug-in Card
Height:	116.8 mm
Thickness:	17.8 mm
Weight (Approximate):	65.2 g

Information

SKU/Item No 537262

Vendor Part No PEX1000MMSC2

UPC/EAN Number 065030857703
