Startech USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - White USB31000SPTW

Features

usb31000sptw gigabit card network adapter

Click to view full size

Click to view full size

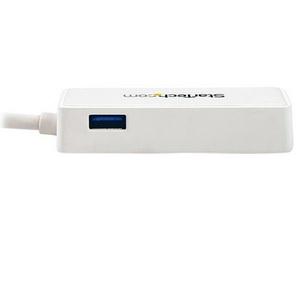

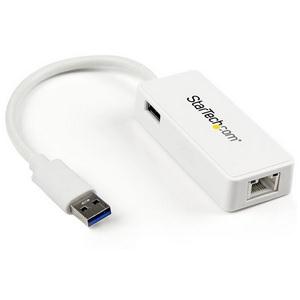

(Pictures are For Illustration Purposes Only)

Startech's MPN:

USB31000SPTW

Add a Gigabit Ethernet port and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port

Gigabit Ethernet port through a USB 3.0 / 2.0 connection
Integrated USB 3.0 pass-through port
IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible

The USB31000SPTW USB 3.0 to Gigabit Ethernet Adapter lets you add a Gigabit network port to your Macbook® or Ultrabook™ computer through a USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with other peripherals. The RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.

An ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC leverages the 5 Gbps speed of USB 3.0 to provide full gigabit bandwidth and also offers backward compatibility with USB 2.0 systems (speed limited by USB bus).

The adapter supports features such as IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation with 802.3x flow control and VLAN tagging are also supported, making this an efficient and full-featured USB network adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Full Gigabit bandwidth support through a USB 3.0 host connection
Conserve available USB 3.0 ports with USB pass-through
Take the adapter anywhere with a portable, USB-powered design

Applications

Add Gigabit Ethernet capabilities to a desktop or laptop
Replacement for a failed built-in Gigabit Ethernet port on a laptop

Warranty Information
Warranty	2 Years
Hardware
Bus Type	USB 3.0
Chipset ID	ASIX - AX88179 VIA - VL811
Industry Standards	IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
Interface	RJ45 (Gigabit Ethernet)
Ports	1
USB Pass-Through	Yes
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Jumbo Frame Support	4K max.
Max Distance	100 m / 330 ft
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet - Full-Duplex)
Type and Rate	USB 3.0 - 5 Gbit/s
Connector(s)
Connector Type(s)	1 - RJ-45 Female
	1 - USB Type-A (9 pin) USB 3.0 Female
	1 - USB Type-A (9 pin) USB 3.0 Male
Software
OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.6 to 10.12 - VLAN tagging is currently not supported in Mac OS Linux Kernel 2.6.25 to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements	Available USB Port
Indicators
LED Indicators	1 - 10/100 Link/Activity (Green)
	1 - Gigabit Link/Activity (Amber)
Power
Power Source	USB-Powered
Environmental
Humidity	5~85% RH
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Cable Length	6.1 in [155 mm]
Color	White
Enclosure Type	Plastic
Form Factor	Attached Cable
Product Height	0.7 in [17 mm]
Product Length	5 in [126 mm]
Product Weight	1.5 oz [43 g]
Product Width	1.4 in [35 mm]
Packaging Information
Shipping (Package) Weight	4.5 oz [128 g]
What's in the Box
Included in Package	1 - USB 3.0 Network Adapter
	1 - Driver CD
	1 - Instruction Manual

USB 3.0 to Gigabit Ethernet Adapter NIC with USB Port (White) - USB 3.0 NIC - 10/100/1000 Mbps USB 3.0 LAN Adapter - Gigabit External Network Card - USB Network Card

Brand Name: StarTech.com

Device Supported: Notebook

Form Factor: Desktop

Host Interface: USB

Network Technology: 10/100/1000Base-T

Number of Network (RJ-45) Ports: 1

Product Type: Gigabit Ethernet Card

Total Number of Ports: 1

Basic
Brand Name:	StarTech.com
Device Supported:	Notebook
Form Factor:	Desktop
Host Interface:	USB
Network Technology:	10/100/1000Base-T
Number of Network (RJ-45) Ports:	1
Product Type:	Gigabit Ethernet Card
Total Number of Ports:	1

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	USB31000SPTW
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - White
Product Type:	Gigabit Ethernet Card

Interfaces/Ports
Ethernet AUI:	No
Host Interface:	USB
Network (Rj-45):	Yes
Number of Network (RJ-45) Ports:	1
PoE (RJ-45) Port:	No
Serial Port:	No
Total Number of Ports:	1
USB:	No
XJACK:	No

Media & Performance
Media Type Supported:	Twisted Pair
Network Technology:	10/100/1000Base-T

Miscellaneous
Device Supported:	Notebook
Form Factor:	Desktop
Platform Supported:	PC

Network & Communication
Network Technology:	10/100/1000Base-T

Network
Network Technology:	10/100/1000Base-T

Physical Characteristics
Depth:	81.3 mm
Form Factor:	Desktop
Height:	17.8 mm
Platform Supported:	PC
Weight (Approximate):	51 g
Width:	35.6 mm

Power Description
PoE (RJ-45) Port:	No

Product Information
Device Supported:	Notebook
Form Factor:	Desktop
Packaged Quantity:	1
Platform Supported:	PC
Width:	35.6 mm

Technical Information
Device Supported:	Notebook
Host Interface:	USB
Media Type Supported:	Twisted Pair
Number of Network (RJ-45) Ports:	1
Platform Supported:	PC
USB:	No

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 537253

Vendor Part No USB31000SPTW

UPC/EAN Number 065030851909
