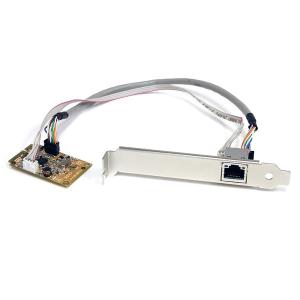

Startech Mini PCI Express Gigabit Ethernet Network Adapter NIC Card ST1000SMPEX

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

ST1000SMPEX

Add a Gigabit RJ45 port through a Mini PCI Express slot

One 10/100/1000Mbps compatible RJ-45 Ethernet port
Fully complaint with IEEE 802.3, 802.3u, and 802.3ab specifications for 10/100/1000 Mbps connections
Jumbo Frame support up to 9k

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.

Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
Backed by a StarTech.com 2-year warranty and free lifetime technical support

Applications

Add a Gigabit networking port to a small form factor mini-ITX system with a mini PCI Express slot
Add a Gigabit networking port to a Mini-ITX system through mini PCIe instead of taking up the full PCIe slot
Replacement for a failed built-in Gigabit Ethernet port

Warranty Information
Warranty	2 Years
Hardware
Bus Type	Mini PCI Express
Card Type	Embedded
Chipset ID	Realtek - RTL8111E
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface	RJ45 (Gigabit Ethernet)
Ports	1
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
MTBF	482765 Hours
Promiscuous Mode	Yes
Connector(s)
Connector Type(s)	1 - Mini PCI Express x1 (52 pin) Male
External Ports	1 - RJ-45 Female
Software
OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.4.x and 10.5.x Linux 2.4.x to 4.4.x LTS Versions Only
Special Notes / Requirements
System and Cable Requirements	Available mini PCI Express slot and expansion card slot
Indicators
LED Indicators	1 - Activity
	1 - Link
Environmental
Humidity	5% ~ 95% RH
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Product Height	0.3 in [8 mm]
Product Length	2 in [51 mm]
Product Weight	0.2 oz [6 g]
Product Width	1.2 in [30 mm]
Packaging Information
Package Quantity	1
Shipping (Package) Weight	5.3 oz [150 g]
What's in the Box
Included in Package	1 - Mini PCIe Card
	1 - RJ45 Daughter Board
	1 - Low Profile Bracket
	1 - Driver CD
	1 - Instruction Manual

Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

Brand Name: StarTech.com

Form Factor: Plug-in Card

Host Interface: PCI Express

Network Technology: 10/100/1000Base-T

Number of Network (RJ-45) Ports: 1

Product Type: Gigabit Ethernet Card

Total Number of Ports: 1

Basic
Brand Name:	StarTech.com
Form Factor:	Plug-in Card
Host Interface:	PCI Express
Network Technology:	10/100/1000Base-T
Number of Network (RJ-45) Ports:	1
Product Type:	Gigabit Ethernet Card
Total Number of Ports:	1

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	ST1000SMPEX
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Package Contents:	Mini PCI Express Gigabit Ethernet Network Adapter NIC Card 1 x RJ45 Daughter Board 1 x Low Profle Installation Bracket 1 x Driver CD 1 x Instruction Manual
Packaged Quantity:	1
Product Name:	Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
Product Type:	Gigabit Ethernet Card

Interfaces/Ports
Host Interface:	PCI Express
Network (Rj-45):	Yes
Number of Network (RJ-45) Ports:	1
Total Number of Ports:	1

Media & Performance
Network Technology:	10/100/1000Base-T

Miscellaneous
Additional Information:	Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage Backed by a StarTech.com 2-year warranty and free lifetime technical support
Form Factor:	Plug-in Card
Package Contents:	Mini PCI Express Gigabit Ethernet Network Adapter NIC Card 1 x RJ45 Daughter Board 1 x Low Profle Installation Bracket 1 x Driver CD 1 x Instruction Manual
System Requirements:	Windows 10

Network & Communication
Network Technology:	10/100/1000Base-T

Network
Network Technology:	10/100/1000Base-T

Physical Characteristics
Card Height:	Low-profile
Form Factor:	Plug-in Card
Height:	30 mm
Thickness:	4.1 mm
Weight (Approximate):	150 g
Width:	51.1 mm

Product Information
Form Factor:	Plug-in Card
Packaged Quantity:	1
Thickness:	4.1 mm
Width:	51.1 mm

Technical Information
Host Interface:	PCI Express
Number of Network (RJ-45) Ports:	1

Warranty
Additional Warranty Information:	Free lifetime technical support.
Limited Warranty:	2 Year

Information

SKU/Item No 537243

Vendor Part No ST1000SMPEX

UPC/EAN Number 065030846554
